固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

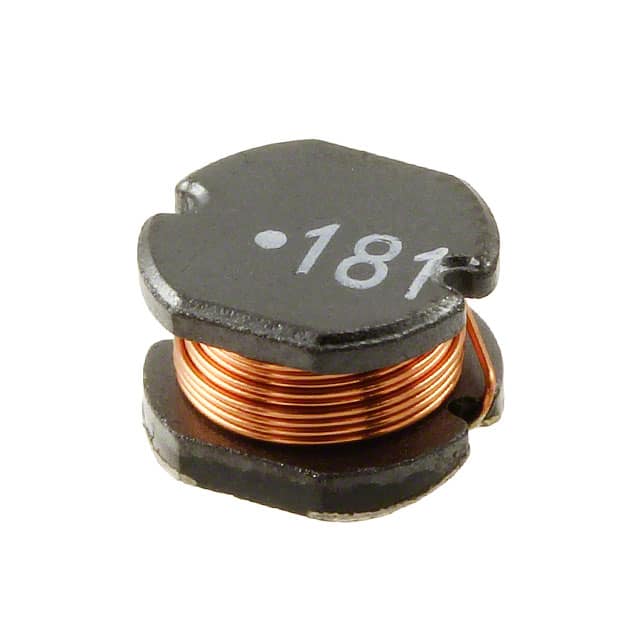

744775218FIXED IND 180UH 550MA 710MOHM SM Würth Elektronik |
372 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 550 mA | 570mA | Unshielded | 710mOhm Max | - | 5.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744771003FIXED IND 3.5UH 9.25A 8 MOHM SMD Würth Elektronik |
369 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±20% | 9.25 A | 9A | Shielded | 8mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
784775082FIXED IND 8.2UH 3.2A 29 MOHM SMD Würth Elektronik |
313 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 3.2 A | 3.2A | Unshielded | 29mOhm Max | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775168FIXED IND 68UH 990MA 280MOHM SMD Würth Elektronik |
293 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 990 mA | 1.05A | Unshielded | 280mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

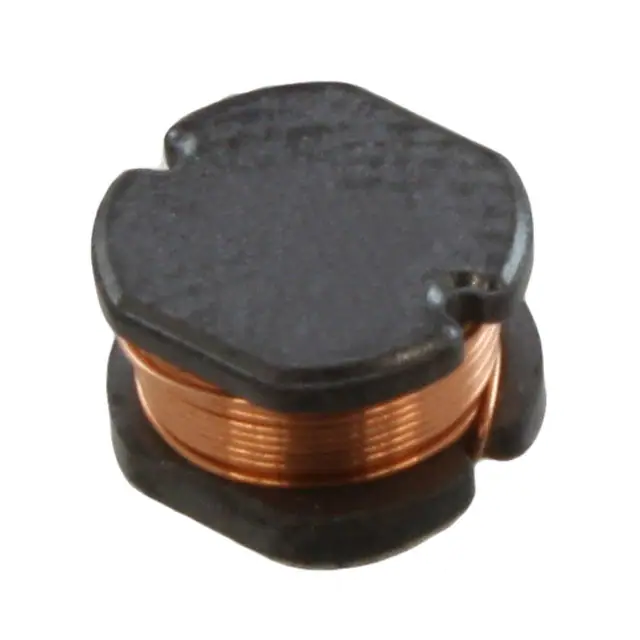

744775233FIXED IND 330UH 430MA 1.26OHM SM Würth Elektronik |
283 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 430 mA | 480mA | Unshielded | 1.26Ohm Max | - | 4.2MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775233FIXED IND 330UH 430MA 1.26OHM SM Würth Elektronik |
255 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 430 mA | 480mA | Unshielded | 1.26Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744775330FIXED IND 3MH 240MA 10 OHM SMD Würth Elektronik |
248 |
|
规格书 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 mH | ±10% | 240 mA | 120mA | Unshielded | 10Ohm Max | - | 900kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.217" (5.50mm) |
|
7447715003FIXED IND 3.3UH 5.9A 13 MOHM SMD Würth Elektronik |
150 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.9 A | 7.1A | Shielded | 13mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
74454115FIXED IND 15UH 1.7A 0.085OHM SMD Würth Elektronik |
564 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±20% | 1.7 A | 3A | Shielded | 85mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

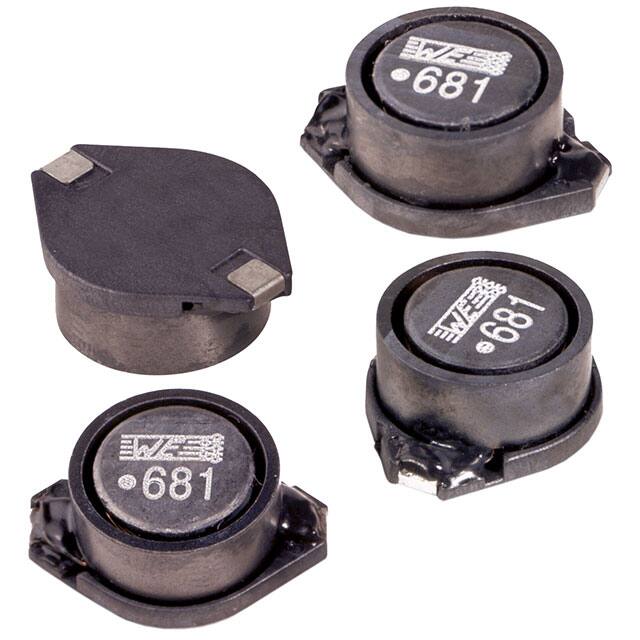

74454133FIXED IND 33UH 1.2A 0.16OHM SMD Würth Elektronik |
519 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±15% | 1.2 A | 1.8A | Shielded | 160mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
