固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784775118FIXED IND 18UH 1.89A 100MOHM SMD Würth Elektronik |
482 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.89 A | 2.14A | Unshielded | 100mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744775227FIXED IND 270UH 470MA 1.11OHM SM Würth Elektronik |
477 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 470 mA | 510mA | Unshielded | 1.11Ohm Max | - | 4.7MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
7447715906FIXED IND 600NH 9.5A 5.5MOHM SMD Würth Elektronik |
466 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 600 nH | ±30% | 9.5 A | 19A | Shielded | 5.5mOhm Max | - | 160MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
784775115FIXED IND 15UH 1.93A 90 MOHM SMD Würth Elektronik |
466 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.93 A | 2.2A | Unshielded | 90mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
744775156FIXED IND 56UH 1.04A 240MOHM SMD Würth Elektronik |
458 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.04 A | 1.14A | Unshielded | 240mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775127FIXED IND 27UH 1.48A 120MOHM SMD Würth Elektronik |
450 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.48 A | 1.62A | Unshielded | 120mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
744775139FIXED IND 39UH 1.25A 160MOHM SMD Würth Elektronik |
428 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 1.25 A | 1.33A | Unshielded | 160mOhm Max | - | 12.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744775360FIXED IND 6MH 180MA 18 OHM SMD Würth Elektronik |
425 |
|
规格书 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 mH | ±10% | 180 mA | 90mA | Unshielded | 18Ohm Max | - | 600kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.217" (5.50mm) |
|
|
744775115FIXED IND 15UH 1.93A 90 MOHM SMD Würth Elektronik |
425 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.93 A | 2.23A | Unshielded | 90mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

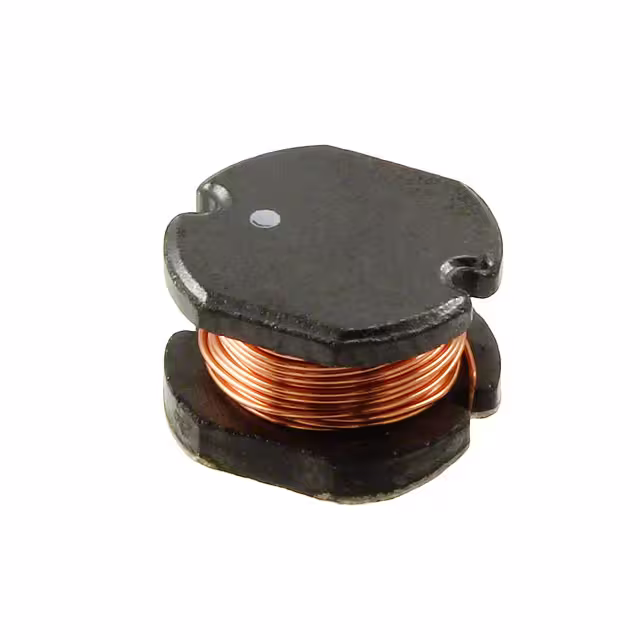

744775239FIXED IND 390UH 380MA 1.77OHM SM Würth Elektronik |
417 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 380 mA | 430mA | Unshielded | 1.77Ohm Max | - | 3.9MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
