固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
768775256FIXED IND 560UH 410MA 2.08OHM SM Würth Elektronik |
483 |
|
规格书 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 410 mA | 410mA | Unshielded | 2.08Ohm Max | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744776360FIXED IND 6MH 230MA 14 OHM SMD Würth Elektronik |
326 |
|
规格书 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 mH | ±10% | 230 mA | 270mA | Unshielded | 14Ohm Max | - | 570kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.354" W (10.20mm x 9.00mm) | 0.272" (6.90mm) |
|
|
744776347FIXED IND 4.7MH 250MA 12 OHM SMD Würth Elektronik |
314 |
|
规格书 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 250 mA | 300mA | Unshielded | 12Ohm Max | - | 650kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.354" W (10.20mm x 9.00mm) | 0.272" (6.90mm) |
|
7443330033FIXED IND 330NH 21.5A 1.6MOHM SM Würth Elektronik |
682 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 21.5 A | 55A | Shielded | 1.6mOhm Max | - | 250MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
744777910WFIXED IND 10UH 1.9A 62 MOHM SMD Würth Elektronik |
488 |
|
规格书 |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.9 A | 2.6A | Shielded | 62mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
74451015FIXED IND 1.5UH 2.8A 0.045OHM SM Würth Elektronik |
460 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1.5 µH | ±20% | 2.8 A | 1.13A | Shielded | 45mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7443330022FIXED IND 220NH 21.5A 1.6MOHM SM Würth Elektronik |
400 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 21.5 A | 60A | Shielded | 1.6mOhm Max | - | 300MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

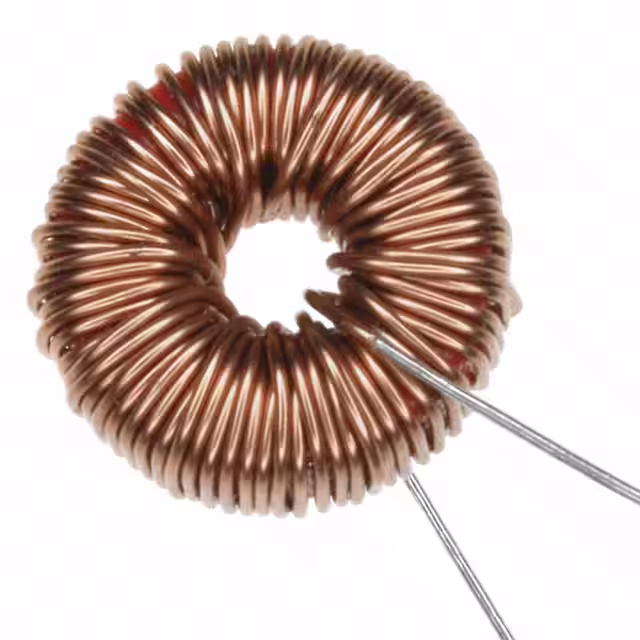

7447036FIXED IND 220UH 800MA 220MOHM TH Würth Elektronik |
371 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 220 µH | ±20% | 800 mA | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.551" Dia x 0.295" W (14.00mm x 7.50mm) | - |
|

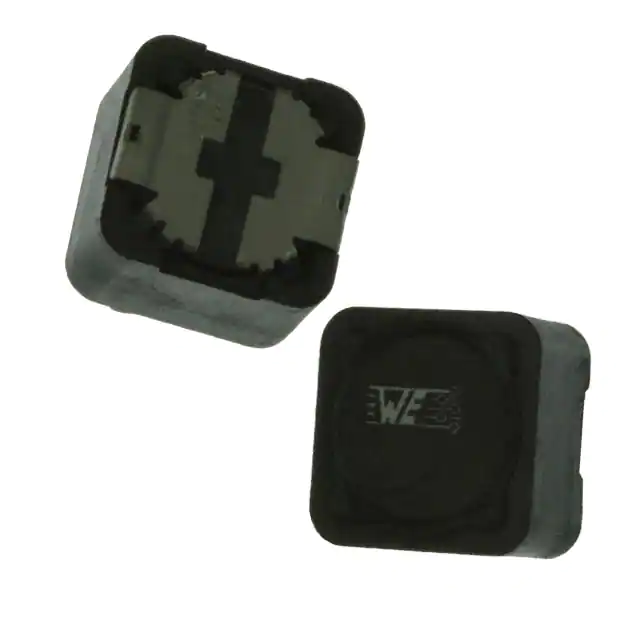

744770282FIXED IND 820UH 600MA 1.64OHM SM Würth Elektronik |
260 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 600 mA | 800mA | Shielded | 1.64Ohm Max | - | 2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

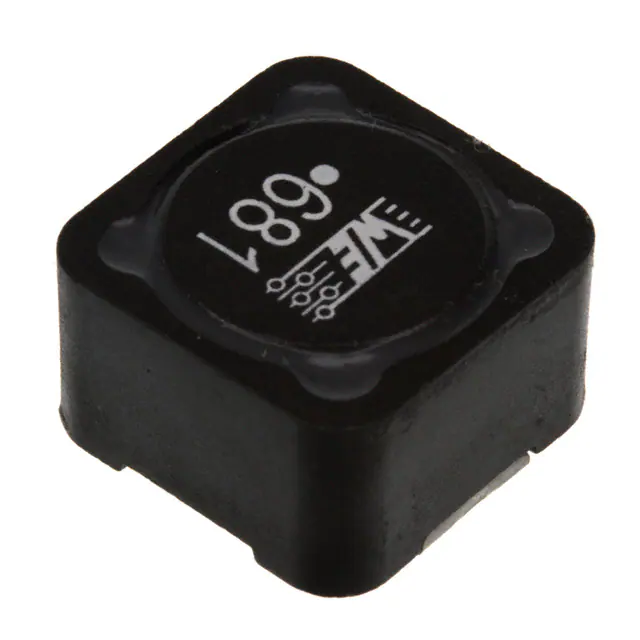

744770268FIXED IND 680UH 700MA 1.46OHM SM Würth Elektronik |
185 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 700 mA | 800mA | Shielded | 1.46Ohm Max | - | 2.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
