固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784775133FIXED IND 33UH 1.35A 130MOHM SMD Würth Elektronik |
500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.35 A | 1.47A | Unshielded | 130mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775139FIXED IND 39UH 1.25A 160MOHM SMD Würth Elektronik |
500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.25 A | 1.33A | Unshielded | 160mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775147FIXED IND 47UH 1.17A 180MOHM SMD Würth Elektronik |
500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.17 A | 1.24A | Unshielded | 180mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775222FIXED IND 220UH 510MA 960MOHM SM Würth Elektronik |
500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 510 mA | 560mA | Unshielded | 960mOhm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775247FIXED IND 470UH 360MA 1.96OHM SM Würth Elektronik |
500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 360 mA | 380mA | Unshielded | 1.96Ohm Max | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

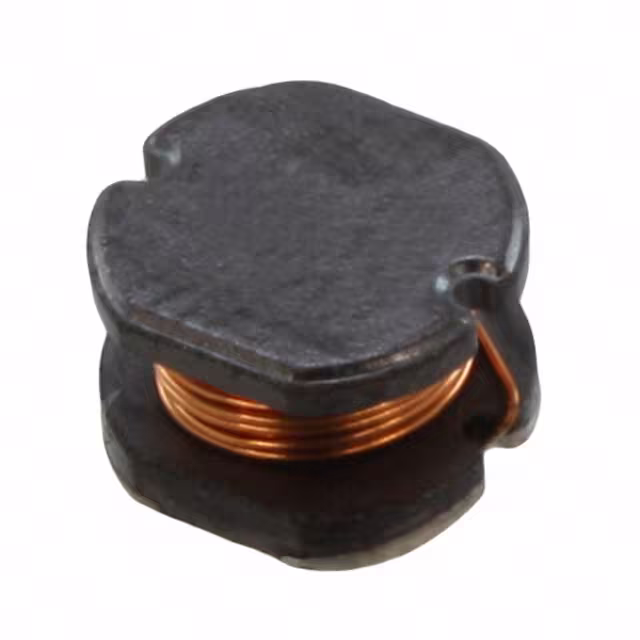

744775215FIXED IND 150UH 600MA 640MOHM SM Würth Elektronik |
498 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 600 mA | 710mA | Unshielded | 640mOhm Max | - | 6.2MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775056FIXED IND 5.6UH 4A 22 MOHM SMD Würth Elektronik |
495 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 4 A | 4A | Unshielded | 22mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775047FIXED IND 4.7UH 4.5A 19 MOHM SMD Würth Elektronik |
494 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.5 A | 4.5A | Unshielded | 19mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775227FIXED IND 270UH 470MA 1.11OHM SM Würth Elektronik |
493 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 470 mA | 510mA | Unshielded | 1.11Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775112FIXED IND 12UH 2.18A 80 MOHM SMD Würth Elektronik |
485 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.18 A | 2.23A | Unshielded | 80mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
