固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 0.118 Height.jpg)
|
744089410022FIXED IND 220NH 4.5A 15 MOHM SMD Würth Elektronik |
334 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±30% | 4.5 A | 9.5A | Shielded | 15mOhm Max | - | 230MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408941470FIXED IND 47UH 400MA 1.133OHM SM Würth Elektronik |
320 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 400 mA | 750mA | Shielded | 1.133Ohm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408942820FIXED IND 82UH 460MA 1.11OHM SMD Würth Elektronik |
267 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 460 mA | 680mA | Shielded | 1.11Ohm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
74437346056FIXED IND 5.6UH 3.6A 0.048OHM SM Würth Elektronik |
989 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 3.6 A | 12.1A | Shielded | 48mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.122" (3.10mm) |
|
7447713820FIXED IND 82UH 950MA 419MOHM SMD Würth Elektronik |
981 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 950 mA | 1.5A | Shielded | 419mOhm Max | - | 8.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
|
7447713015FIXED IND 1.5UH 6.2A 16 MOHM SMD Würth Elektronik |
927 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.2 A | 9.5A | Shielded | 16mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
|
7447713121FIXED IND 120UH 850MA 598MOHM SM Würth Elektronik |
771 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 850 mA | 1.25A | Shielded | 598mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
7447713331FIXED IND 330UH 480MA 1.5OHM SMD Würth Elektronik |
598 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 480 mA | 730mA | Shielded | 1.5Ohm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
7447713471FIXED IND 470UH 420MA 2.2OHM SMD Würth Elektronik |
482 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 420 mA | 650mA | Shielded | 2.2Ohm Max | - | 3.4MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|

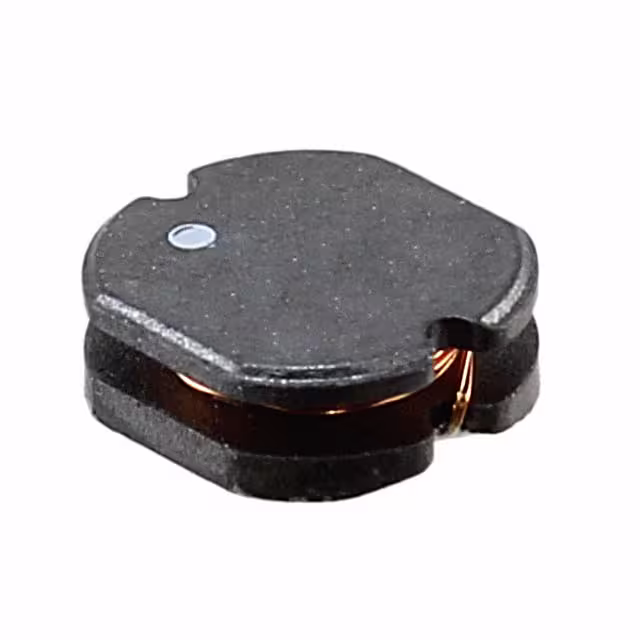

7447745330FIXED IND 33UH 900MA 520MOHM SMD Würth Elektronik |
2,833 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 900 mA | 900mA | Unshielded | 520mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
