固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

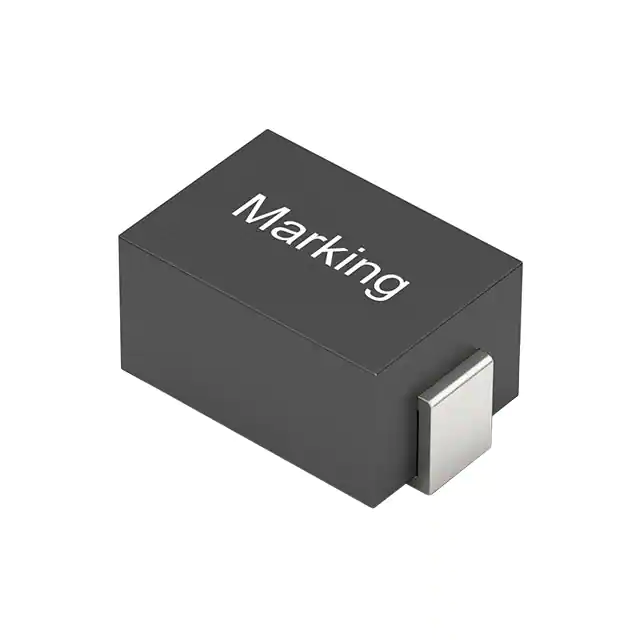

74434035007FIXED IND 70NH 29A 0.00038OHM SM Würth Elektronik |
1,665 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 70 nH | ±20% | 29 A | 18.1A | Shielded | 0.38mOhm | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4035 | 0.163" L x 0.122" W (4.15mm x 3.10mm) | 0.138" (3.50mm) |
|
7447779218FIXED IND 180UH 510MA 980MOHM SM Würth Elektronik |
2,852 |
|
规格书 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 510 mA | 560mA | Shielded | 980mOhm Max | - | 5.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779118FIXED IND 18UH 1.5A 91 MOHM SMD Würth Elektronik |
2,790 |
|
规格书 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.5 A | 2.05A | Shielded | 91mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779008FIXED IND 8.2UH 2.7A 53 MOHM SMD Würth Elektronik |
2,364 |
|
规格书 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 2.7 A | 3A | Shielded | 53mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
74477730FIXED IND 1MH 200MA 6 OHM SMD Würth Elektronik |
2,071 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 200 mA | 250mA | Shielded | 6Ohm Max | - | 2.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777270FIXED IND 270UH 430MA 1.64OHM SM Würth Elektronik |
1,888 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 430 mA | 480mA | Shielded | 1.64Ohm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

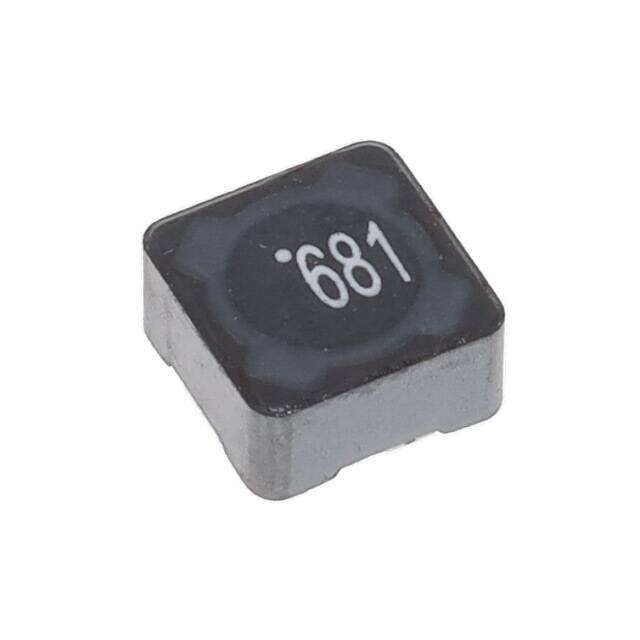

74477726FIXED IND 680UH 230MA 4.63OHM SM Würth Elektronik |
962 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 230 mA | 280mA | Shielded | 4.63Ohm Max | - | 2.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779239FIXED IND 390UH 380MA 2.85OHM SM Würth Elektronik |
817 |
|
规格书 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 380 mA | 420mA | Shielded | 2.85Ohm Max | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777212FIXED IND 120UH 670MA 660MOHM SM Würth Elektronik |
586 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 670 mA | 700mA | Shielded | 660mOhm Max | - | 6.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
768775268FIXED IND 680UH 380MA 2.4OHM SMD Würth Elektronik |
488 |
|
规格书 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 380 mA | 380mA | Unshielded | 2.4Ohm Max | - | 2.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
