场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR7540PBFMOSFET N-CH 60V 90A DPAK Infineon Technologies |
0 | - |
|
规格书 |
StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 6V, 10V | 4.8mOhm @ 66A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4360 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRFR7546PBFMOSFET N-CH 60V 56A DPAK Infineon Technologies |
0 | - |
|
规格书 |
StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 56A (Tc) | 6V, 10V | 7.9mOhm @ 43A, 10V | 3.7V @ 100µA | 87 nC @ 10 V | ±20V | 3020 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|

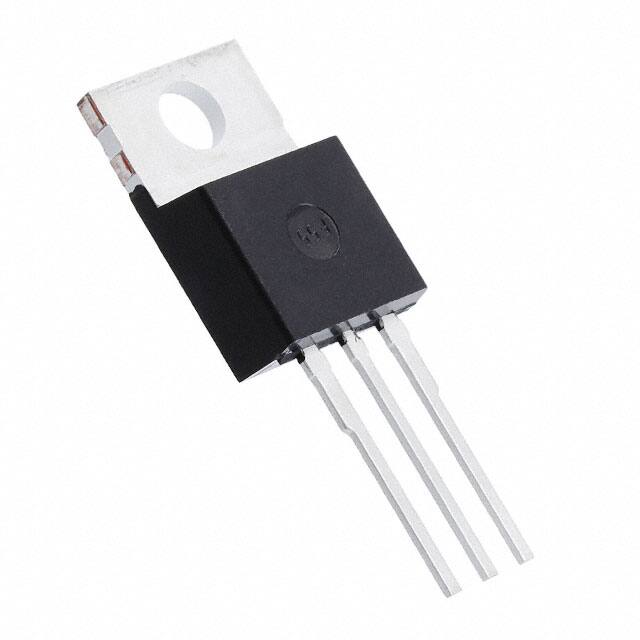

SPP16N50C3XKSA1MOSFET N-CH 560V 16A TO220-3 Infineon Technologies |
0 | - |
|
规格书 |
CoolMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 560 V | 16A (Tc) | 10V | 280mOhm @ 10A, 10V | 3.9V @ 675µA | 66 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-111 |
|
IRFS7430PBFMOSFET N-CH 40V 195A D2PAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFS7430-7PPBFMOSFET N-CH 40V 240A D2PAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET®, StrongIRFET™ | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 6V, 10V | 0.75mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 13975 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
|
IRFS7434PBFMOSFET N-CH 40V 195A D2PAK Infineon Technologies |
0 | - |
|
规格书 |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.6mOhm @ 100A, 10V | 3.9V @ 250µA | 324 nC @ 10 V | ±20V | 10820 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IPD80R2K8CEBTMA1MOSFET N-CH 800V 1.9A TO252-3 Infineon Technologies |
0 | - |
|
规格书 |
CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.9A (Tc) | 10V | 2.8Ohm @ 1.1A, 10V | 3.9V @ 120µA | 12 nC @ 10 V | ±20V | 290 pF @ 100 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
IPD80R1K4CEBTMA1MOSFET N-CH 800V 3.9A TO252-3 Infineon Technologies |
0 | - |
|
规格书 |
CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 800 V | 3.9A (Tc) | 10V | 1.4Ohm @ 2.3A, 10V | 3.9V @ 240µA | 23 nC @ 10 V | ±20V | 570 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
IPD80R1K0CEBTMA1MOSFET N-CH 800V 5.7A TO252-3 Infineon Technologies |
0 | - |
|
规格书 |
CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.7A (Tc) | 10V | 950mOhm @ 3.6A, 10V | 3.9V @ 250µA | 31 nC @ 10 V | ±20V | 785 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
IPU80R2K8CEBKMA1MOSFET N-CH 800V 1.9A TO251-3 Infineon Technologies |
0 | - |
|
规格书 |
CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.9A (Tc) | 10V | 2.8Ohm @ 1.1A, 10V | 3.9V @ 120µA | 12 nC @ 10 V | ±20V | 290 pF @ 100 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
