步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD60-3-1378-TMCLPANDRIVE NEMA24, 48V, 2.1NM Analog Devices Inc./Maxim Integrated |
4 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200.0 | 1.8° | ±5% | 297.4 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD86-3-1278-CANOPENPANDRIVE NEMA34, 48V, 7NM Analog Devices Inc./Maxim Integrated |
5 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200.0 | 1.8° | ±5% | 991.28 / 7000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|

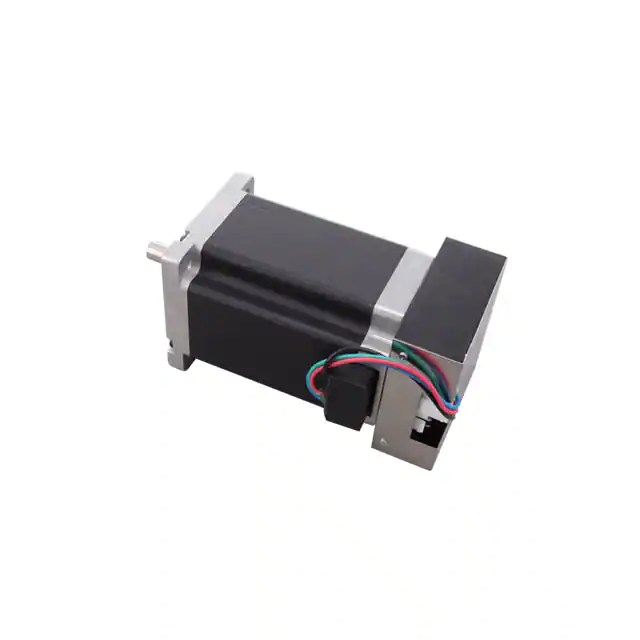

PD60-4-1378-TMCLPANDRIVE NEMA24, 48V, 3.1NM Analog Devices Inc./Maxim Integrated |
5 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200.0 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.5 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD60-4H-1378-TMCLPANDRIVE NEMA24, 48V, 3.1NM Analog Devices Inc./Maxim Integrated |
2 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.1VDC | 9 A | 200.0 | 1.8° | ±5% | 424.93 / 3000 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.15 Ohms | Integrated Controller, Flatted Shaft |
|

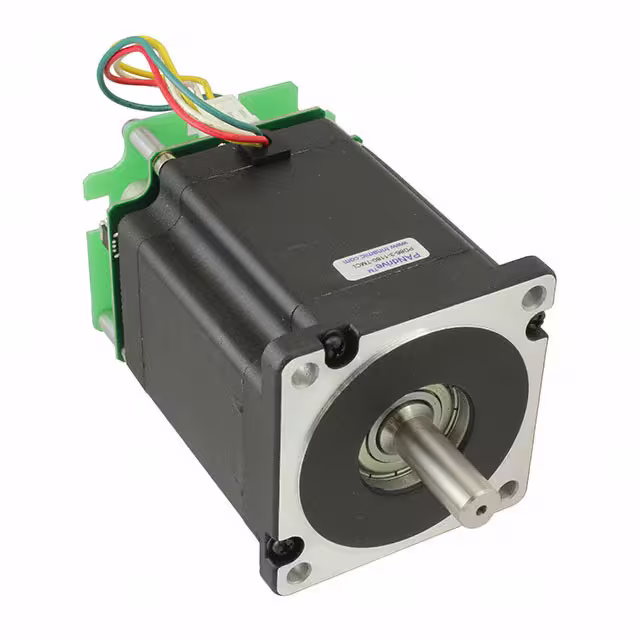

PD86-3-1180-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 48V Analog Devices Inc./Maxim Integrated |
3 |
|
规格书 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 48VDC | 5.5 A | 200.0 | 1.8° | - | 991.28 / 7000 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | 34 | 0.500" (12.70mm) | 1.310" (33.27mm) | 2.740" (69.60mm) | Wire Leads with Connector | - | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD86-3-1378-CANOPENPANDRIVE NEMA34, 48V, 7NM Analog Devices Inc./Maxim Integrated |
5 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200.0 | 1.8° | ±5% | 991.28 / 7000 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD60-4-1378-CANOPENPANDRIVE NEMA24, 48V, 3.1NM Analog Devices Inc./Maxim Integrated |
3 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200.0 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.5 Ohms | Integrated Controller, Flatted Shaft |
|

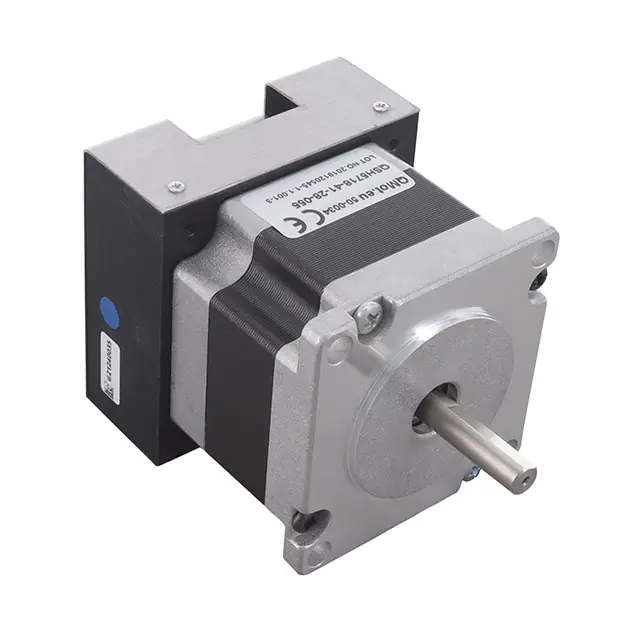

PD57-1-1378-TMCLPANDRIVE NEMA23, 48V, 0.55NM Analog Devices Inc./Maxim Integrated |
4 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200.0 | 1.8° | ±5% | 77.89 / 550 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.7 Ohms | Integrated Controller, Flatted Shaft |
|

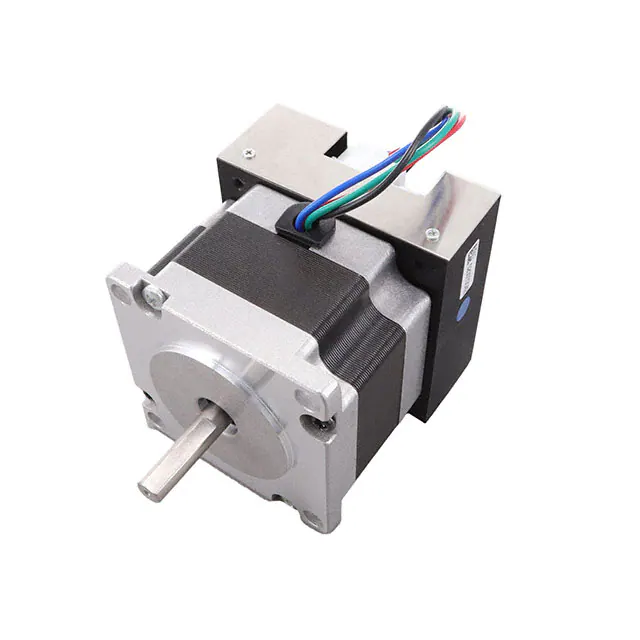

PD57-1-1378-CANOPENPANDRIVE NEMA23, 48V, 0.55NM Analog Devices Inc./Maxim Integrated |
3 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200.0 | 1.8° | ±5% | 77.89 / 550 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|

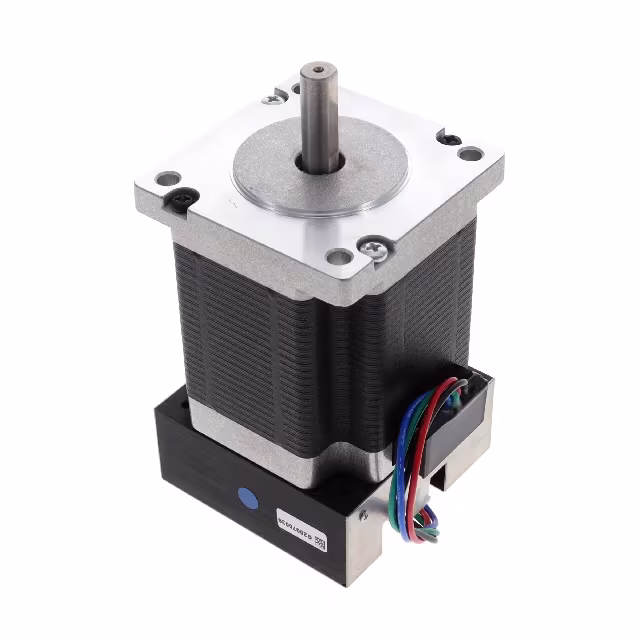

PD60-3-1378-CANOPENPANDRIVE NEMA24, 48V, 2.1NM Analog Devices Inc./Maxim Integrated |
5 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200.0 | 1.8° | ±5% | 297.4 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Flatted Shaft |
