步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

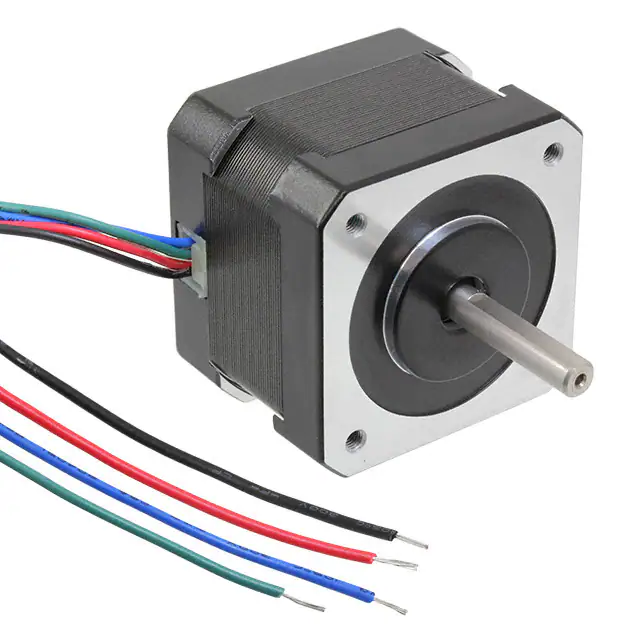

QSH4218-35-10-027STEP MOTOR HYBRID BIPOLAR 5.3V Analog Devices Inc./Maxim Integrated |
159 |
|
规格书 |
QMot QSH4218 | Box | Active | Hybrid | Bipolar | 5.3VDC | 1 A | 200.0 | 1.8° | ±5% | 38.2 / 270 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 50°C | 5.3 Ohms | Flatted Shaft |
|

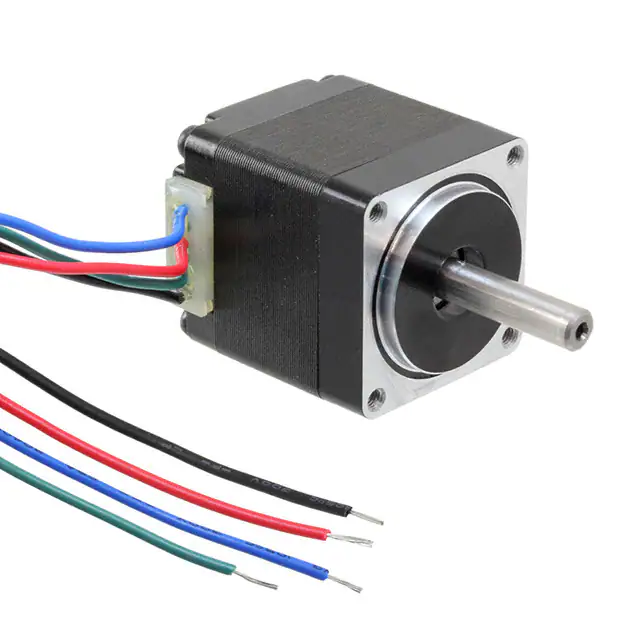

QSH2818-32-07-006STEP MOTOR HYBRID BIPOLAR 3.8V Analog Devices Inc./Maxim Integrated |
87 |
|
规格书 |
QMot QSH2818 | Box | Active | Hybrid | Bipolar | 3.8VDC | 670 mA | 200.0 | 1.8° | ±5% | 8.49 / 60 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.905" (22.98mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | Flatted Shaft |
|

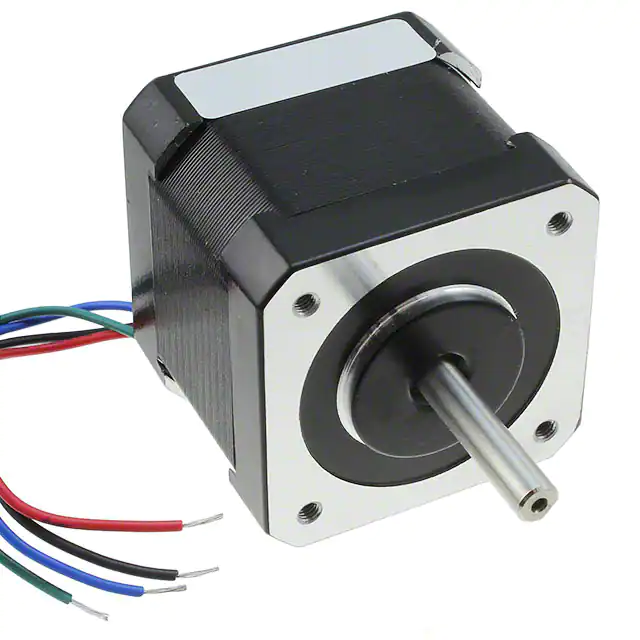

QSH4218-41-10-035STEP MOTOR HYBRID BIPOLAR 4.5V Analog Devices Inc./Maxim Integrated |
44 |
|
规格书 |
QMot QSH4218 | Box | Active | Hybrid | Bipolar | 4.5VDC | 1 A | 200.0 | 1.8° | ±5% | 49.56 / 350 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 50°C | 4.5 Ohms | Flatted Shaft |
|

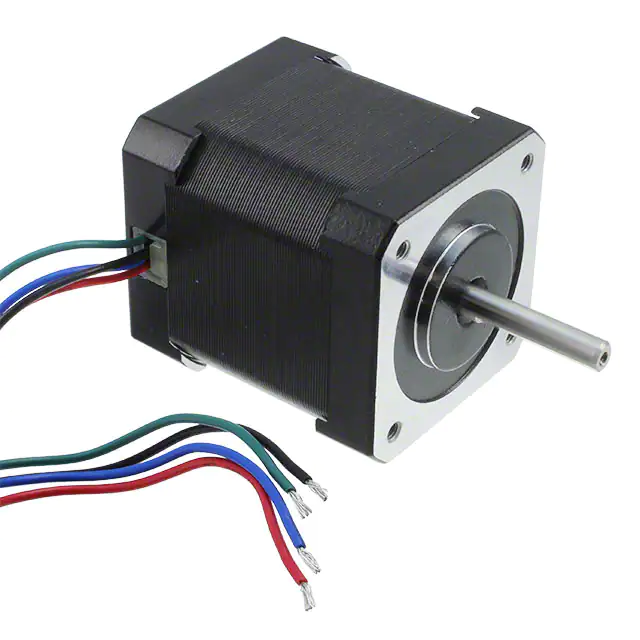

QSH4218-51-10-049STEPPER MOTOR HYBRID BIPOLAR 5V Analog Devices Inc./Maxim Integrated |
199 |
|
规格书 |
QMot QSH4218 | Box | Active | Hybrid | Bipolar | 5VDC | 1 A | 200.0 | 1.8° | ±5% | 69.39 / 490 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms | Flatted Shaft |
|

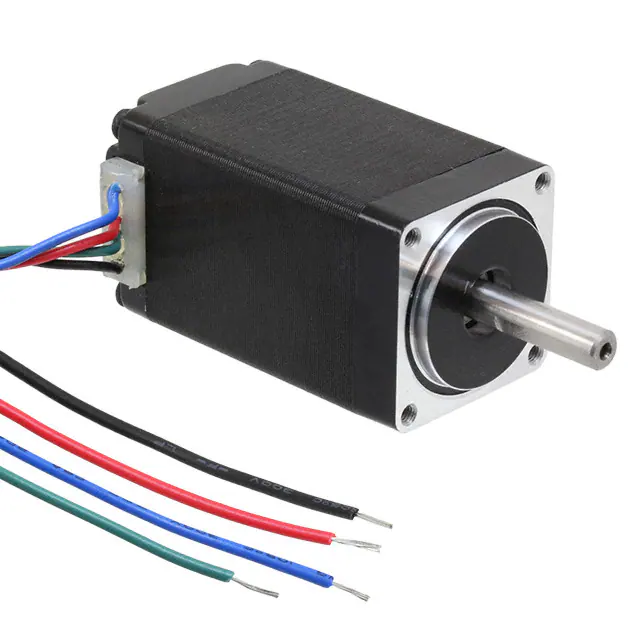

QSH2818-51-07-012STEP MOTOR HYBRID BIPOLAR 6.2V Analog Devices Inc./Maxim Integrated |
203 |
|
规格书 |
QMot QSH2818 | Box | Active | Hybrid | Bipolar | 6.2VDC | 670 mA | 200.0 | 1.8° | ±5% | 17 / 120 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.905" (22.98mm) | Wire Leads | -20°C ~ 50°C | 9.2 Ohms | Flatted Shaft |
|

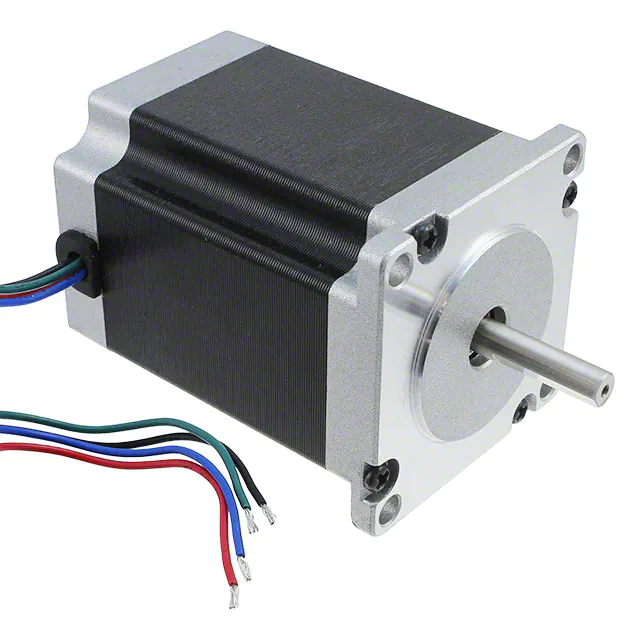

QSH5718-76-28-189STEP MOTOR HYBRID BIPOLAR 3.2V Analog Devices Inc./Maxim Integrated |
40 |
|
规格书 |
QMot QSH5718 | Box | Active | Hybrid | Bipolar | 3.2VDC | 2.8 A | 200.0 | 1.8° | ±5% | 267.64 / 1890 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.13 Ohms | Flatted Shaft |
|

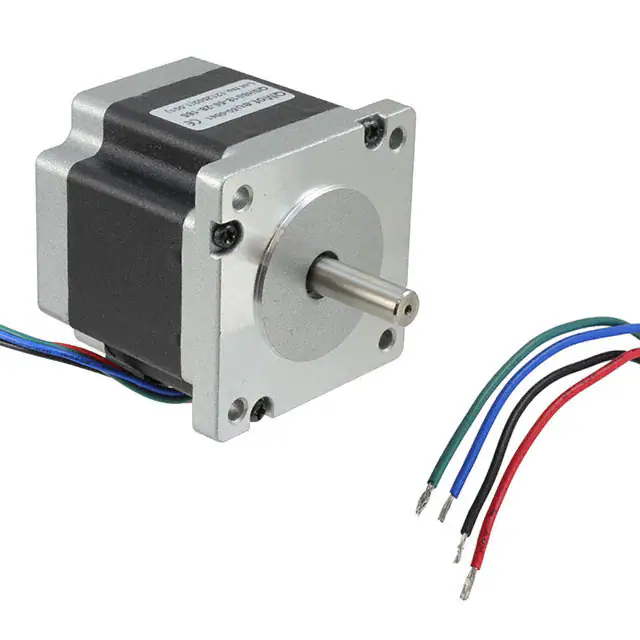

QSH6018-56-28-165STEP MOTOR HYBRID BIPOLAR 2.52V Analog Devices Inc./Maxim Integrated |
51 |
|
规格书 |
QMot QSH6018 | Box | Active | Hybrid | Bipolar | 2.52VDC | 2.8 A | 200.0 | 1.8° | ±5% | 233.66 / 1650 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms | Flatted Shaft |
|

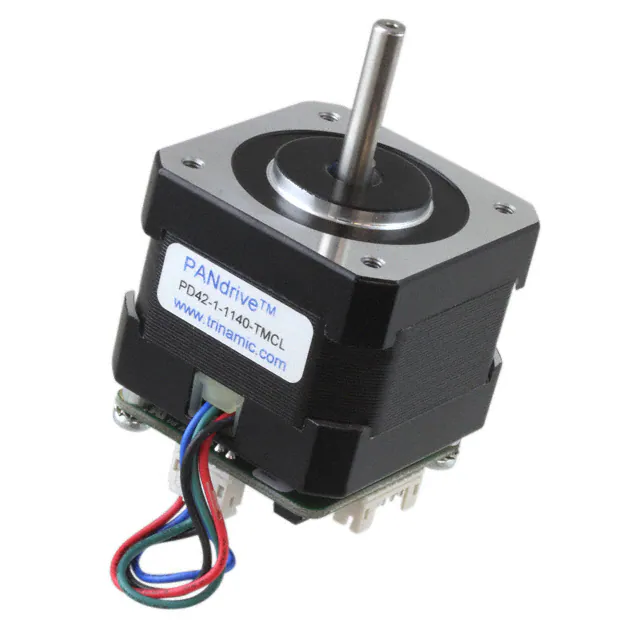

PD42-1-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
275 |
|
规格书 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|
QSH5718-56-28-126STEP MOTOR HYBRID BIPOLAR 2.5V Analog Devices Inc./Maxim Integrated |
34 |
|
规格书 |
QMot QSH5718 | Box | Active | Hybrid | Bipolar | 2.5VDC | 2.8 A | 200.0 | 1.8° | ±5% | 178.43 / 1260 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms | Flatted Shaft |
|

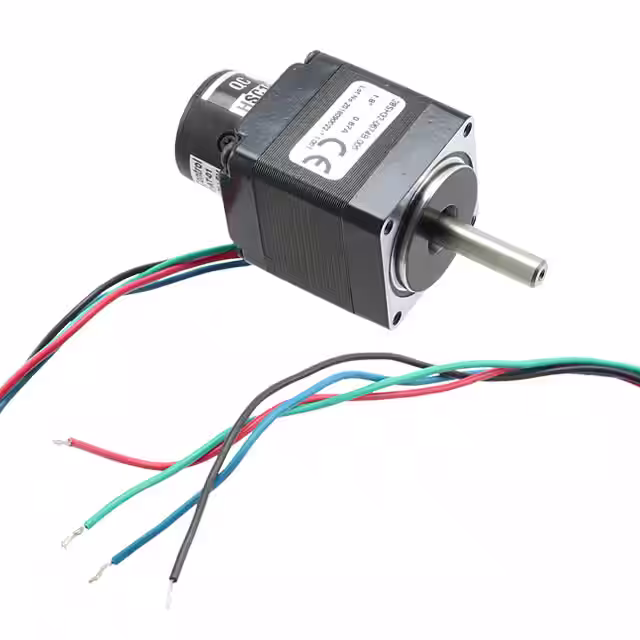

QSH2818-32-07-006-8KSTEP MOTOR HYBRID NEMA11 ENC 819 Analog Devices Inc./Maxim Integrated |
34 |
|
规格书 |
QMot QSH2818 | Bulk | Active | Hybrid | Bipolar | 3.8VDC | 670 mA | 200.0 | 1.8° | ±5% | 8.49 / 60 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | Flatted Shaft |
