步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

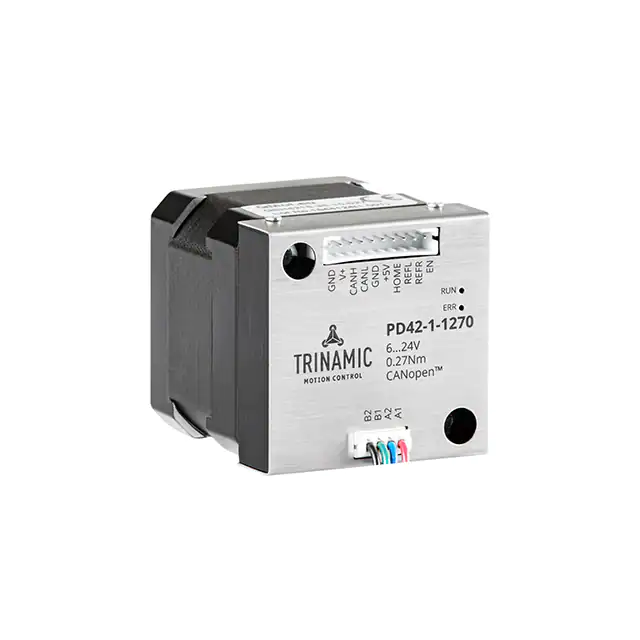

PD42-1-1270-CANOPENPANDRIVE NEMA17, 24V, 38 OZ IN/ Analog Devices Inc./Maxim Integrated |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | - | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 1 Ohms | Integrated Controller, Round Shaft |
|

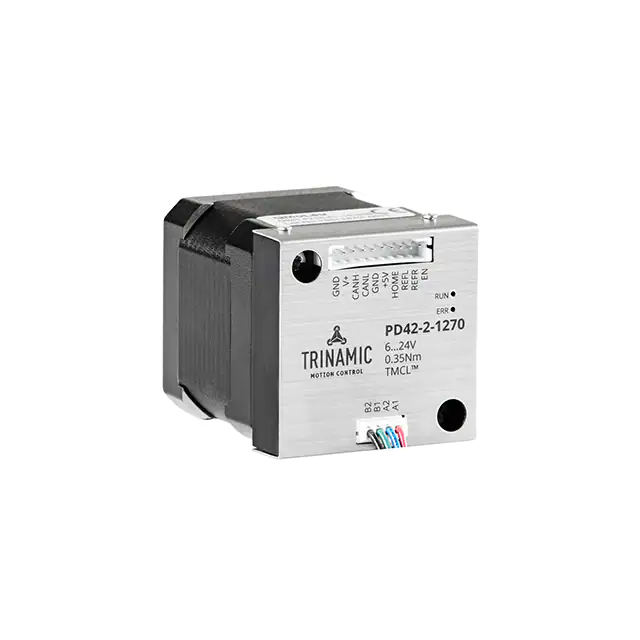

PD42-2-1270-TMCLPANDRIVE NEMA17, 24V, 50 OZ IN/ Analog Devices Inc./Maxim Integrated |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | ±5% | 51 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | - | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Round Shaft |
|

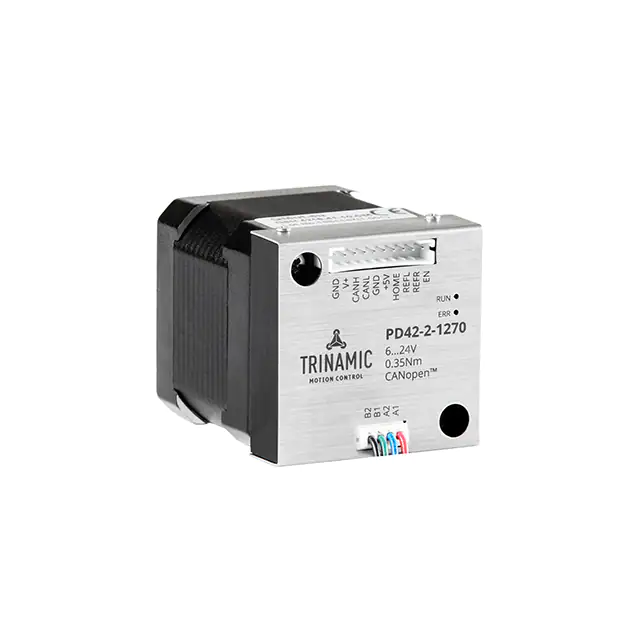

PD42-2-1270-CANOPENPANDRIVE NEMA17, 24V, 50 OZ IN/ Analog Devices Inc./Maxim Integrated |
1 |
|
规格书 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | ±5% | 51 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | - | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Round Shaft |
|
PD57-2-1276-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
1 |
|
规格书 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200.0 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms | Integrated Controller, Flatted Shaft |
|

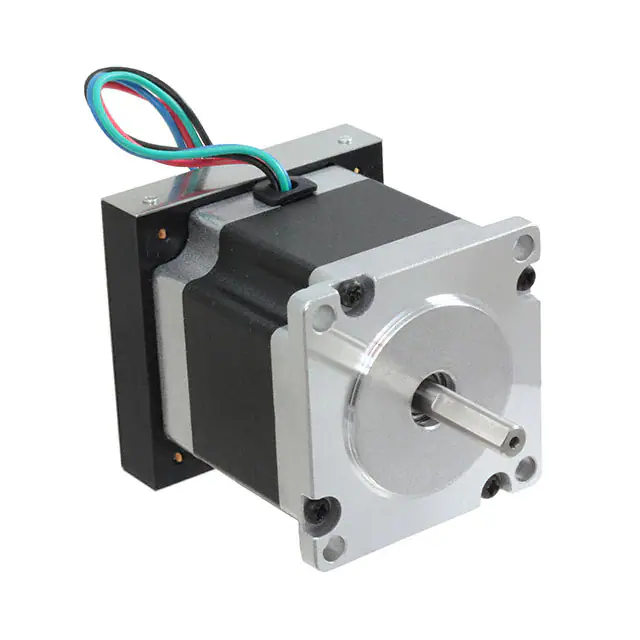

PD57-2-1276-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
0 |
|
规格书 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200.0 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms | Integrated Controller, Flatted Shaft |
.jpg)
|

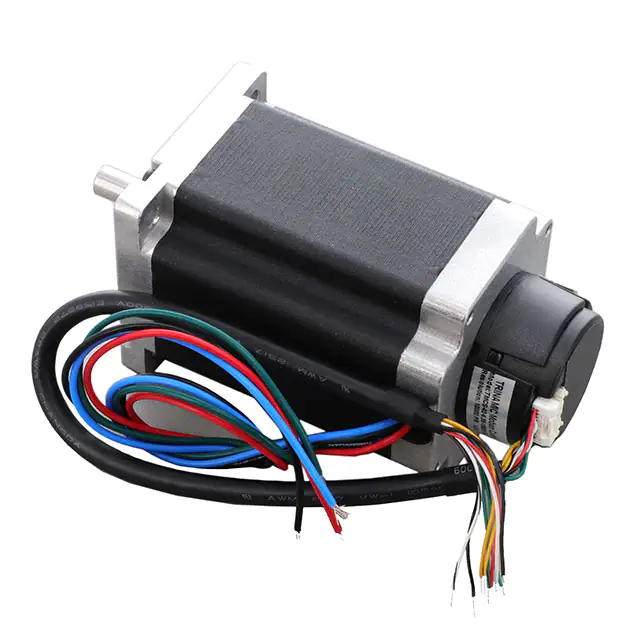

QSH6018-86-90-300-10KSTEP MOTOR HYBRID NEMA24 + ENC Analog Devices Inc./Maxim Integrated |
1 |
|
规格书 |
QMot QSH6018 | Box | Active | Hybrid | Bipolar | 2.1VDC | 9 A | 200.0 | 1.8° | ±5% | 424.93 / 3000 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | - | 0.15 Ohms | Flatted Shaft |
|

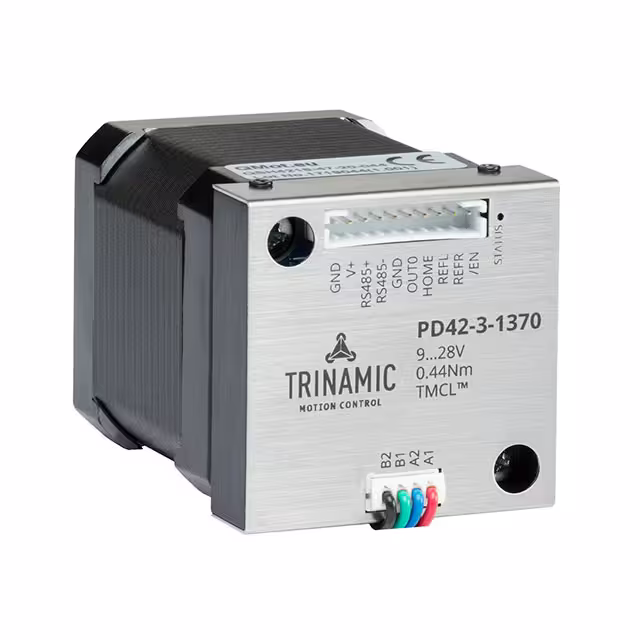

PD42-3-1370-TMCLPANDRIVE NEMA17, 24V, 0.44NM Analog Devices Inc./Maxim Integrated |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.4VDC | 2 A | 200.0 | 1.8° | ±5% | 62.31 / 440 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 1.4 Ohms | Integrated Controller, Flatted Shaft |
|
PD42-4-1240-CANOPENPANDRIVE NEMA17, 24V, 0.7NM Analog Devices Inc./Maxim Integrated |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 4.4VDC | 2 A | 200.0 | 1.8° | ±5% | 99.1 / 700 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 2.3 Ohms | Integrated Controller, Flatted Shaft |
|

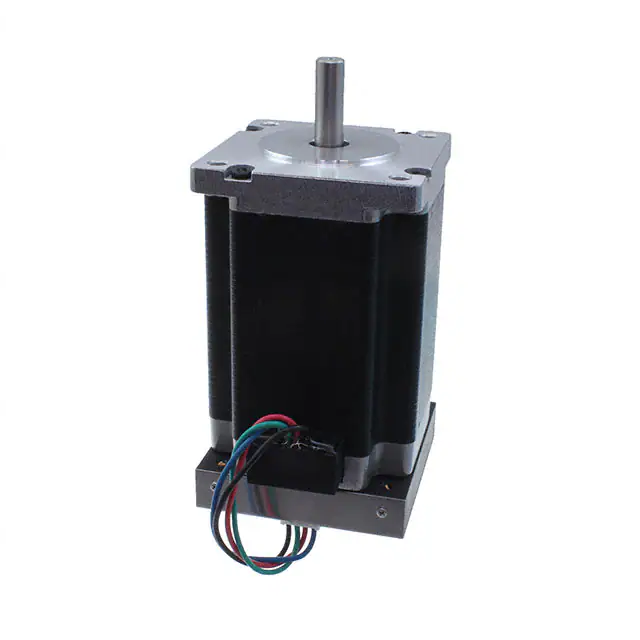

PD60-4-1276-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
1 |
|
规格书 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200.0 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.5 Ohms | Integrated Controller, Flatted Shaft |
|

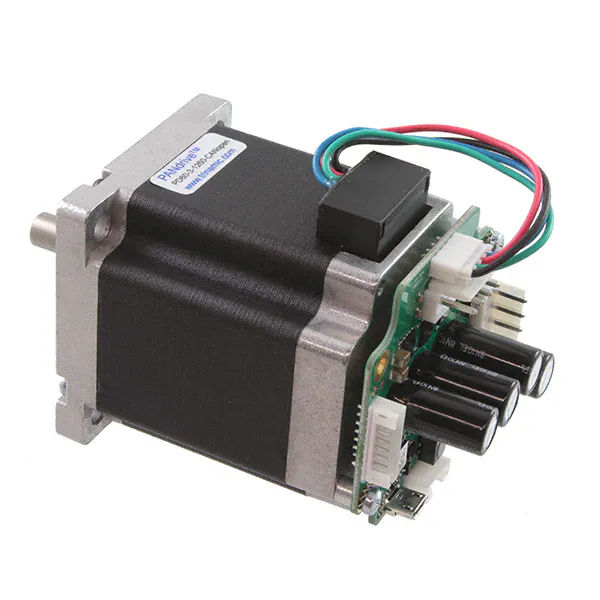

PD60-3-1260-CANOPENPANDRIVE NEMA24, 48V, 2.10NM Analog Devices Inc./Maxim Integrated |
0 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 4.6VDC | 2.8 A | 200.0 | 1.8° | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
