步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

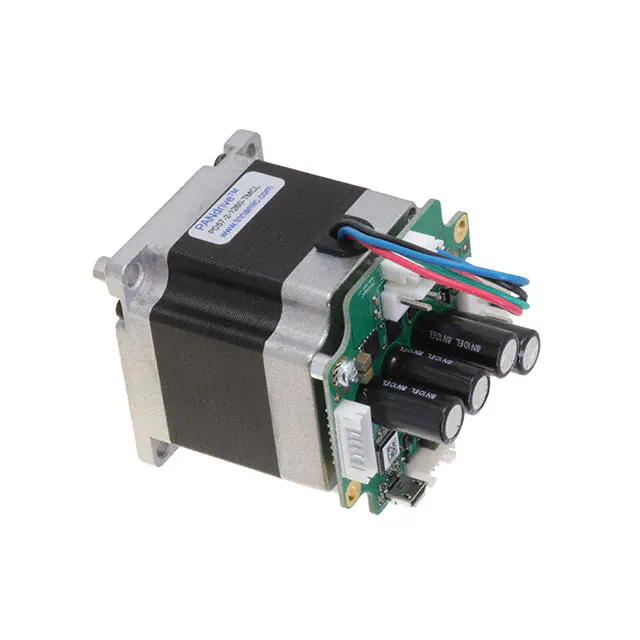

PD57-2-1260-TMCLPANDRIVE NEMA23, 48V, 1.01NM Analog Devices Inc./Maxim Integrated |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200.0 | 1.8° | - | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|

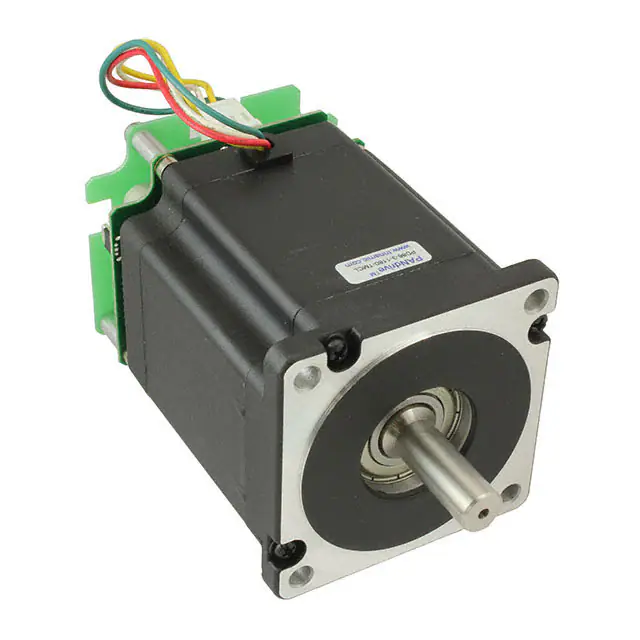

PD86-3-1180-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V Analog Devices Inc./Maxim Integrated |
1 |
|
规格书 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 48VDC | 5.5 A | 200.0 | 1.8° | - | 991.28 / 7000 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | 34 | 0.500" (12.70mm) | 1.310" (33.27mm) | 2.740" (69.60mm) | Wire Leads with Connector | - | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|

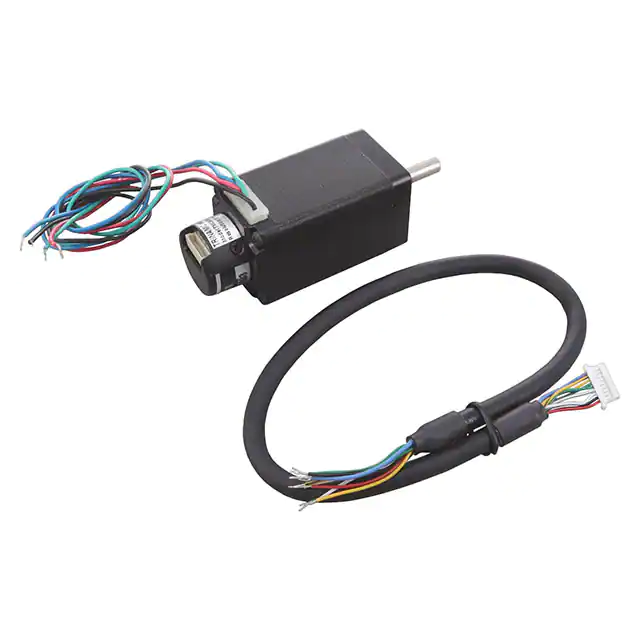

QSH2818-51-07-012-8KSTEP MOTOR HYBRID NEMA11 ENC 819 Analog Devices Inc./Maxim Integrated |
1 |
|
规格书 |
QMot QSH2818 | Bulk | Active | Hybrid | Bipolar | 6.2VDC | 670 mA | 200.0 | 1.8° | ±5% | 17 / 120 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 9.2 Ohms | Flatted Shaft |
|

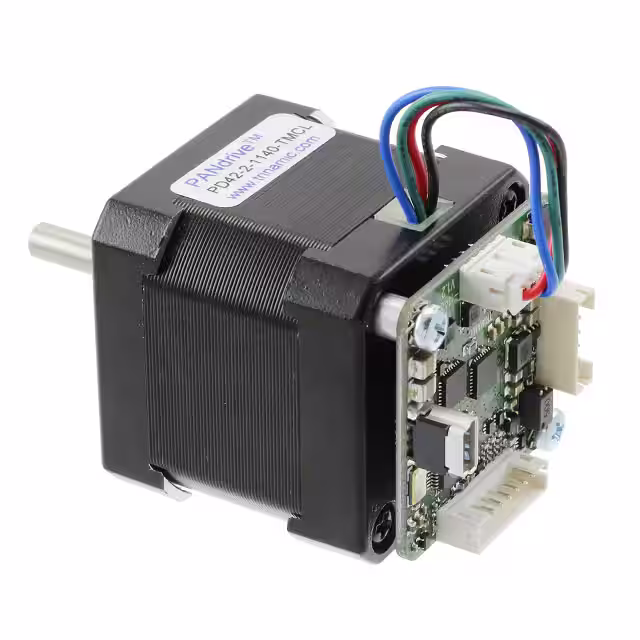

PD42-2-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
0 |
|
规格书 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 51 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|

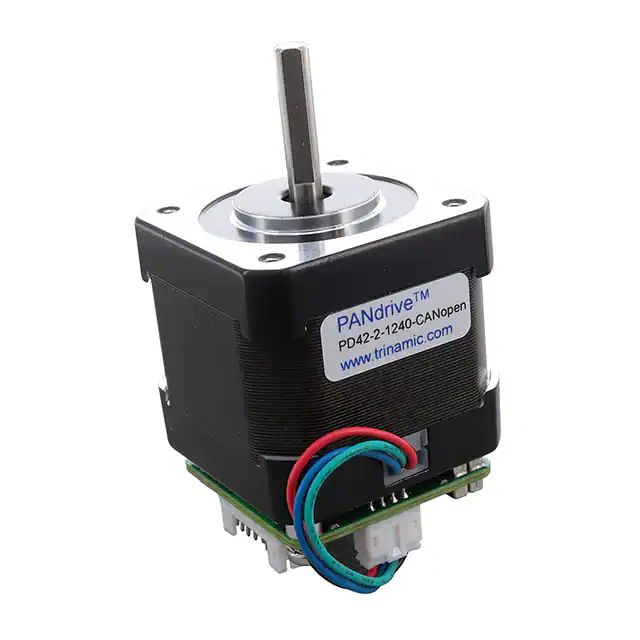

PD42-2-1240-CANOPENPANDRIVE NEMA17, 24V, 0.36NM Analog Devices Inc./Maxim Integrated |
0 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.4VDC | 2 A | 200.0 | 1.8° | ±5% | 50.98 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Flatted Shaft |
|

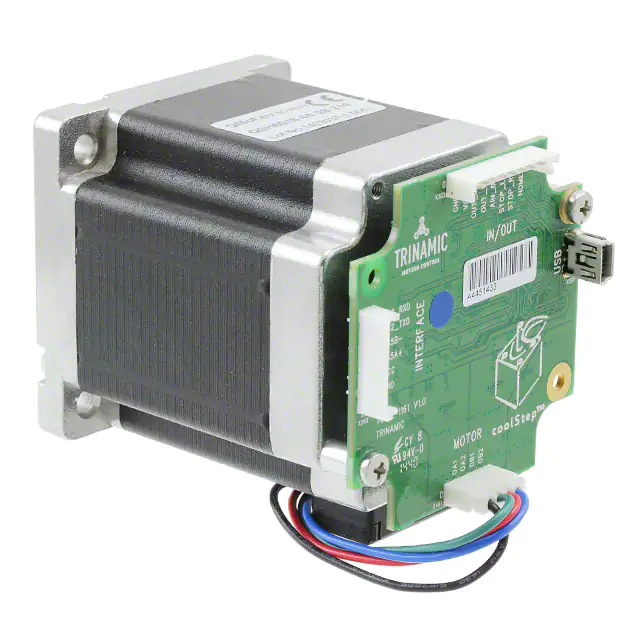

PD60-3-1161STEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
0 |
|
规格书 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200.0 | 1.8° | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|

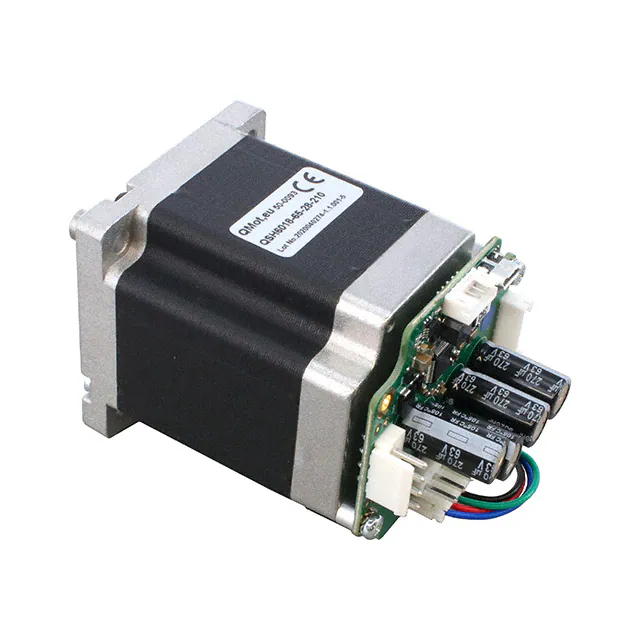

PD60-3-1260-TMCLPANDRIVE NEMA24, 48V, 2.10NM Analog Devices Inc./Maxim Integrated |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 4.6VDC | 2.8 A | 200.0 | 1.8° | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
PD60-4-1260-TMCLPANDRIVE NEMA24, 48V, 3.1NM Analog Devices Inc./Maxim Integrated |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 6.8VDC | 2.8 A | 200.0 | 1.8° | - | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|

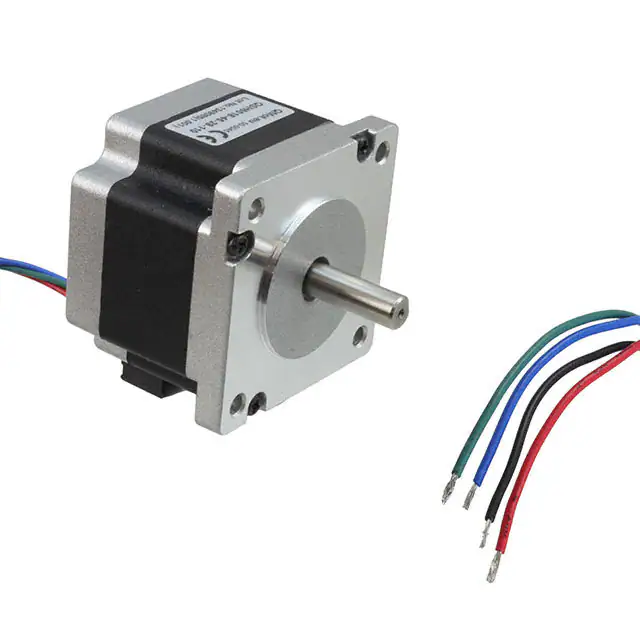

QSH6018-45-28-110STEP MOTOR HYBRID BIPOLAR 2.1V Analog Devices Inc./Maxim Integrated |
0 |
|
规格书 |
QMot QSH6018 | Box | Active | Hybrid | Bipolar | 2.1VDC | 2.8 A | 200.0 | 1.8° | ±5% | 155.77 / 1100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms | Flatted Shaft |
|

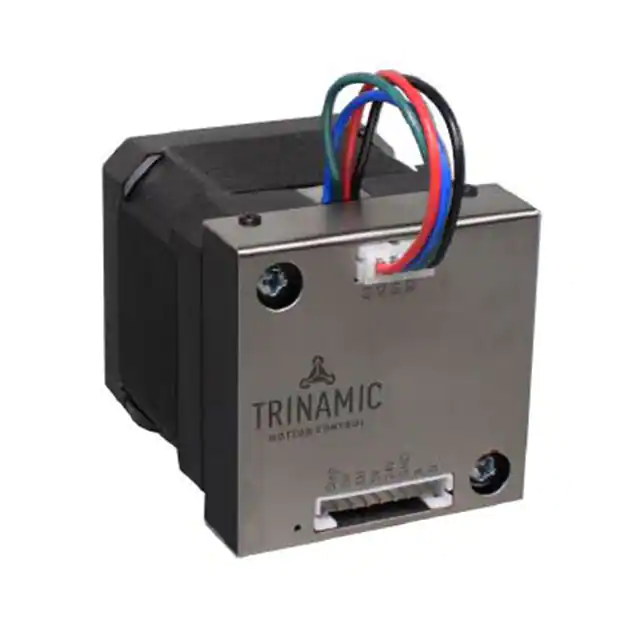

PD42-1-1070STEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
0 |
|
规格书 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | ±5% | 31.2 / 220 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | - | 1.220" (30.99mm) | Connector | -20°C ~ 50°C | 1 Ohms | Integrated Controller, Round Shaft |
