步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

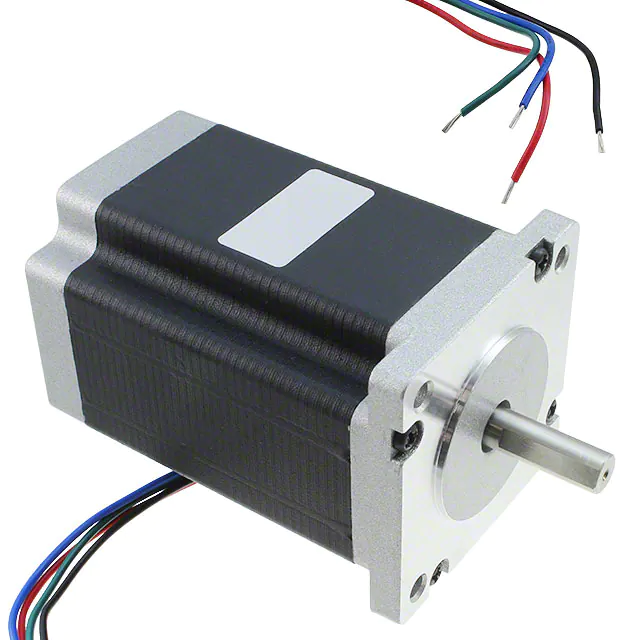

QSH6018-86-28-310STEP MOTOR HYBRID BIPOLAR 4.17V Analog Devices Inc./Maxim Integrated |
12 |
|
规格书 |
QMot QSH6018 | Box | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200.0 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms | Flatted Shaft |
|
QSH5718-51-28-101-10KSTEP MOTOR HYBRID NEMA23 ENC 100 Analog Devices Inc./Maxim Integrated |
6 |
|
- |
QMot QSH5718 | Bulk | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200.0 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.8 Ohms | Flatted Shaft |
|

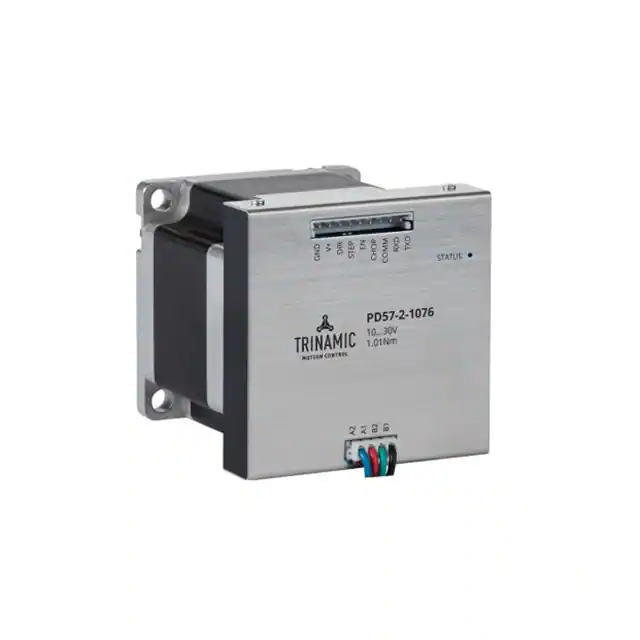

PD57-2-1076STEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
8 |
|
规格书 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200.0 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms | Integrated Controller, Flatted Shaft |
|
QSH5718-76-28-189-10KSTEP MOTOR HYBRID NEMA23 ENC 100 Analog Devices Inc./Maxim Integrated |
6 |
|
- |
QMot QSH5718 | Bulk | Active | Hybrid | Bipolar | 3.2VDC | 2.8 A | 200.0 | 1.8° | ±5% | 267.6 / 1890 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.13 Ohms | Flatted Shaft |
|

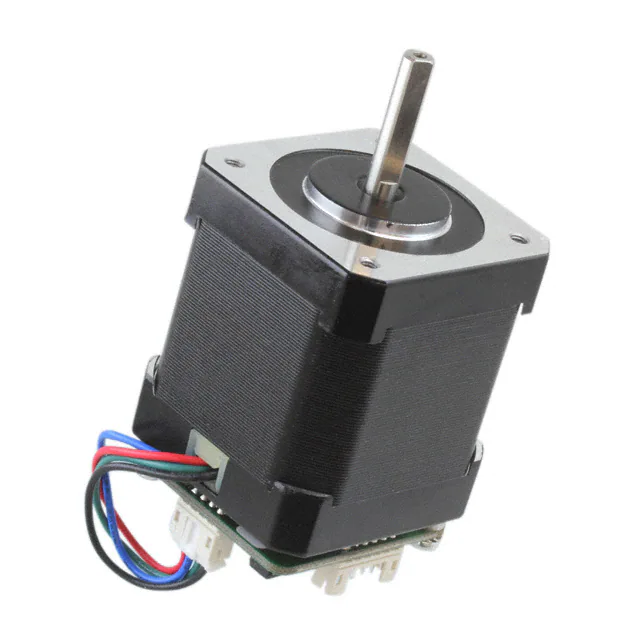

PD42-3-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
5 |
|
规格书 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|

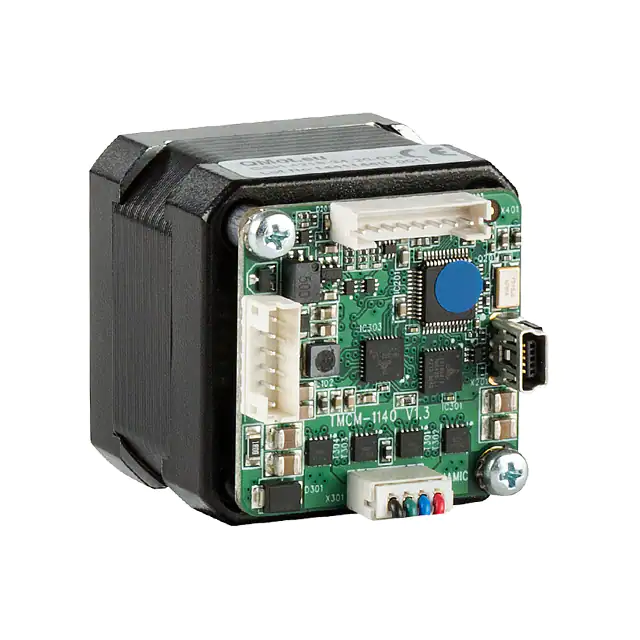

PD42-2-1240-TMCLPANDRIVE NEMA17, 24V, 0.36NM Analog Devices Inc./Maxim Integrated |
2 |
|
规格书 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 50.98 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Flatted Shaft |
|

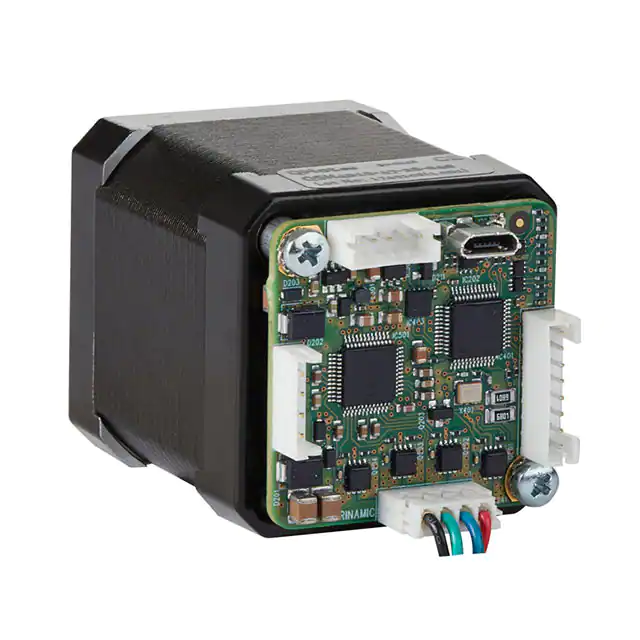

PD42-3-1241-CANOPENPANDRIVE NEMA17, 24V, 0.4NM Analog Devices Inc./Maxim Integrated |
13 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 56.66 / 400 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 0.5 Ohms | Integrated Controller, Flatted Shaft |
|

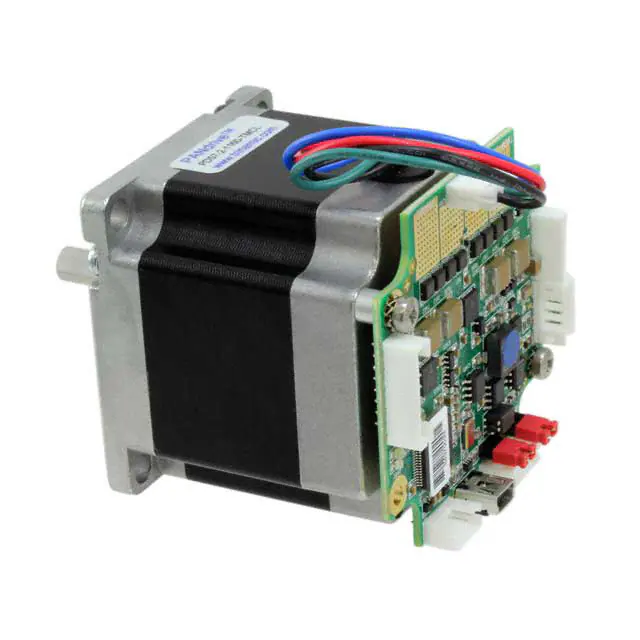

PD57-2-1160-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V Analog Devices Inc./Maxim Integrated |
6 |
|
规格书 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200.0 | 1.8° | - | 143.05 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|

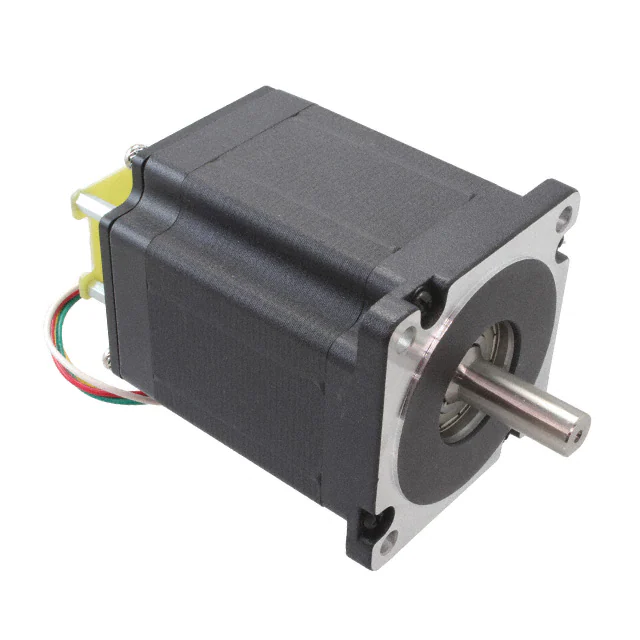

PD86-3-1260-TMCLPANDRIVE NEMA34, 48V, 7.0NM Analog Devices Inc./Maxim Integrated |
8 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 48VDC | 5.5 A | 200.0 | 1.8° | - | 991.28 / 7000 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | 34 | 0.500" (12.70mm) | 1.310" (33.27mm) | 2.740" (69.60mm) | Wire Leads with Connector | - | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
QSH5718-41-28-055STEPPER MOTOR HYBRID BIPOLAR 2V Analog Devices Inc./Maxim Integrated |
3 |
|
规格书 |
QMot QSH5718 | Box | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200.0 | 1.8° | ±5% | 77.89 / 550 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms | Flatted Shaft |
