固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPD1717BA-220MTHT CLASS D IND FOR DIGITAL AMP CODACA |
30 |
|
规格书 |
CPD1717BA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 9 A | 11.9A | Shielded | 17.44mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.760" (19.30mm) |
|
|
CPD1717BA-100MTHT CLASS D IND FOR DIGITAL AMP CODACA |
28 |
|
规格书 |
CPD1717BA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 14 A | 20A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.760" (19.30mm) |
|

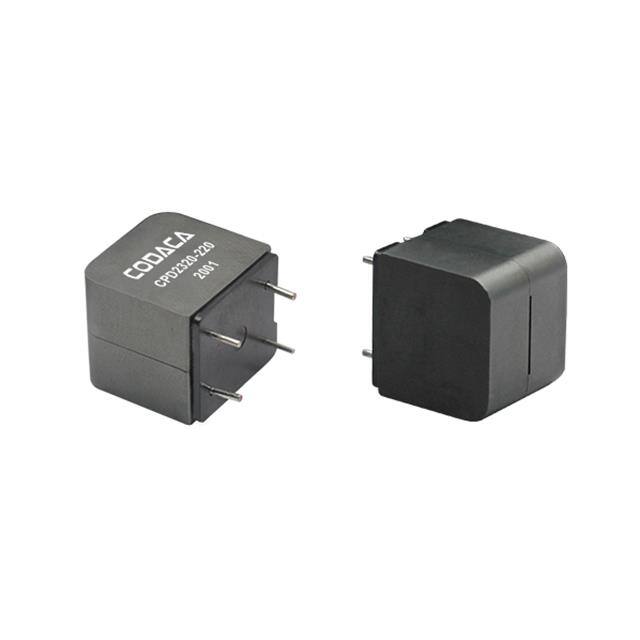

CPD2320-100MTHT CLASS D IND FOR DIGITAL AMP CODACA |
78 |
|
规格书 |
CPD2320 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 14 A | 43A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|
|
CPD2320S-220MTHT CLASS D IND FOR DIGITAL AMP CODACA |
34 |
|
规格书 |
CPD2320S | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 7 A | 32A | Shielded | 28.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|
|
VSRU2714-4R7KAUTOMOTIVE SMD HICURRENT PWR IND CODACA |
70 |
|
规格书 |
VSRU27 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±10% | 37.2 A | 56.4A | Unshielded | 1.67mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.575" (14.60mm) |
|
|
VSRU2715-6R8KAUTOMOTIVE SMD HICURRENT PWR IND CODACA |
61 |
|
规格书 |
VSRU27 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±10% | 35 A | 44.1A | Unshielded | 1.99mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.622" (15.80mm) |
|
|
VSRU2716-100KAUTOMOTIVE SMD HICURRENT PWR IND CODACA |
41 |
|
规格书 |
VSRU27 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±10% | 33.1 A | 34.9A | Unshielded | 2.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.665" (16.90mm) |
|
|
VSRU2711-1R5KAUTOMOTIVE SMD HICURRENT PWR IND CODACA |
79 |
|
规格书 |
VSRU27 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±10% | 54 A | 67A | Unshielded | 0.56mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.469" (11.90mm) |
|
|
CPEX2020A-150MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
47 |
|
规格书 |
CPEX2020A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 26 A | 26A | Shielded | 3.72mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.688" (17.50mm) |
|
|
CPEX2020A-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
50 |
|
规格书 |
CPEX2020A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 30 A | 35A | Shielded | 2.64mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.689" (17.50mm) |
