固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX1670-2R2MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
100 |
|
规格书 |
CSBX1670 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 25 A | 40A | Shielded | 2.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
CSBX1670-3R3MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
95 |
|
规格书 |
CSBX1670 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 23 A | 34A | Shielded | 3.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|

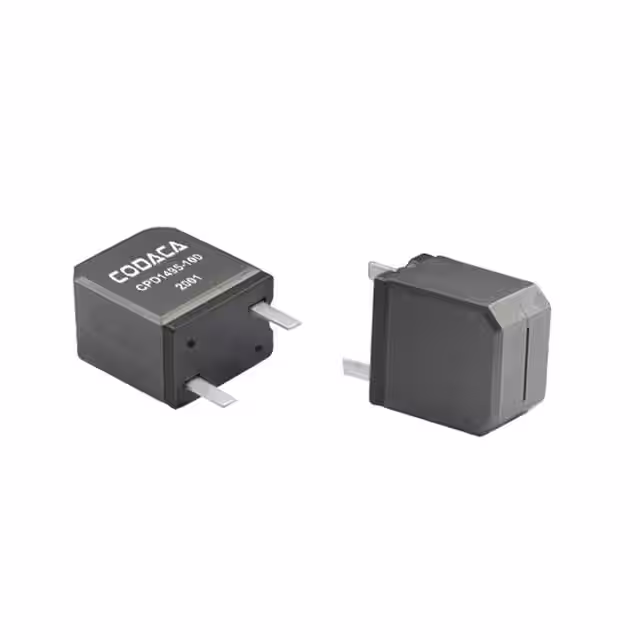

CPD1495-6R8MPOWER INDUCTOR FOR DIGITAL AMP CODACA |
80 |
|
规格书 |
CPD1495 | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CPD1495-120MTHT CLASS D IND FOR DIGITAL AMP CODACA |
74 |
|
规格书 |
CPD1495 | Nonstandard | Tray | Active | Wirewound | Ferrite | 12 µH | ±20% | 10 A | 12.5A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.630" (16.00mm) |
|
|
CPD1495-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
63 |
|
规格书 |
CPD1495 | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 7.3 A | 9.5A | Shielded | 15.7mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.630" (16.00mm) |
|

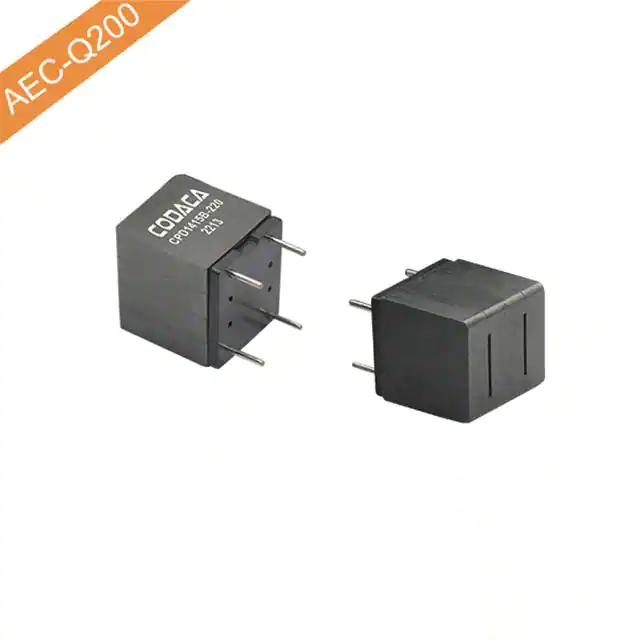

CPD1415B-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
64 |
|
规格书 |
CPD1415B | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 7 A | 9.3A | Shielded | 15.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|

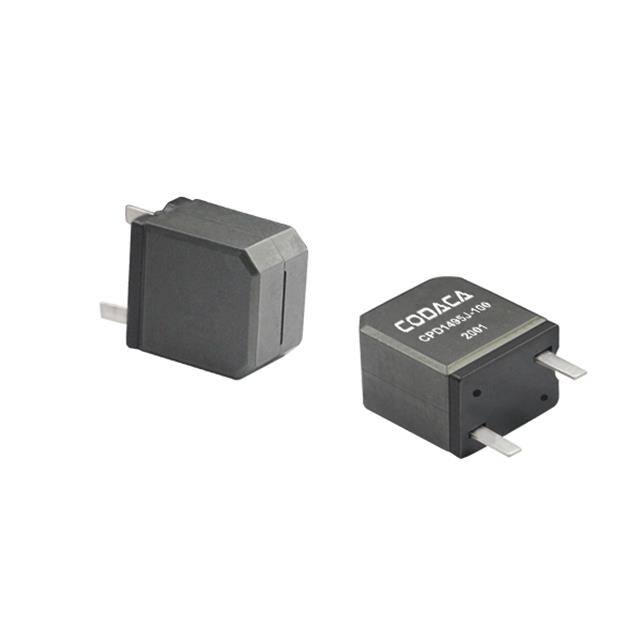

CPD1495J-100MTHT CLASS D IND FOR DIGITAL AMP CODACA |
33 |
|
规格书 |
CPD1495J | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 7 A | 18A | Shielded | 16.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.630" (16.00mm) |
|

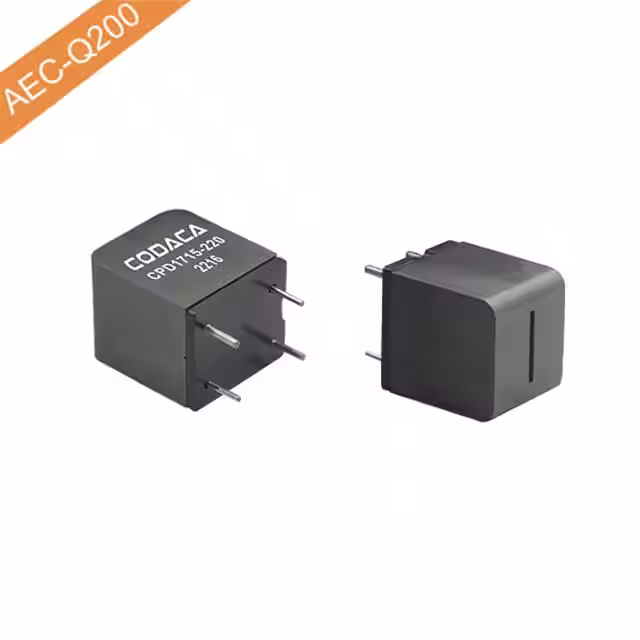

CPD1715-330MTHT CLASS D IND FOR DIGITAL AMP CODACA |
44 |
|
规格书 |
CPD1715 | Nonstandard | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 8.2 A | 8A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
|
CPD1715-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
59 |
|
规格书 |
CPD1715 | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 8.2 A | 18A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
|
CSBX1809-1R3MSMD HIGH CURRENT POWER INDUCTOR CODACA |
50 |
|
规格书 |
CSBX1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 1.3 µH | ±20% | 36 A | 67A | Shielded | 1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.760" L x 0.717" W (19.30mm x 18.20mm) | 0.362" (9.20mm) |
