固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSEB0730H-1R2MFIX IND 1.2UH 20A 5.50MOHM SMD CODACA |
100 |
|
规格书 |
CSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 18 A | 19.2A | Shielded | 5.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.126" (3.20mm) |
|
|
CSEB0730H-1R0MFIX IND 1UH 21A 5.20MOHM SMD CODACA |
100 |
|
规格书 |
CSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 19 A | 21.5A | Shielded | 5.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.126" (3.20mm) |
|
CPD1480-100MTHT CLASS D IND FOR DIGITAL AMP CODACA |
61 |
|
规格书 |
CPD1480 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 8 A | 14A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.299" W (14.00mm x 7.60mm) | 0.630" (16.00mm) |
|

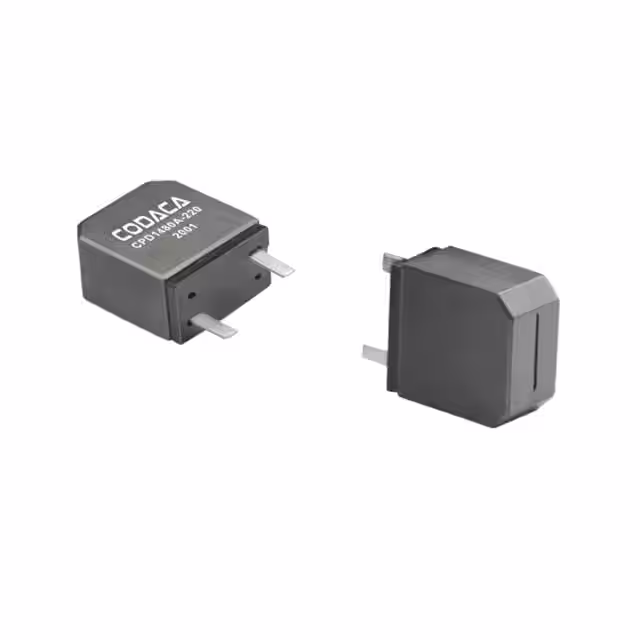

CPD1480A-100MTHT CLASS D IND FOR DIGITAL AMP CODACA |
74 |
|
规格书 |
CPD1480A | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 10.5 A | 9.5A | Shielded | 5.9mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.299" W (14.00mm x 7.60mm) | 0.630" (16.00mm) |
|
|
CSBX1275-R60MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
100 |
|
规格书 |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 0.6 µH | ±20% | 36 A | 80A | Shielded | 0.55mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-560MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
100 |
|
规格书 |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 56 µH | ±20% | 4 A | 7.5A | Shielded | 69mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-390MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
100 |
|
规格书 |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 39 µH | ±20% | 5.5 A | 9A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-8R2MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
100 |
|
规格书 |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 12 A | 23A | Shielded | 8.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-180MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
100 |
|
规格书 |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 18 µH | ±20% | 8.5 A | 14.5A | Shielded | 16.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-120MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
50 |
|
规格书 |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 12 µH | ±20% | 10 A | 19.5A | Shielded | 11.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
