固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

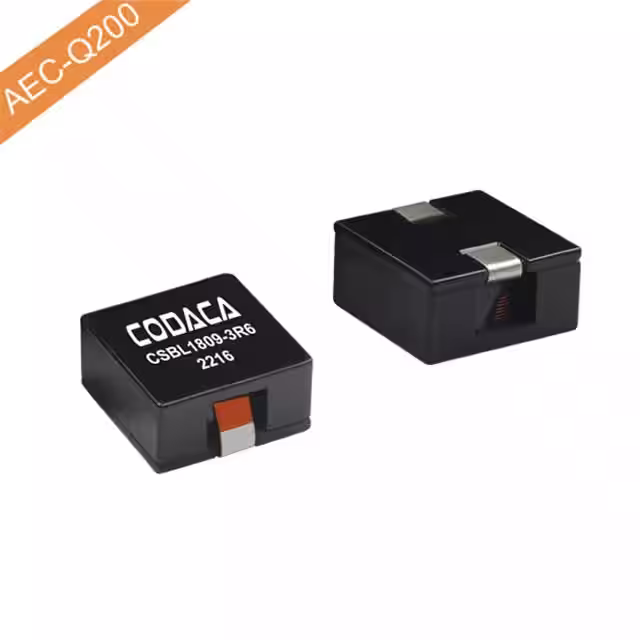

CSBL1809-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
39 |
|
规格书 |
CSBL1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 16 A | 24A | Shielded | 6.9mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.760" L x 0.717" W (19.30mm x 18.20mm) | 0.362" (9.20mm) |
|
CSCF2014-3R1MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
100 |
|
规格书 |
CSCF2014 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.1 µH | ±20% | 26 A | 45A | Shielded | 2.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-1R4MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
100 |
|
规格书 |
CSCF2014 | 3-SMD | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.4 µH | ±20% | 31 A | 60A | Shielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.570" (14.48mm) |
|
|
CSCF2014-8R6MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
100 |
|
规格书 |
CSCF2014 | - | Cut Tape (CT) | Active | Wirewound | Ferrite | 8.6 µH | ±20% | 17 A | 25A | Shielded | 7.08mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-5R5MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
100 |
|
规格书 |
CSCF2014 | 3-SMD | Cut Tape (CT) | Active | Wirewound | Ferrite | 5.5 µH | ±20% | 22 A | 33A | Shielded | 3.96mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-2R2MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
100 |
|
规格书 |
CSCF2014 | 3-SMD | Cut Tape (CT) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 30.5 A | 52A | Shielded | 1.58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-7R0MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
100 |
|
规格书 |
CSCF2014 | 3-SMD | Cut Tape (CT) | Active | Wirewound | Ferrite | 7 µH | ±20% | 21 A | 30A | Shielded | 5.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Low DCR, Low Loss | Surface Mount | - | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-330MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
88 |
|
规格书 |
CSCF2014 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 33 µH | ±20% | 12 A | 11A | Shielded | 11.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-4R2MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
53 |
|
规格书 |
CSCF2014 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 4.2 µH | ±20% | 24 A | 38A | Shielded | 3.04mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-470MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
52 |
|
规格书 |
CSCF2014 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 47 µH | ±20% | 11.5 A | 8.5A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
