固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

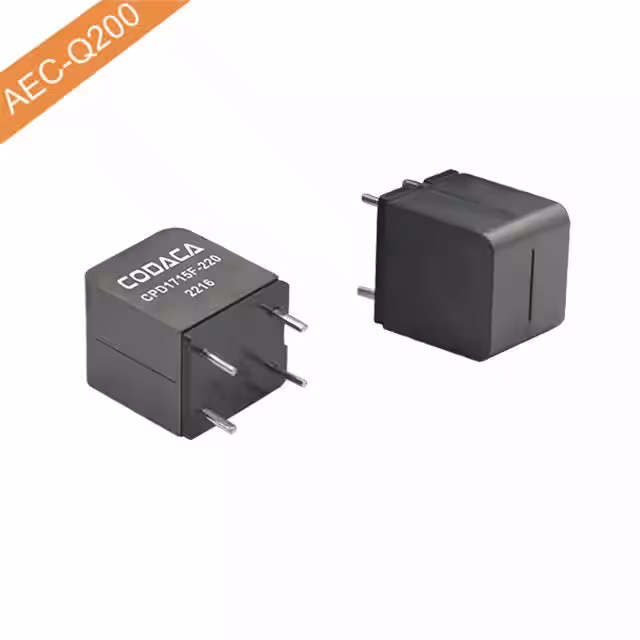

CPD1715F-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
69 |
|
规格书 |
CPD1715F | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 17 A | 20A | Shielded | 8.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
|
CPD1715F-330MTHT CLASS D IND FOR DIGITAL AMP CODACA |
55 |
|
规格书 |
CPD1715F | Nonstandard | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 17 A | 9.4A | Shielded | 8.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
CSCF2918H-330MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
73 |
|
规格书 |
CSCF2918H | Nonstandard | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 30 A | 10.5A | Shielded | 2.58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.102" L x 0.776" W (28.00mm x 19.70mm) | 0.728" (18.50mm) |
|
|
CPD2315FA-100MFIX IND 10UH 14A 6.06 MOHM TH CODACA |
100 |
|
规格书 |
CPD2315FA | Radial | Tray | Active | Molded | Ferrite | 10 µH | ±20% | 14 A | 45.5A | Shielded | 6.06mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) |
|
|
CPD2315FA-220MFIX IND 22UH 14A 6.06 MOHM TH CODACA |
40 |
|
规格书 |
CPD2315FA | Radial | Tray | Active | Molded | Ferrite | 22 µH | ±20% | 14 A | 23.5A | Shielded | 6.06mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) |
|
|
CPD2315FA-150MFIX IND 15UH 14A 6.06 MOHM TH CODACA |
40 |
|
规格书 |
CPD2315FA | Radial | Tray | Active | Molded | Ferrite | 15 µH | ±20% | 14 A | 30.5A | Shielded | 6.06mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) |
|

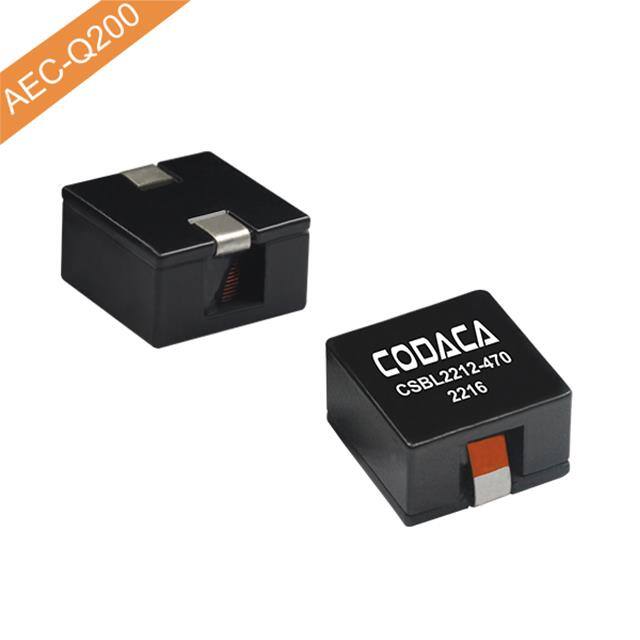

CSBL2212-220MSMD HIGH CURRENT POWER INDUCTOR CODACA |
91 |
|
规格书 |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 15 A | 21A | Shielded | 8.25mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBL2212-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
83 |
|
规格书 |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 21 A | 31A | Shielded | 3.88mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBL2212-101MSMD HIGH CURRENT POWER INDUCTOR CODACA |
77 |
|
规格书 |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 100 µH | ±20% | 6.1 A | 9A | Shielded | 40.8mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|

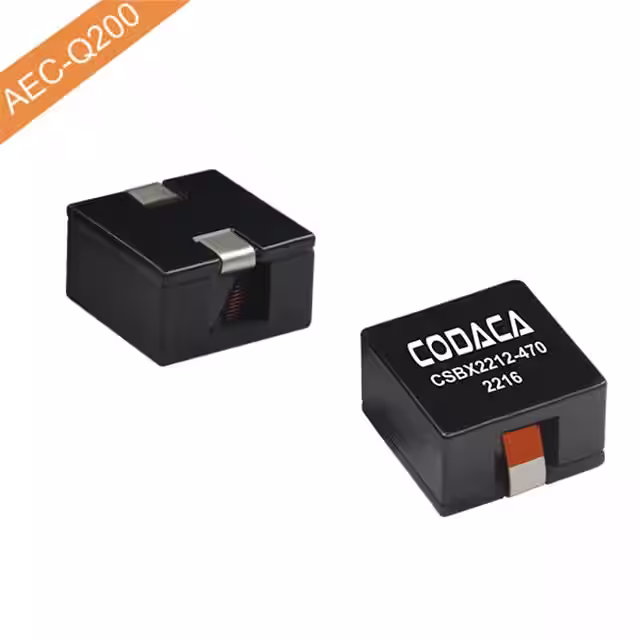

CSBX2212-330MSMD HIGH CURRENT POWER INDUCTOR CODACA |
85 |
|
规格书 |
CSBX2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 11.5 A | 22A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
