| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSEB0730H-1R2MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 18.5 A | 18.2A | Shielded | 4.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.118" (3.00mm) |
|
|
VSEB0430H-R82MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.82 µH | ±20% | 12.8 A | 10.5A | Shielded | 7.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.118" (3.00mm) |
|
|
VSEB0730H-1R5MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 16.5 A | 13.6A | Shielded | 6.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.118" (3.00mm) |
|
|
VSEB0430H-R56MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.56 µH | ±20% | 15.5 A | 13.1A | Shielded | 5.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.118" (3.00mm) |
|
|
VSEB0430H-2R2MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
489 |
|
规格书 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 8.3 A | 6.8A | Shielded | 20.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.118" (3.00mm) |
|
|
VSEB0730H-4R7MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
475 |
|
规格书 |
VSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 10 A | 8A | Shielded | 23.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.118" (3.00mm) |
|
|
VSEB0430H-3R3MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
460 |
|
规格书 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 7.1 A | 5.6A | Shielded | 26.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.118" (3.00mm) |
|
|
VSEB0430H-1R0MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
420 |
|
规格书 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 10.7 A | 9A | Shielded | 10.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.118" (3.00mm) |
|

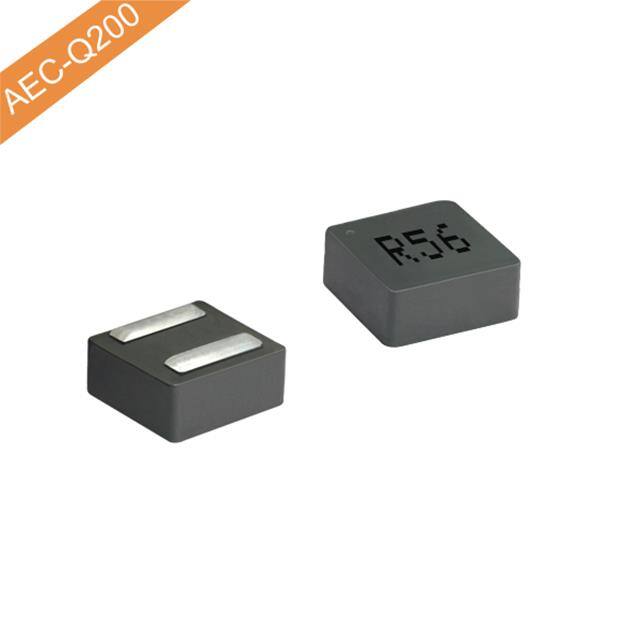

CSEB0550H-6R8MSMD MOLDING POWER CHOKE CODACA |
896 |
|
规格书 |
CSEB0550H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 6.4 A | 5.4A | Shielded | 29.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.201" (5.10mm) |
|
|
CSEB0550H-100MSMD MOLDING POWER CHOKE CODACA |
800 |
|
规格书 |
CSEB0550H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 5 A | 4.5A | Shielded | 43.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.201" (5.10mm) |
