固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSEB0530H-R82MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.82 µH | ±20% | 11.8 A | 13A | Shielded | 5.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
|
VSEB0530H-R68MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.68 µH | ±20% | 15.6 A | 15.2A | Shielded | 5.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
|
VSEB0530H-1R5MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
498 |
|
规格书 |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 11 A | 10.7A | Shielded | 10.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
|
VSEB0530H-3R3MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
488 |
|
规格书 |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 8.1 A | 7A | Shielded | 21.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
|
VSEB0530H-2R2MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
488 |
|
规格书 |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 10 A | 8.3A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
|
VSEB0530H-4R7MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
485 |
|
规格书 |
VSEB0530H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 7.9 A | 6.2A | Shielded | 30.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.217" L x 0.211" W (5.55mm x 5.35mm) | 0.118" (3.00mm) |
|
CSBX1265-3R6MSMD HIGH CURRENT POWER INDUCTOR CODACA |
363 |
|
规格书 |
CSBX1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 3.6 µH | ±20% | 17 A | 30A | Shielded | 4.85mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|

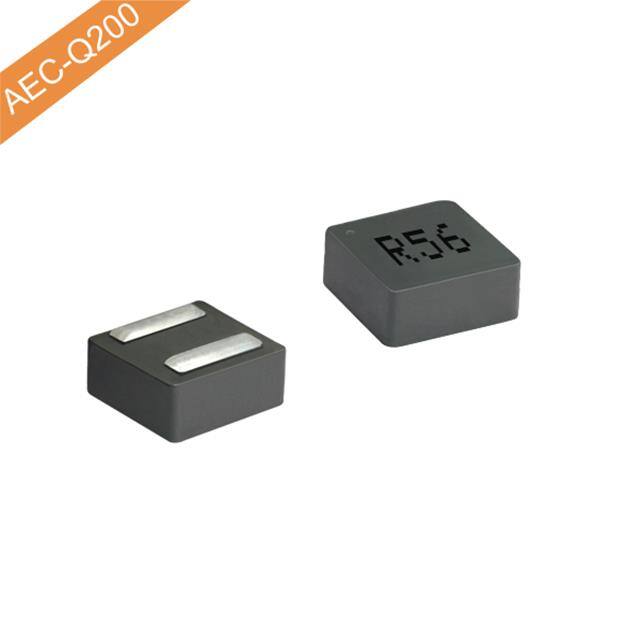

CSEB0660H-330MSMD MOLDING POWER CHOKE CODACA |
10,142 |
|
规格书 |
CSEB0660H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 3.8 A | 3.2A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
CSEB0660H-220MSMD MOLDING POWER CHOKE CODACA |
4,411 |
|
规格书 |
CSEB0660H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 22 µH | ±20% | 4.7 A | 4.7A | Shielded | 63.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
CSEB0660H-1R5MSMD MOLDING POWER CHOKE CODACA |
700 |
|
规格书 |
CSEB0660H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 16.3 A | 16.3A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
