| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

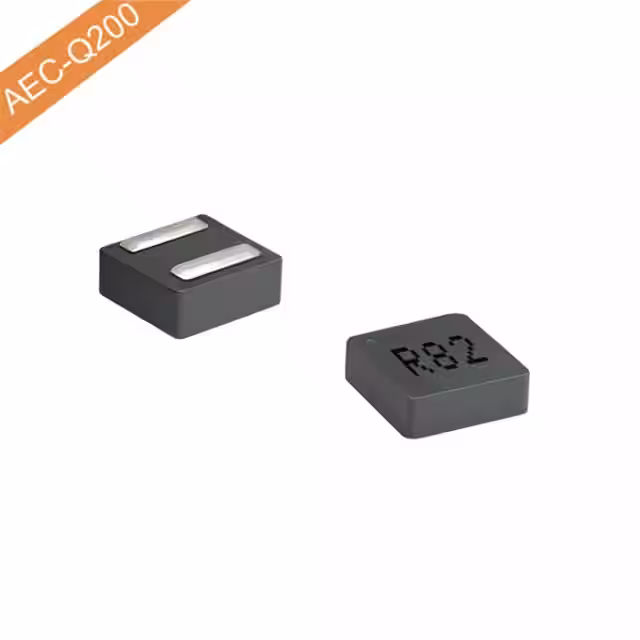

CSEB0420H-R82MSMD MOLDING POWER CHOKE CODACA |
2,000 |
|
规格书 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 820 nH | ±20% | 10.3 A | 7.4A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
CSEB0420H-R56MSMD MOLDING POWER CHOKE CODACA |
1,990 |
|
规格书 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 560 nH | ±20% | 12 A | 10.3A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
CSEB0420H-47NMSMD MOLDING POWER CHOKE CODACA |
1,959 |
|
规格书 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 47 nH | ±20% | 34 A | 40A | Shielded | 1.55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
CSEB0420H-2R2MSMD MOLDING POWER CHOKE CODACA |
1,823 |
|
规格书 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 7.2 A | 5.2A | Shielded | 23.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
CSEB0420H-R47MSMD MOLDING POWER CHOKE CODACA |
1,714 |
|
规格书 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 470 nH | ±20% | 12.5 A | 10.5A | Shielded | 6.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | - | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
CSEB0440H-4R7MSMD MOLDING POWER CHOKE CODACA |
1,495 |
|
规格书 |
CSEB0440H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 6 A | 4.7A | Shielded | 35mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
CSEB0420H-1R2MSMD MOLDING POWER CHOKE CODACA |
500 |
|
规格书 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 8.3 A | 6.7A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
|
CSEB0420H-1R5MSMD MOLDING POWER CHOKE CODACA |
500 |
|
规格书 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 8.1 A | 5.5A | Shielded | 18.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
|
CSEB0430H-1R2MSMD MOLDING POWER CHOKE CODACA |
480 |
|
规格书 |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 8.9 A | 8A | Shielded | 10.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
CSEB0420H-1R0MSMD MOLDING POWER CHOKE CODACA |
387 |
|
规格书 |
CSEB0420H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1 µH | ±20% | 8.6 A | 7A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.087" (2.20mm) |
