固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

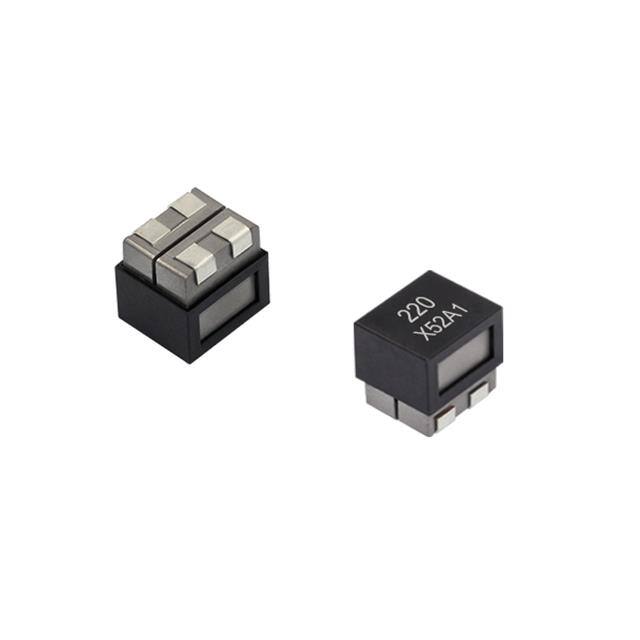

CSAD0880-100MSMD MOLDING POWER CHOKE CODACA |
697 |
|
规格书 |
CSAD0880 | 4-SMD, J-Lead | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 5.3 A | 8A | Shielded | 34.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.378" L x 0.378" W (9.60mm x 9.60mm) | 0.374" (9.50mm) |
|
|
CSAD0880-220MSMD MOLDING POWER CHOKE CODACA |
688 |
|
规格书 |
CSAD0880 | 4-SMD, J-Lead | Cut Tape (CT) | Active | Molded | Alloy Powder | 22 µH | ±20% | 3.5 A | 5A | Shielded | 98mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.378" L x 0.378" W (9.60mm x 9.60mm) | 0.374" (9.50mm) |
|
|
CSAD0880-150MSMD MOLDING POWER CHOKE CODACA |
694 |
|
规格书 |
CSAD0880 | 4-SMD, J-Lead | Cut Tape (CT) | Active | Molded | Alloy Powder | 15 µH | ±20% | 4.5 A | 6.6A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.378" L x 0.378" W (9.60mm x 9.60mm) | 0.374" (9.50mm) |
|

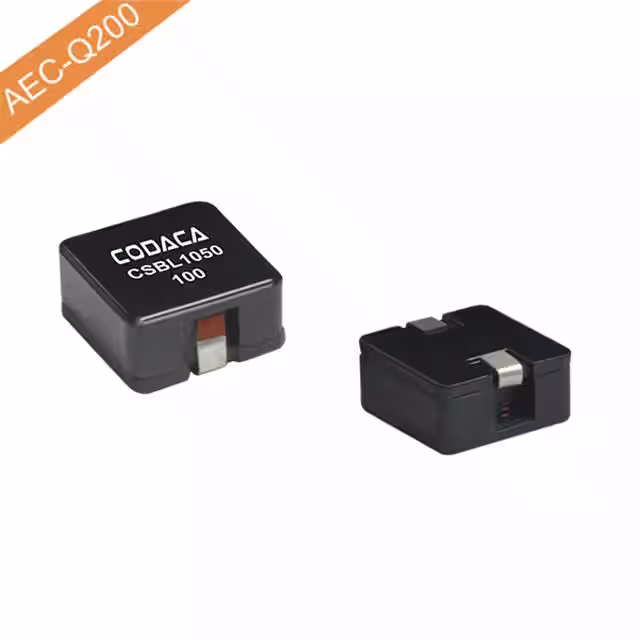

CSBL1050-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
695 |
|
规格书 |
CSBL1050 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 7.1 A | 8.5A | Shielded | 18.9mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.197" (5.00mm) |
|

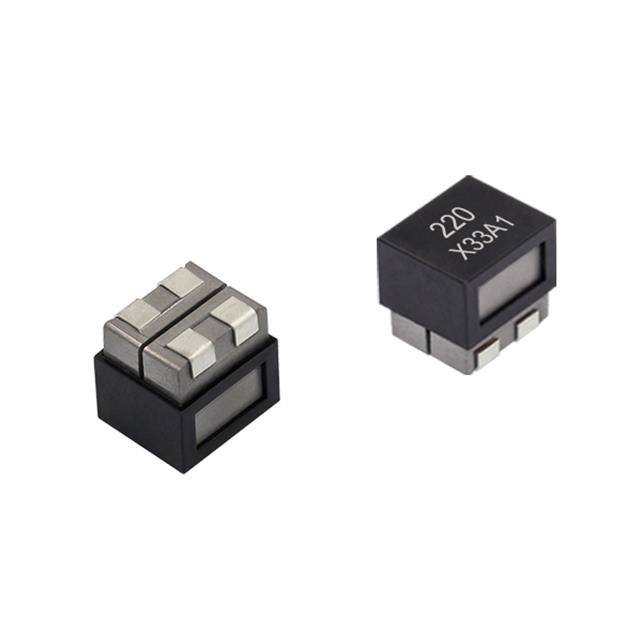

CSAD1010-330MSMD MOLDING POWER CHOKE CODACA |
595 |
|
规格书 |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 33 µH | ±20% | 4 A | 5A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.429" (10.90mm) |
|
|
CSAD1010-220MSMD MOLDING POWER CHOKE CODACA |
585 |
|
规格书 |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 4.9 A | 6A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.429" (10.90mm) |
|
|
CSAD1010-150MSMD MOLDING POWER CHOKE CODACA |
524 |
|
规格书 |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 6 A | 8A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.429" (10.90mm) |
|
VSEB0630H-3R3MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 8.8 A | 8.8A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|
|
VSEB0630H-1R5MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
498 |
|
规格书 |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 15.5 A | 13.2A | Shielded | 7.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|
|
VSEB0630H-4R7MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
497 |
|
规格书 |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 7.9 A | 6.7A | Shielded | 23.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
