固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSEB0430H-3R3MSMD MOLDING POWER CHOKE CODACA |
250 |
|
规格书 |
CSEB0430H | 2-SMD | Cut Tape (CT) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 6.3 A | 5A | Shielded | 25.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
CSEB0430H-1R5MSMD MOLDING POWER CHOKE CODACA |
240 |
|
规格书 |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 8.1 A | 7A | Shielded | 12.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|

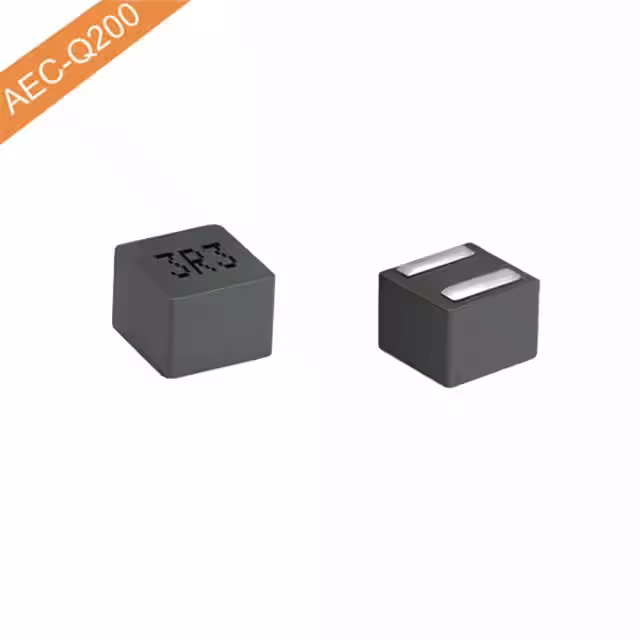

CSEB0440H-3R3MSMD MOLDING POWER CHOKE CODACA |
240 |
|
规格书 |
CSEB0440H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 6.6 A | 5.2A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.161" (4.10mm) |
|
|
CSEB0430H-2R2MSMD MOLDING POWER CHOKE CODACA |
199 |
|
规格书 |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 7.6 A | 5.6A | Shielded | 19.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
VSEB0730H-3R3MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 11.3 A | 9.3A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.118" (3.00mm) |
|
|
VSEB0430H-R68MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.68 µH | ±20% | 15 A | 11A | Shielded | 6.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.118" (3.00mm) |
|
|
VSEB0730H-5R6MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 8.1 A | 7.3A | Shielded | 26mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.118" (3.00mm) |
|
|
VSEB0430H-1R5MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 9 A | 8.5A | Shielded | 12.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.118" (3.00mm) |
|
|
VSEB0730H-2R2MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0730H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 14.3 A | 11A | Shielded | 10.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.118" (3.00mm) |
|
|
VSEB0430H-R47MCAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
500 |
|
规格书 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 0.47 µH | ±20% | 14.4 A | 12A | Shielded | 5.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.118" (3.00mm) |
