固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

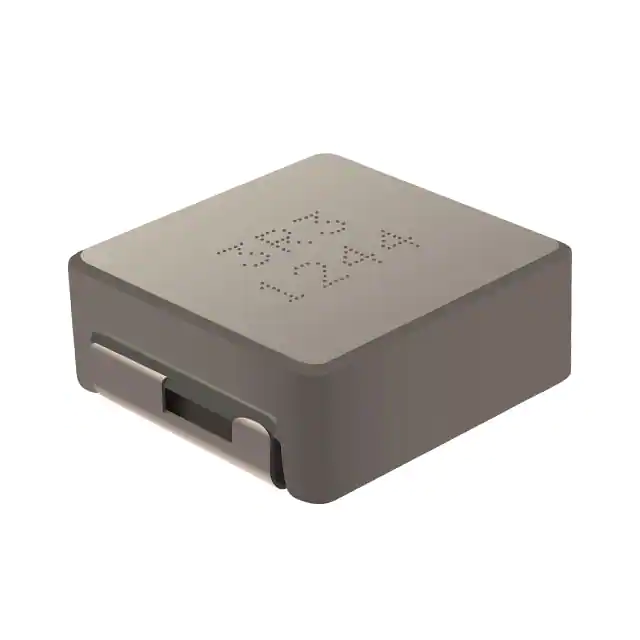

SRP1770TA-3R3MFIXED IND 3.3UH 28A 3.9 MOHM SMD Bourns Inc. |
12,533 |
|
规格书 |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 28 A | 45A | Shielded | 3.9mOhm Max | 20 @ 100kHz | 17MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-4R7MFIXED IND 4.7UH 25A 5.5 MOHM SMD Bourns Inc. |
4,421 |
|
规格书 |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 25 A | 41A | Shielded | 5.5mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-1R0MFIXED IND 1UH 52A 2 MOHM SMD Bourns Inc. |
1,734 |
|
规格书 |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 52 A | 60A | Shielded | 2mOhm Max | 20 @ 100kHz | 35MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-560MFIXED IND 56UH 7.8A 62 MOHM SMD Bourns Inc. |
674 |
|
规格书 |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 56 µH | ±20% | 7.8 A | 9A | Shielded | 62mOhm Max | 20 @ 100kHz | 3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-101MFIXED IND 100UH 5.3A 118MOHM SMD Bourns Inc. |
575 |
|
规格书 |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 100 µH | ±20% | 5.3 A | 6.5A | Shielded | 118mOhm Max | 20 @ 100kHz | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-330MFIXED IND 33UH 10.7A 44 MOHM SMD Bourns Inc. |
1,030 |
|
规格书 |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 10.7 A | 15A | Shielded | 44mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-680MFIXED IND 68UH 7A 80 MOHM SMD Bourns Inc. |
709 |
|
规格书 |
SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 68 µH | ±20% | 7 A | 8A | Shielded | 80mOhm Max | 20 @ 100kHz | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|

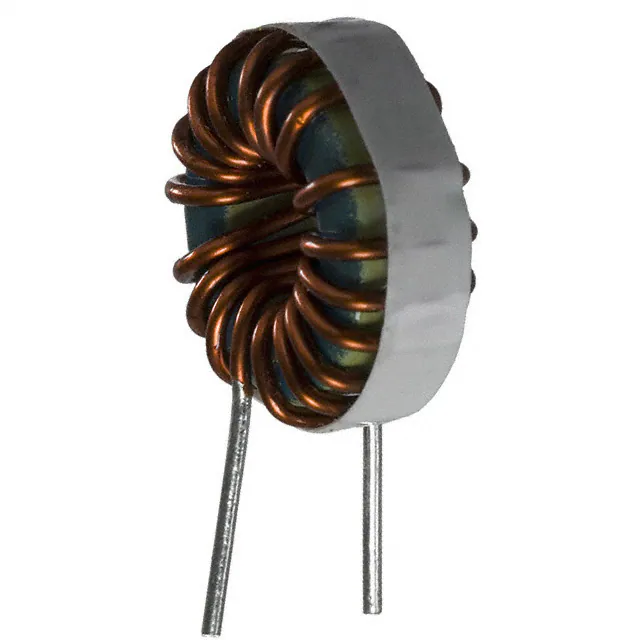

2320-V-RCFIXED IND 470UH 3.8A 130 MOHM TH Bourns Inc. |
2,452 |
|
规格书 |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2309-V-RCFIXED IND 47UH 10.7A 16 MOHM TH Bourns Inc. |
1,631 |
|
规格书 |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 10.7 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
PQ2617BHA-150KFIXED IND 15UH 28A 2.5 MOHM SMD Bourns Inc. |
1,453 |
|
规格书 |
PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 28 A | 21.2A | Shielded | 2.5mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
