固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6540-1R0MFIXED IND 1UH 12A 7.2 MOHM SMD Bourns Inc. |
53,072 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 12 A | 13.5A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP6540-100MFIXED IND 10UH 4A 78.5 MOHM SMD Bourns Inc. |
22,309 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 4 A | 4A | Shielded | 78.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP6540-1R5MFIXED IND 1.5UH 11A 10 MOHM SMD Bourns Inc. |
12,076 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 11 A | 11A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|

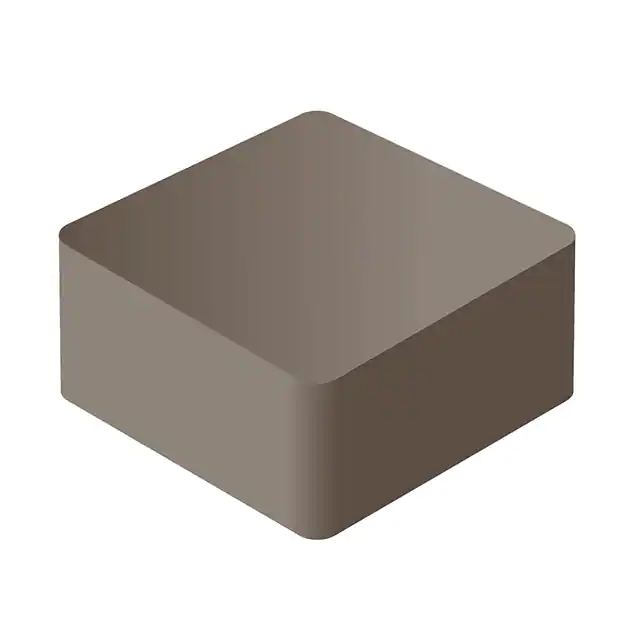

SRP4020FA-3R3MFIXED IND 3.3UH 5.5A 38.3MOHM SM Bourns Inc. |
2,033 |
|
规格书 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 5.5 A | 3.4A | Shielded | 38.3mOhm Max | 15 @ 100kHz | 26MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
SRP4020FA-1R0MFIXED IND 1UH 11A 11.7 MOHM SMD Bourns Inc. |
7,336 |
|
规格书 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 5.4A | Shielded | 11.7mOhm Max | 20 @ 100kHz | 56MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
SRP4020FA-2R2MFIXED IND 2.2UH 8A 23.5 MOHM SMD Bourns Inc. |
2,737 |
|
规格书 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 3.8A | Shielded | 23.5mOhm Max | 15 @ 100kHz | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
SRP4020FA-R47MFIXED IND 470NH 13.2A 6.8MOHM SM Bourns Inc. |
1,976 |
|
规格书 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 13.2 A | 10A | Shielded | 6.8mOhm Max | 30 @ 100kHz | 90MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

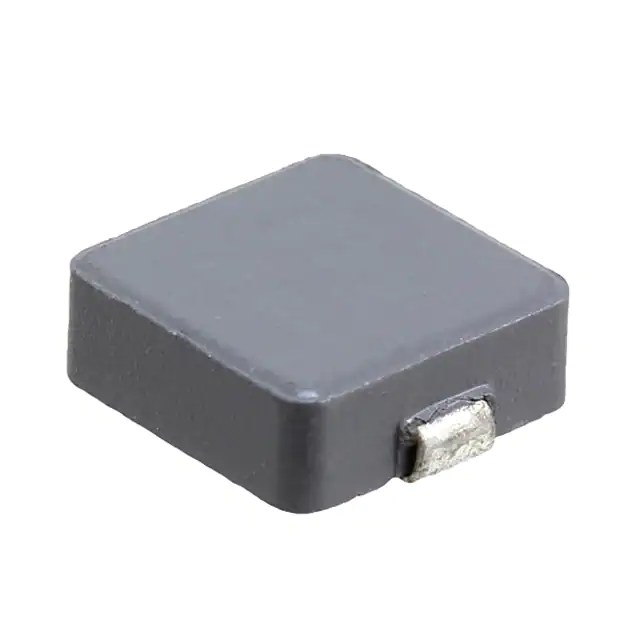

SRP1038A-100MFIXED IND 10UH 7.5A 30 MOHM SMD Bourns Inc. |
53,386 |
|
规格书 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-220MFIXED IND 22UH 5A 74 MOHM SMD Bourns Inc. |
22,094 |
|
规格书 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | 20 @ 100kHz | 8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-470MFIXED IND 47UH 3A 167 MOHM SMD Bourns Inc. |
15,997 |
|
规格书 |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 47 µH | ±20% | 3 A | 4.5A | Shielded | 167mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
