上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1265A-3R3MFIXED IND 3.3UH 18A 6.8 MOHM SMD Bourns Inc. |
1,366 |
|
规格书 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 18 A | 30A | Shielded | 6.8mOhm Max | 20 @ 100kHz | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1265A-1R0MFIXED IND 1UH 30A 2.3 MOHM SMD Bourns Inc. |
499 |
|
规格书 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 30 A | 48A | Shielded | 2.3mOhm Max | 20 @ 100kHz | 45MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
SRP6540-220MFIXED IND 22UH 2.5A 133 MOHM SMD Bourns Inc. |
9,956 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±20% | 2.5 A | 2.5A | Shielded | 133mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|

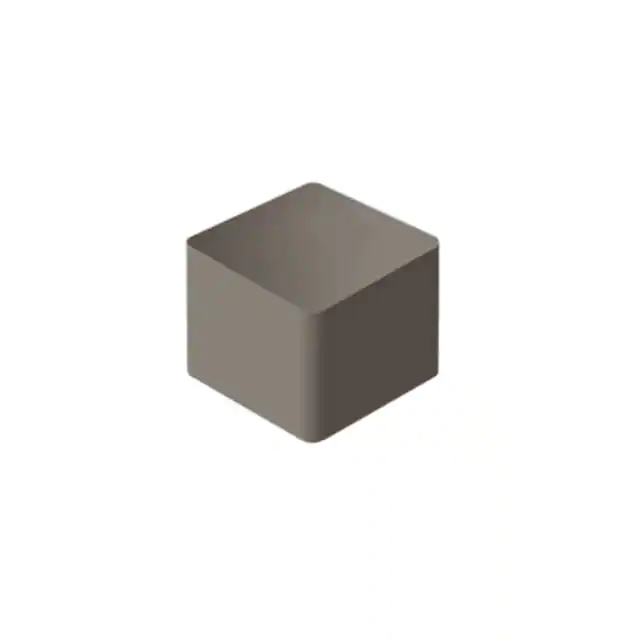

SRP5050FA-6R8MFIXED IND 6.8UH 6.4A 28.6MOHM SM Bourns Inc. |
487 |
|
规格书 |
SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 6.4 A | 7.8A | Shielded | 28.6mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
SRP6030CA-3R3MFIXED IND 3.3UH 8A 20.8 MOHM SMD Bourns Inc. |
2,268 |
|
规格书 |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 8 A | 12.2A | Shielded | 20.8mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
SRP6030CA-1R8MFIXED IND 1.8UH 14A 10.2MOHM SMD Bourns Inc. |
122 |
|
规格书 |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±20% | 14 A | 18.2A | Shielded | 10.2mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
|
SRP1265A-220MFIXED IND 22UH 9A 37 MOHM SMD Bourns Inc. |
37,352 |
|
规格书 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 9 A | 12A | Shielded | 37mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|

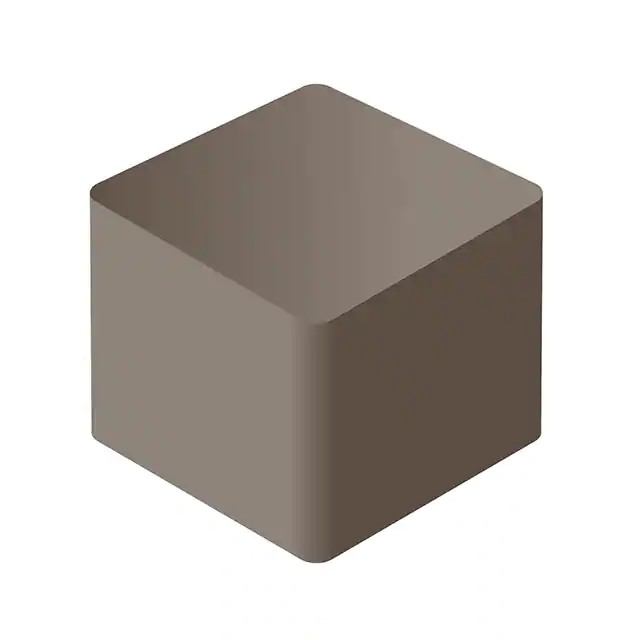

SRP6060FA-220MFIXED IND 22UH 5A 60.5 MOHM SMD Bourns Inc. |
6,885 |
|
规格书 |
SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±20% | 5 A | 5.6A | Shielded | 60.5mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|
|
SRP6060FA-150MFIXED IND 15UH 6A 43 MOHM SMD Bourns Inc. |
4,483 |
|
规格书 |
SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 6 A | 5.8A | Shielded | 43mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|
|
SRP1265A-150MFIXED IND 15UH 9A 28 MOHM SMD Bourns Inc. |
3,027 |
|
规格书 |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 15 µH | ±20% | 9 A | 12.5A | Shielded | 28mOhm Max | 20 @ 100kHz | 7MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
