固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

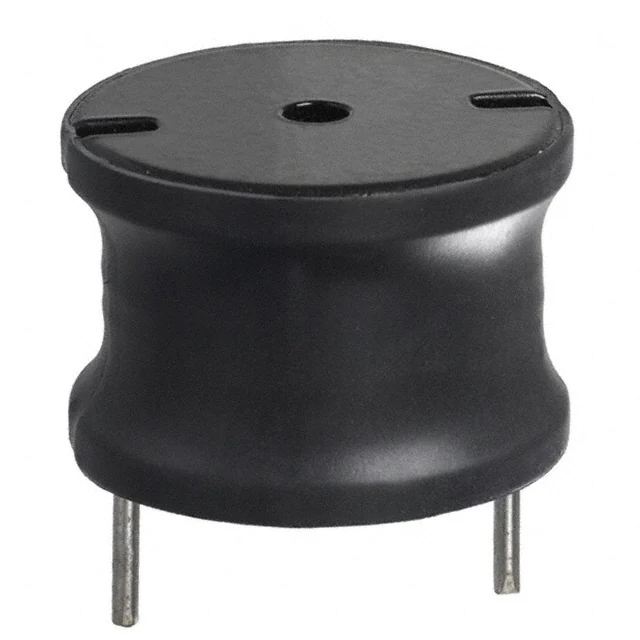

1140-331K-RCFIXED IND 330UH 6.1A 74 MOHM TH Bourns Inc. |
319 |
|
规格书 |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 6.1 A | 11.2A | Unshielded | 74mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
1140-103K-RCFIXED IND 10MH 1A 2.76 OHM TH Bourns Inc. |
669 |
|
规格书 |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 1 A | 2.1A | Unshielded | 2.76Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|

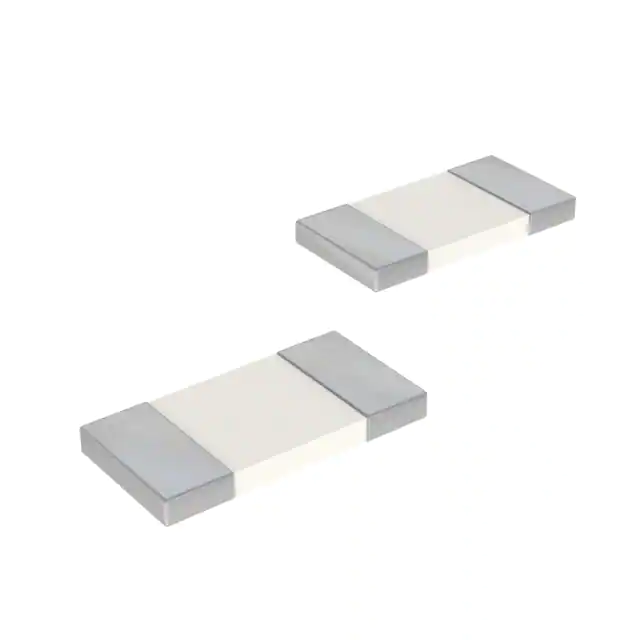

CE201210-3N3JFIXED IND 3.3NH 300MA 130MOHM SM Bourns Inc. |
90,476 |
|
规格书 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±5% | 300 mA | - | Unshielded | 130mOhm Max | 16 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.03mm) |
|

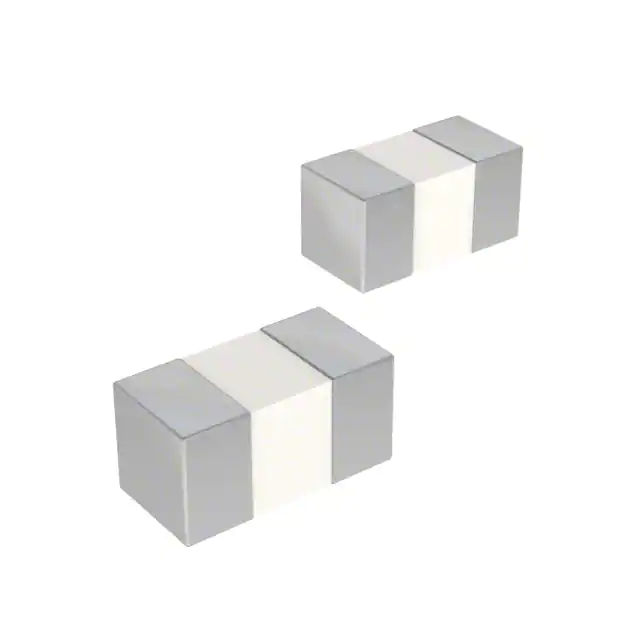

CI160808-10NJFIXED IND 10NH 300MA 350MOHM SMD Bourns Inc. |
36,785 |
|
规格书 |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 350mOhm Max | 10 @ 100MHz | 1.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

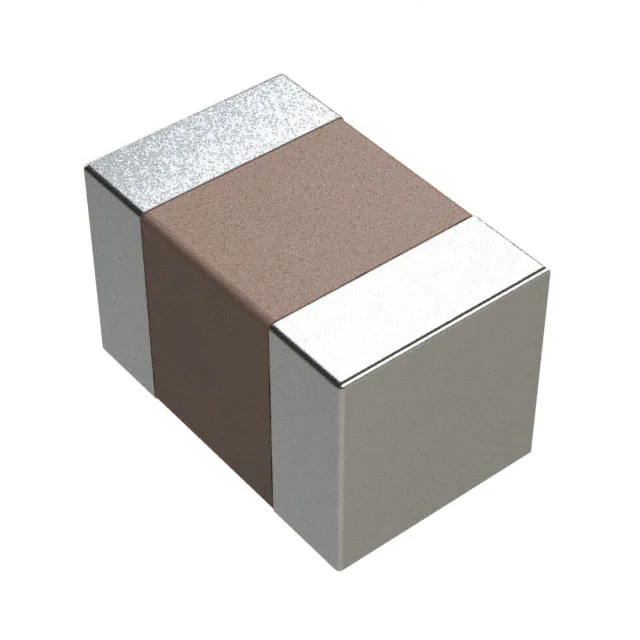

CV201210-100KFIXED IND 10UH 15MA 1.15 OHM SMD Bourns Inc. |
34,858 |
|
规格书 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±10% | 15 mA | - | Shielded | 1.15Ohm Max | 45 @ 2MHz | 24MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CV201210-4R7KFIXED IND 4.7UH 30MA 1 OHM SMD Bourns Inc. |
27,520 |
|
规格书 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 30 mA | - | Shielded | 1Ohm Max | 45 @ 10MHz | 35MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CV201210-1R0KFIXED IND 1UH 50MA 400 MOHM SMD Bourns Inc. |
26,663 |
|
规格书 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±10% | 50 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 75MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CI160808-R10JFIXED IND 100NH 300MA 1.7OHM SMD Bourns Inc. |
26,594 |
|
规格书 |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ceramic | 100 nH | ±5% | 300 mA | - | Unshielded | 1.7Ohm Max | 10 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CE201210-15NJFIXED IND 15NH 300MA 400MOHM SMD Bourns Inc. |
25,377 |
|
规格书 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 22 @ 100MHz | 1.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.03mm) |
|

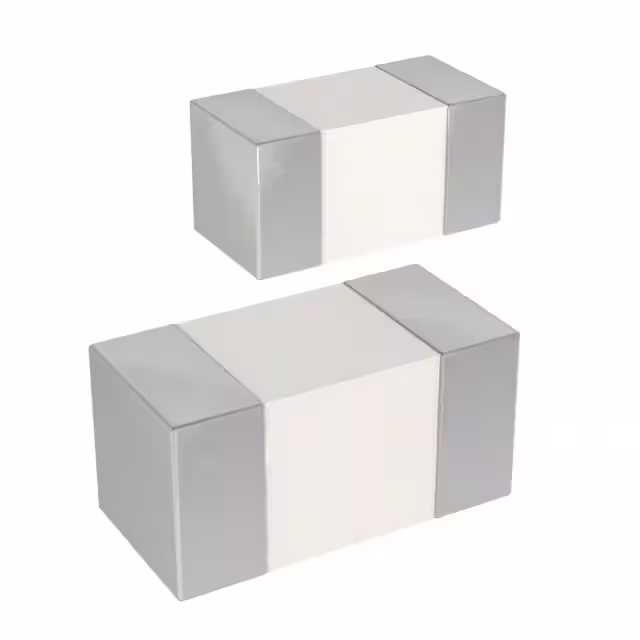

CE201210-R15JFIXED IND 150NH 300MA 1 OHM SMD Bourns Inc. |
22,779 |
|
规格书 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 150 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 22 @ 50MHz | 500MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.03mm) |
