固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

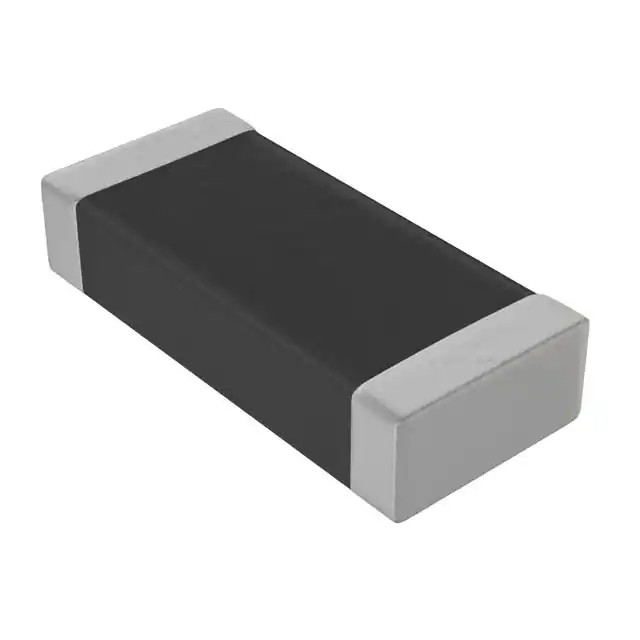

CVH252009-2R2MFIXED IND 2.2UH 1.3A 80 MOHM SMD Bourns Inc. |
25,830 |
|
规格书 |
CVH252009 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.3 A | - | Shielded | 80mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRN4018-2R2MFIXED IND 2.2UH 2.9A 44 MOHM SMD Bourns Inc. |
138,206 |
|
规格书 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.9 A | 3A | Shielded | 44mOhm Max | 9 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

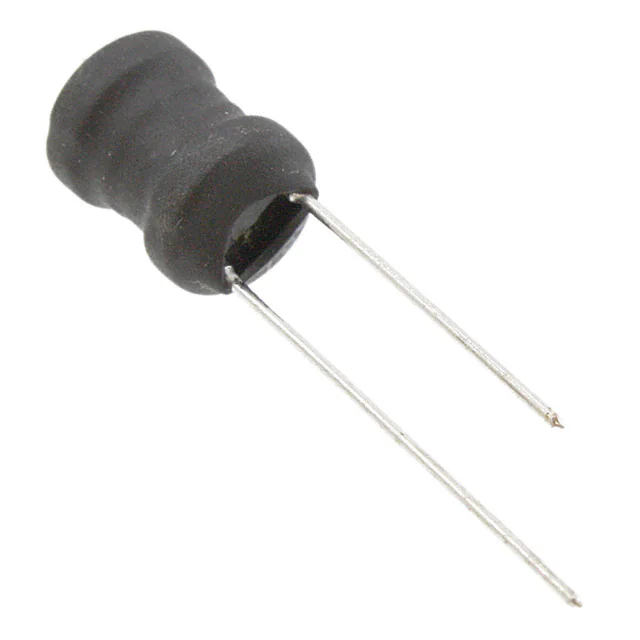

RLB0914-681KLFIXED IND 680UH 490MA 1.6 OHM TH Bourns Inc. |
49,100 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 490 mA | 900mA | Unshielded | 1.6Ohm Max | 20 @ 796kHz | 1.6MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
SRN4018-1R0YFIXED IND 1UH 3.7A 23 MOHM SMD Bourns Inc. |
32,539 |
|
规格书 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.7 A | 4.2A | Shielded | 23mOhm Max | 9 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018-4R7MFIXED IND 4.7UH 1.9A 84 MOHM SMD Bourns Inc. |
31,297 |
|
规格书 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 2A | Shielded | 84mOhm Max | 9 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SRN4018-330MFIXED IND 33UH 700MA 552MOHM SMD Bourns Inc. |
25,095 |
|
规格书 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 700 mA | 750mA | Shielded | 552mOhm Max | 11 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

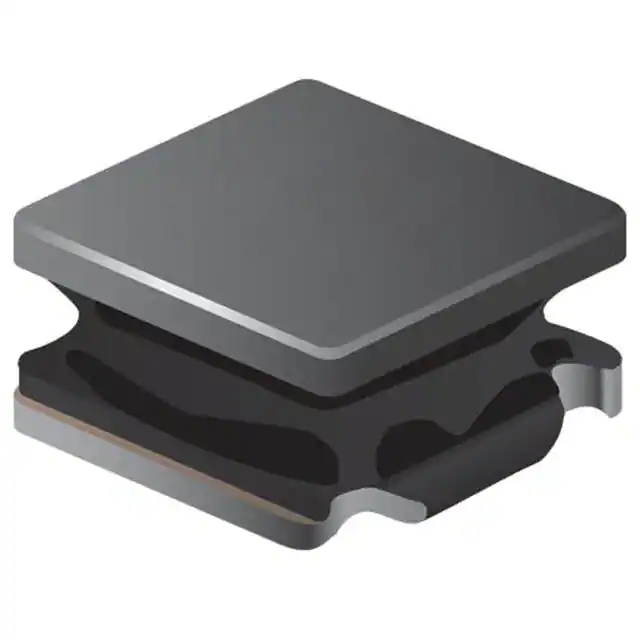

SRN3015-2R2MFIXED IND 2.2UH 1.8A 72 MOHM SMD Bourns Inc. |
622,705 |
|
规格书 |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.8 A | 1.65A | Shielded | 72mOhm Max | 10 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-220MFIXED IND 22UH 600MA 622MOHM SMD Bourns Inc. |
87,350 |
|
规格书 |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 600 mA | 580mA | Shielded | 622mOhm Max | 17 @ 2.52MHz | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-1R0YFIXED IND 1UH 2.35A 48 MOHM SMD Bourns Inc. |
38,950 |
|
规格书 |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.35 A | 2.35A | Shielded | 48mOhm Max | 10 @ 7.96MHz | 145MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-100MFIXED IND 10UH 1A 276 MOHM SMD Bourns Inc. |
33,368 |
|
规格书 |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 880mA | Shielded | 276mOhm Max | 10 @ 2.52MHz | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
