固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447798151FIXED IND 15UH 5.45A 25.8MOHM SM |
8,468 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 5.45 A | 4A | Shielded | 25.8mOhm Max | - | 19MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798271FIXED IND 27UH 4.3A 42.5MOHM SMD |
1,401 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 27 µH | ±20% | 4.3 A | 3.1A | Shielded | 42.5mOhm Max | - | 15MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798360FIXED IND 3.6UH 12A 5.95 MOHM |
1,298 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.6 µH | ±30% | 12 A | 8.6A | Shielded | 5.95mOhm Max | - | 46MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798620FIXED IND 6.2UH 9.4A 9.5MOHM SMD |
750 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.2 µH | ±30% | 9.4 A | 6.7A | Shielded | 9.5mOhm Max | - | 33MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|

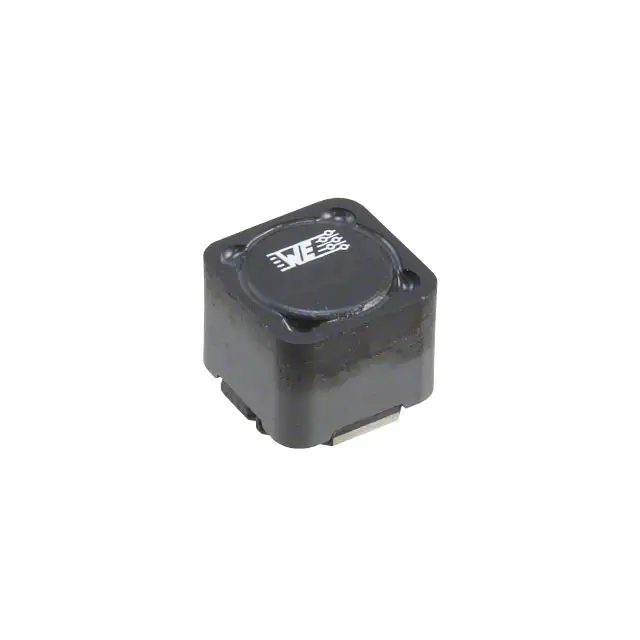

7687709152FIXED IND 1.5MH 520MA 2.2OHM SMD |
682 |
|
规格书 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 mH | ±20% | 520 mA | 800mA | Shielded | 2.2Ohm Max | - | 900kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|

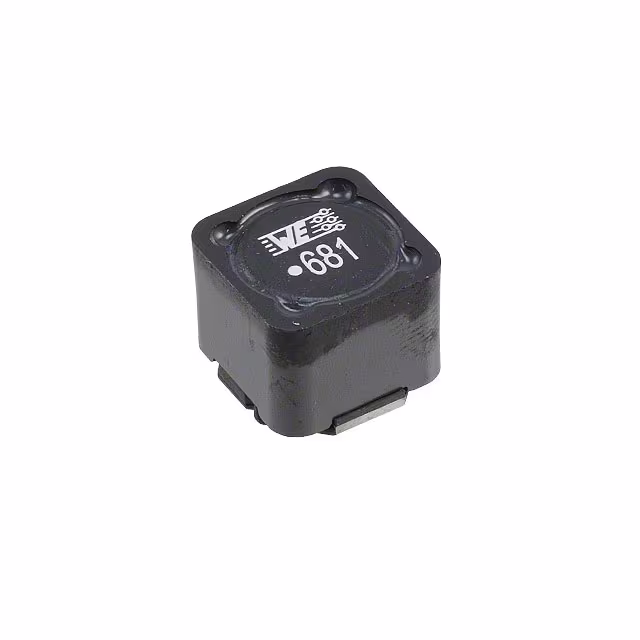

7687709681FIXED IND 680UH 800MA 1.15OHM SM |
543 |
|
规格书 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 800 mA | 1.2A | Shielded | 1.15Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
|
7447798241FIXED IND 24UH 4.5A 39.5MOHM SMD |
516 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 24 µH | ±20% | 4.5 A | 3.25A | Shielded | 39.5mOhm Max | - | 16MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|

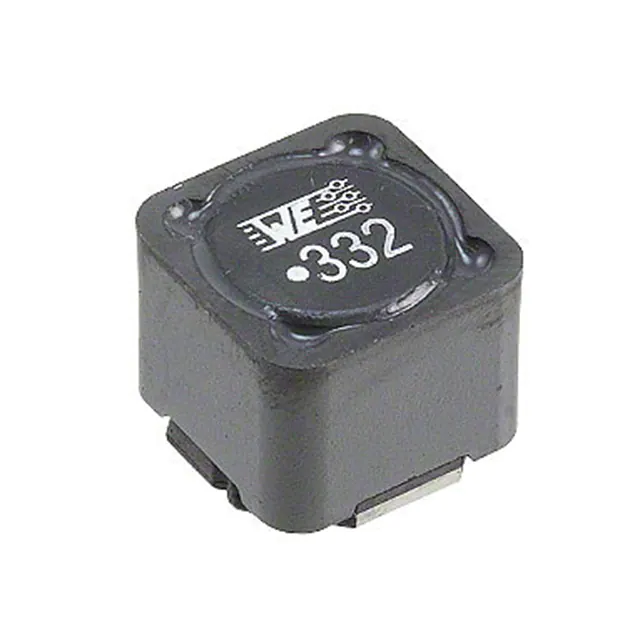

7687709332FIXED IND 3.3MH 370MA 5.2OHM SMD |
256 |
|
规格书 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 mH | ±20% | 370 mA | 520mA | Shielded | 5.2Ohm Max | - | 600kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|
1025-52JFIXED IND 22UH 144MA 3.3 OHM TH |
3,745 |
|
规格书 |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 22 µH | ±5% | 144 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
TCK-131FIXED IND 15UH 850MA 235MOHM SMD |
1,245 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 15 µH | ±20% | 850 mA | - | Unshielded | 235mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.146" (3.70mm) |
|
UP4B-101-RFIXED IND 100UH 2A 170 MOHM SMD |
772 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | 3.6A | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
SPD62R-352MFIXED IND 3.5UH 2.5A 120MOHM SMD |
5,575 |
|
规格书 |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±20% | 2.5 A | 2.5A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
IHLP6767GZERR56M01FIXED IND 560NH 56A 1.05MOHM SMD |
254 |
|
规格书 |
IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 56 A | 88A | Shielded | 1.05mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
PQ2617BHA-330KFIXED IND 33UH 28A 2.5 MOHM SMD |
1,052 |
|
规格书 |
PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 28 A | 8.7A | Shielded | 2.5mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
|
SD3118-2R2-RFIXED IND 2.2UH 1.5A 74 MOHM SMD |
3,641 |
|
规格书 |
SD3118 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.5 A | 2A | Shielded | 74mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.071" (1.80mm) |
|
|
VLBUC12060120R12LF3FIXED IND 120NH 106A 0.125MOHM S |
413 |
|
规格书 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±15% | 70 A | 106A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
TCK-133FIXED IND 68UH 370MA 1.117OHM SM |
307 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 68 µH | ±20% | 370 mA | - | Unshielded | 1.117Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.146" (3.70mm) |
|

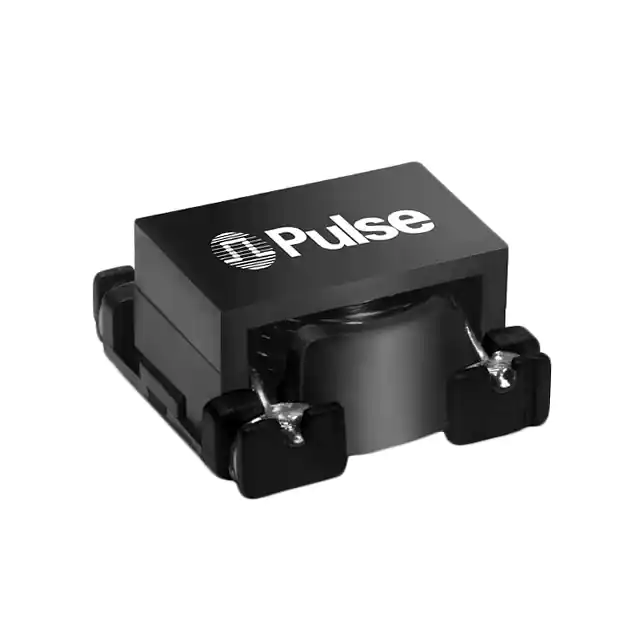

PD0120.113NLFIXED IND 12.2UH 7.6A 16MOHM SMD |
825 |
|
规格书 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 12.2 µH | ±10% | 7.6 A | 9A | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
HCTI-680-3.4FIXED IND 680UH 3.4A 150 MOHM TH |
587 |
|
规格书 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 680 µH | ±15% | 3.4 A | - | Shielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
TCK-132FIXED IND 22UH 680MA 378MOHM SMD |
454 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 22 µH | ±20% | 680 mA | - | Unshielded | 378mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.146" (3.70mm) |
