固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P5LR50XFAFIXED IND 500NH 30A 0.8 MOHM SMD |
1,154 |
|
规格书 |
PCC-M1250L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal Composite | 500 nH | ±20% | 30 A | - | Shielded | 0.8mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.197" (5.00mm) |
|
2124-H-RCFIXED IND 1MH 1.3A 400 MOHM TH |
17,988 |
|
规格书 |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 1.3 A | - | Unshielded | 400mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2112-V-RCFIXED IND 100UH 2.4A 130 MOHM TH |
971 |
|
规格书 |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 2.4 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2101-H-RCFIXED IND 10UH 10.8A 6 MOHM TH |
516 |
|
规格书 |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 10 µH | ±15% | 10.8 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2116-V-RCFIXED IND 220UH 2.4A 120 MOHM TH |
462 |
|
规格书 |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 220 µH | ±15% | 2.4 A | - | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2116-H-RCFIXED IND 220UH 2.4A 120 MOHM TH |
330 |
|
规格书 |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 220 µH | ±15% | 2.4 A | - | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
HCF1007-100-RFIXED IND 10UH 9.4A 8.65MOHM SMD |
3,951 |
|
规格书 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9.4 A | 5.3A | Unshielded | 8.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|
SD20-4R7-RFIXED IND 4.7UH 2.05A 61.2 MOHM |
3,615 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.05 A | 1.33A | Shielded | 61.2mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|

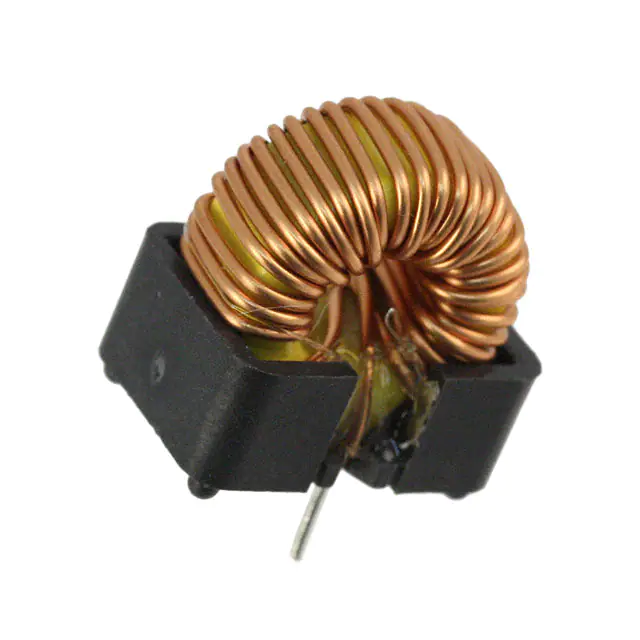

PE-53112NLFIXED IND 47UH 3A 50 MOHM TH |
1,052 |
|
规格书 |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | 0.700" (17.78mm) |
|
ETQ-P8M1R0JFAFIXED IND 1UH 31.8A 1.5 MOHM SMD |
739 |
|
规格书 |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 31.8 A | 44.4A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.315" (8.00mm) |
|
|
ETQ-P8M3R3JFAFIXED IND 3.3UH 19.6A 3.96 MOHM |
593 |
|
规格书 |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 19.6 A | 27.6A | Shielded | 3.96mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.516" W (12.60mm x 13.10mm) | 0.315" (8.00mm) |
|
|
2114-V-RCFIXED IND 150UH 3.4A 62 MOHM TH |
511 |
|
规格书 |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 3.4 A | - | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
SRP1265WA-330MIND,13.6X12.6X6.2MM,33UH20%,6.3A |
230 |
|
规格书 |
SRP1265WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 33 µH | ±20% | 6.3 A | 7.2A | Shielded | 61mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) |
|
1536TFIXED IND 100UH 2A 216 MOHM TH |
261 |
|
规格书 |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 100 µH | ±20% | 2 A | - | Unshielded | 216mOhm | - | 4.1MHz | - | - | 1 kHz | - | Through Hole | - | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|
1812R-392JFIXED IND 3.9UH 472MA 900MOHM SM |
7,301 |
|
规格书 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±5% | 472 mA | - | Unshielded | 900mOhm Max | 50 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-103JFIXED IND 10UH 354MA 1.6 OHM SMD |
3,973 |
|
规格书 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 354 mA | - | Unshielded | 1.6Ohm Max | 50 @ 7.9MHz | 20MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-154JFIXED IND 150UH 149MA 9 OHM SMD |
3,840 |
|
规格书 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±5% | 149 mA | - | Unshielded | 9Ohm Max | 40 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-184JFIXED IND 180UH 145MA 9.5OHM SMD |
877 |
|
规格书 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±5% | 145 mA | - | Unshielded | 9.5Ohm Max | 40 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-272JFIXED IND 2.7UH 517MA 750MOHM SM |
116 |
|
规格书 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±5% | 517 mA | - | Unshielded | 750mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
HCTI-47-10.7FIXED IND 47UH 10.7A 16 MOHM TH |
4,977 |
|
规格书 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 47 µH | ±15% | 10.7 A | - | Shielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
