固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744314110FIXED IND 1.1UH 15A 3.15MOHM SMD |
2,241 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.1 µH | ±20% | 15 A | 13A | Shielded | 3.15mOhm | - | 135MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
744311330FIXED IND 3.3UH 6.5A 17.2MOHM SM |
2,031 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.5 A | 11A | Shielded | 17.2mOhm | - | 43MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
744314076FIXED IND 760NH 15.5A 2.25 MOHM |
1,708 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 760 nH | ±20% | 15.5 A | 15A | Shielded | 2.25mOhm | - | 200MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
|
744311047FIXED IND 400NH 19A 1.85MOHM SMD |
1,233 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±20% | 19 A | 25A | Shielded | 1.85mOhm | - | 250MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
744310200FIXED IND 2UH 6.5A 14.2 MOHM SMD |
1,079 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 6.5 A | 9A | Shielded | 14.2mOhm | - | 58MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
744310150FIXED IND 1.5UH 7.5A 12.7MOHM SM |
597 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 7.5 A | 12A | Shielded | 12.7mOhm | - | 80MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
P1812R-333KFIXED IND 33UH 300MA 1.578OHM SM |
5,002 |
|
规格书 |
P1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±10% | 300 mA | 425mA | Unshielded | 1.578Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
2218-V-RCFIXED IND 330UH 3.3A 100 MOHM TH |
2,168 |
|
规格书 |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 3.3 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
P1812R-103KFIXED IND 10UH 550MA 608MOHM SMD |
694 |
|
规格书 |
P1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 550 mA | 772mA | Unshielded | 608mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
1025R-84KFIXED IND 470UH 36MA 42 OHM TH |
185 |
|
规格书 |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±10% | 36 mA | - | Unshielded | 42Ohm Max | 30 @ 790kHz | 6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
IHLP6767DZER150M11FIXED IND 15UH 9A 30.58 MOHM SMD |
438 |
|
规格书 |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 9 A | 7.5A | Shielded | 30.58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
|
IHLP6767DZER100M01FIXED IND 10UH 10.5A 25.6MOHM SM |
993 |
|
规格书 |
IHLP-6767DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 10.5 A | 19.5A | Shielded | 25.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
|
IHLP6767DZER6R8M11FIXED IND 6.8UH 14.5A 13.79 MOHM |
538 |
|
规格书 |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 14.5 A | 10.5A | Shielded | 13.79mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
HCTI-1000-2.4FIXED IND 1MH 2.4A 300 MOHM TH |
249 |
|
规格书 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 1 mH | ±15% | 2.4 A | - | Shielded | 300mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
PE-52625NLFIXED IND 150UH 1.7A 420 MOHM TH |
108 |
|
规格书 |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 150 µH | ±20% | 1.7 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
UP4B-150-RFIXED IND 15UH 5.5A 23 MOHM SMD |
867 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.5 A | 9.1A | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
MP2A-4R7-RFIXED IND 4.7UH 1.6A 117MOHM SMD |
5,491 |
|
规格书 |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 4.7 µH | ±20% | 1.6 A | 1.81A | Unshielded | 117mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
PE-52626NLFIXED IND 220UH 1.5A 420 MOHM TH |
1,251 |
|
规格书 |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|

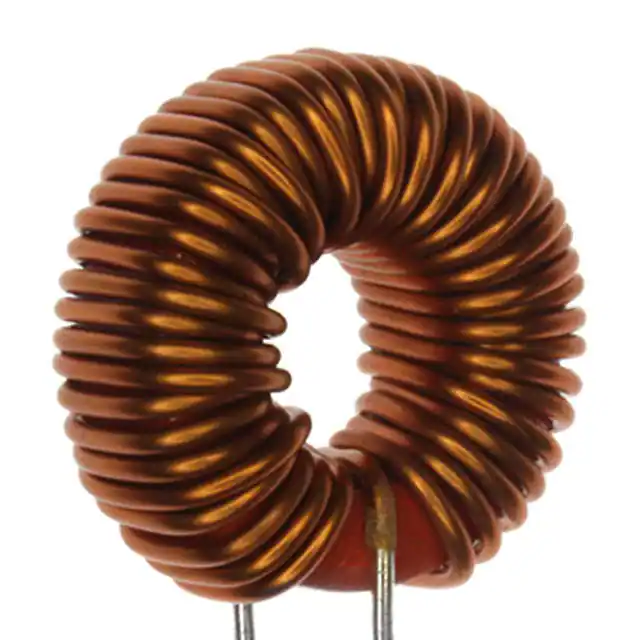

7447070FIXED IND 100UH 5A 35 MOHM TH |
7,247 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 100 µH | ±20% | 5 A | - | Unshielded | 35mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.984" Dia x 0.433" W (25.00mm x 11.00mm) | - |
|
HCMA1707-4R7-RFIXED IND 4.7UH 27A 4.72MOHM SMD |
485 |
|
规格书 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 27 A | 24A | Shielded | 4.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
