固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP3-R47-RFIXED IND 470NH 10.9A 3.67 MOHM |
1,875 |
|
规格书 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±15% | 10.9 A | 14.9A | Unshielded | 3.67mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|

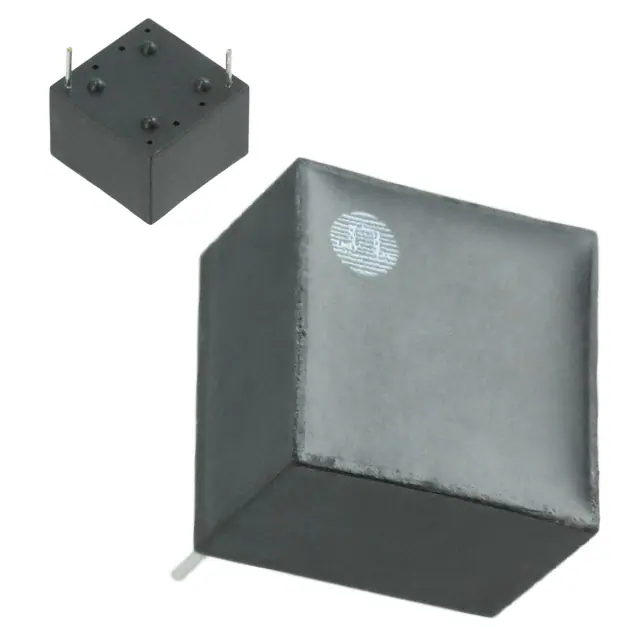

PE-53819NLFIXED IND 173UH 540MA 600MOHM TH |
1,147 |
|
规格书 |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
HCTI-10-20.0FIXED IND 10UH 20A 5 MOHM TH |
580 |
|
规格书 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 10 µH | ±15% | 20 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

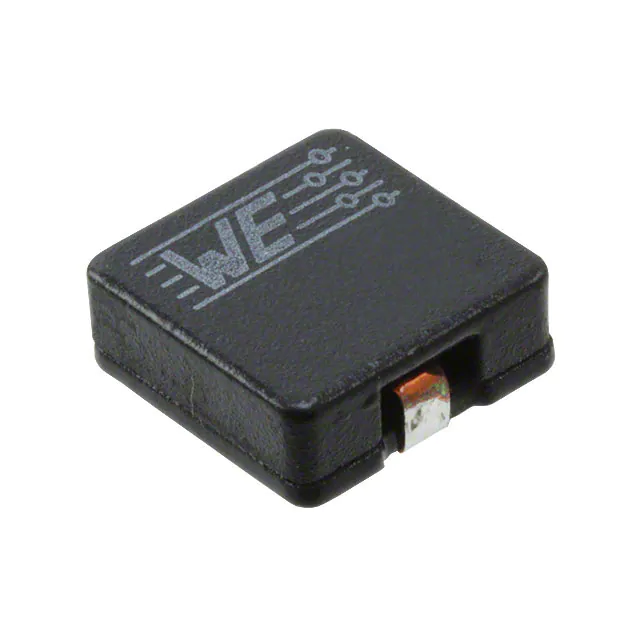

7443552560FIXED IND 5.6UH 6.7A 20.6MOHM SM |
1,294 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 6.7 A | 7.5A | Shielded | 20.6mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
7447797360FIXED IND 3.6UH 8.2A 12.2MOHM SM |
4,815 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.6 µH | ±20% | 8.2 A | 8.5A | Shielded | 12.2mOhm Max | - | 55MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
|
7447797820FIXED IND 8.2UH 5.05A 28.6 MOHM |
3,776 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 8.2 µH | ±20% | 5.05 A | 5.8A | Shielded | 28.6mOhm Max | - | 28MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
VLB7050HT-R15MFIXED IND 150NH 36A 0.27MOHM SMD |
378 |
|
规格书 |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 36 A | 37A | Unshielded | 0.27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.268" L x 0.264" W (6.80mm x 6.70mm) | 0.197" (5.00mm) |
|
|
HCTI-330-5.2FIXED IND 330UH 5.2A 67 MOHM TH |
305 |
|
规格书 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 330 µH | ±15% | 5.2 A | - | Shielded | 67mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

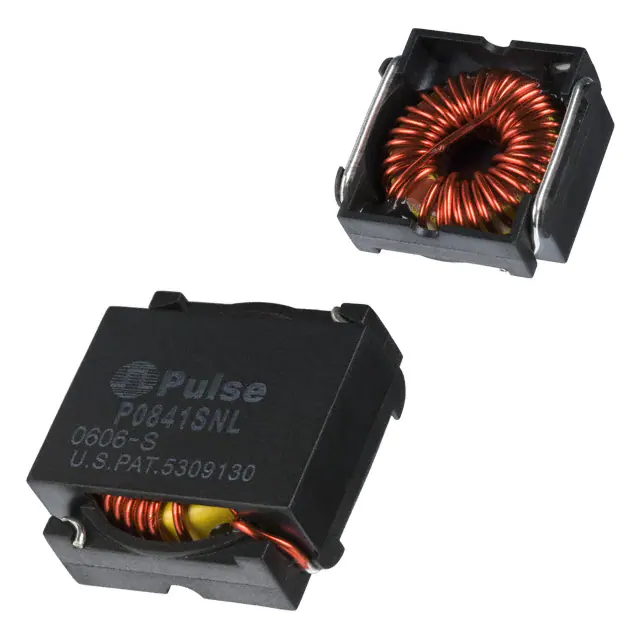

P0841SNLFIXED IND 22.8UH 4.9A 36MOHM SMD |
4,974 |
|
规格书 |
HCI-68 | Nonstandard | Tube | Active | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.87mm x 23.87mm) | 0.400" (10.16mm) |
|
TCK-151FIXED IND 4.7UH 1.5A 150MOHM SMD |
345 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 4.7 µH | ±20% | 1.5 A | - | Unshielded | 150mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.102" (2.60mm) |
|

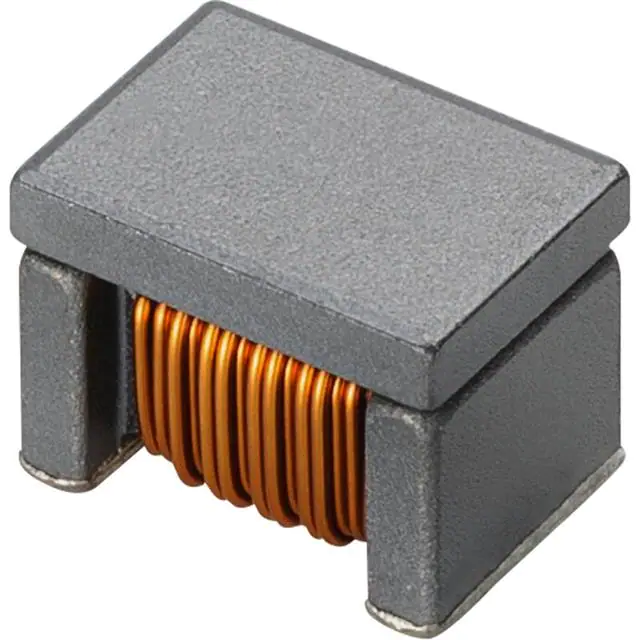

LQW43FT180M0HLFIXED IND 18UH 845MA POWRTRN |
121 |
|
规格书 |
LQW43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 600 mA | 800mA | Shielded | 160mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.146" (3.70mm) |
|
|
TCK-147FIXED IND 15UH 600MA 600MOHM SMD |
109 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 15 µH | ±20% | 600 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.102" (2.60mm) |
|
SD25-1R2-RFIXED IND 1.2UH 3.33A 24MOHM SMD |
3,390 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 3.33 A | 3.81A | Shielded | 24mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
IHLP5050FDER2R2M01FIXED IND 2.2UH 22A 4.2 MOHM SMD |
516 |
|
规格书 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 22 A | 40A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
HCF1305-1R0-RFIXED IND 1UH 22A 1.9 MOHM SMD |
3,161 |
|
规格书 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 22 A | 24A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
1025R-68KFIXED IND 100UH 84MA 8 OHM TH |
8,854 |
|
规格书 |
1025R | Axial | Bulk | Active | Molded | Ferrite | 100 µH | ±10% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
B82559A0142A013FIXED IND 1.4UH 22A 1.5 MOHM SMD |
1,111 |
|
规格书 |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±10% | 22 A | 22A | Shielded | 1.5mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.236" (6.00mm) |
|
ETQ-P8M2R5JFAFIXED IND 2.5UH 23A 2.86MOHM SMD |
592 |
|
规格书 |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.5 µH | ±20% | 23 A | 32.1A | Shielded | 2.86mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.315" (8.00mm) |
|
PE-53830SNLTFIXED IND 77UH 1.54A 200MOHM SMD |
515 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 1.54 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
IHLP6767GZER100M8AFIXED IND 10UH 16A 10.91MOHM SMD |
358 |
|
规格书 |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 16 A | 13A | Shielded | 10.91mOhm Max | - | 7.7MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
