固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DENO-23-0001FIXED IND 16A 15 MOHM TH |
648 |
|
规格书 |
DENO | Radial, Vertical (Open) | Bulk | Active | - | - | - | - | 16 A | - | - | 15mOhm | - | - | - | -25°C ~ 100°C | - | - | Through Hole | - | 0.906" Dia x 0.394" W (23.00mm x 10.00mm) | - |
|
S1210R-122KFIXED IND 1.2UH 574MA 490MOHM SM |
4,219 |
|
规格书 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±10% | 574 mA | - | Shielded | 490mOhm Max | 40 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210R-152KFIXED IND 1.5UH 532MA 570MOHM SM |
3,138 |
|
规格书 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 532 mA | - | Shielded | 570mOhm Max | 40 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
2100LL-151-V-RCFIXED IND 150UH 3.9A 43 MOHM TH |
1,588 |
|
规格书 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 150 µH | ±15% | 3.9 A | - | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
2100LL-391-H-RCFIXED IND 390UH 2.4A 112 MOHM TH |
673 |
|
规格书 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 390 µH | ±15% | 2.4 A | - | Shielded | 112mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
2100LL-181-H-RCFIXED IND 180UH 3.7A 48 MOHM TH |
608 |
|
规格书 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 180 µH | ±15% | 3.7 A | - | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
S1210R-471KFIXED IND 470NH 653MA 450MOHM SM |
490 |
|
规格书 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±10% | 653 mA | - | Shielded | 450mOhm Max | 40 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
2100LL-1R0-V-RCFIXED IND 1UH 21.4A 2 MOHM TH |
351 |
|
规格书 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 1 µH | ±20% | 21.4 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
2100LL-120-H-RCFIXED IND 12UH 10.9A 6 MOHM TH |
121 |
|
规格书 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 12 µH | ±15% | 10.9 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|

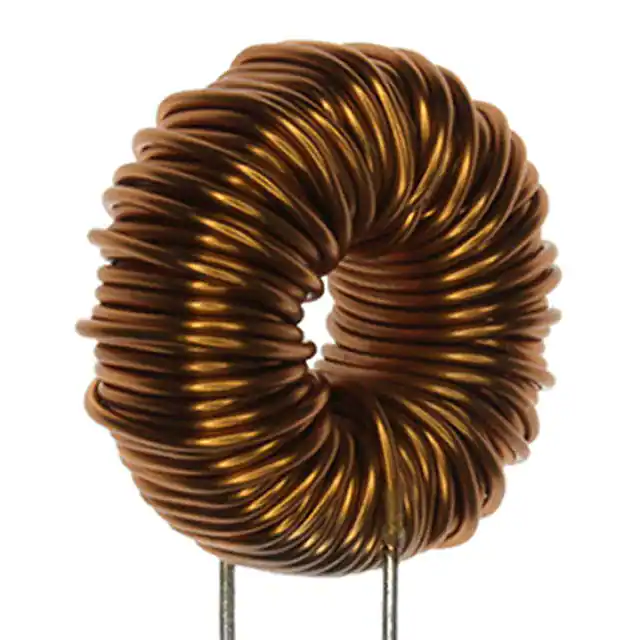

7447071FIXED IND 470UH 3A 110 MOHM TH |
279 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 470 µH | ±20% | 3 A | - | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | - |
|
PQ2614BLA-4R7KFIXED IND 4.7UH 30A 1.6 MOHM SMD |
625 |
|
规格书 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 30 A | 36.9A | Shielded | 1.6mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-330KFIXED IND 33UH 30A 1.6 MOHM SMD |
521 |
|
规格书 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 30 A | 2.6A | Shielded | 1.6mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-2R2KFIXED IND 2.2UH 30A 1.6 MOHM SMD |
267 |
|
规格书 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | 84A | Shielded | 1.6mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BLA-3R3KFIXED IND 3.3UH 30A 1.6 MOHM SMD |
192 |
|
规格书 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 30 A | 54A | Shielded | 1.6mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
74439346082FIXED IND 8.2UH 5.3A 23MOHM SMD |
1,988 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 8.2 µH | ±20% | 5.3 A | 8.4A | Shielded | 23mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
PQ2614BLA-6R8KFIXED IND 6.8UH 30A 1.6 MOHM SMD |
1,279 |
|
规格书 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 30 A | 26A | Shielded | 1.6mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
74439346056FIXED IND 5.6UH 6.9A 15MOHM SMD |
772 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 5.6 µH | ±20% | 6.9 A | 13.6A | Shielded | 15mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
PQ2614BHA-150KFIXED IND 15UH 30A 1.9 MOHM SMD |
744 |
|
规格书 |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 30 A | 14A | Shielded | 1.9mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
|
PQ2614BHA-220KFIXED IND 22UH 30A 1.9 MOHM SMD |
161 |
|
规格书 |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 30 A | 8.6A | Shielded | 1.9mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
2200HT-221-V-RCFIXED IND 220UH 4.3A 91 MOHM TH |
161 |
|
规格书 |
2200HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 4.3 A | - | Shielded | 91mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
