固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78404064220WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,444 |
|
规格书 |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.9 A | 2.5A | Shielded | 120mOhm Max | - | 15MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064010WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,403 |
|
规格书 |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 6.7 A | 11.5A | Shielded | 11mOhm Max | - | 159MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064680WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,382 |
|
规格书 |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.1 A | 1.4A | Shielded | 367mOhm Max | - | 8MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404054680WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,356 |
|
规格书 |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 970 mA | 990mA | Shielded | 516mOhm Max | - | 9MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404064150WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,175 |
|
规格书 |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2.4 A | 3A | Shielded | 88mOhm Max | - | 17MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064101WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,146 |
|
规格书 |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 900 mA | 1.2A | Shielded | 532mOhm Max | - | 6MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404054010WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
855 |
|
规格书 |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 5.7 A | 7.4A | Shielded | 14mOhm Max | - | 187MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74453147FIXED IND 47UH 600MA 0.65OHM SMD Würth Elektronik |
1,945 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 47 µH | ±20% | 600 mA | 1.3A | Shielded | 650mOhm Max | - | 12.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|

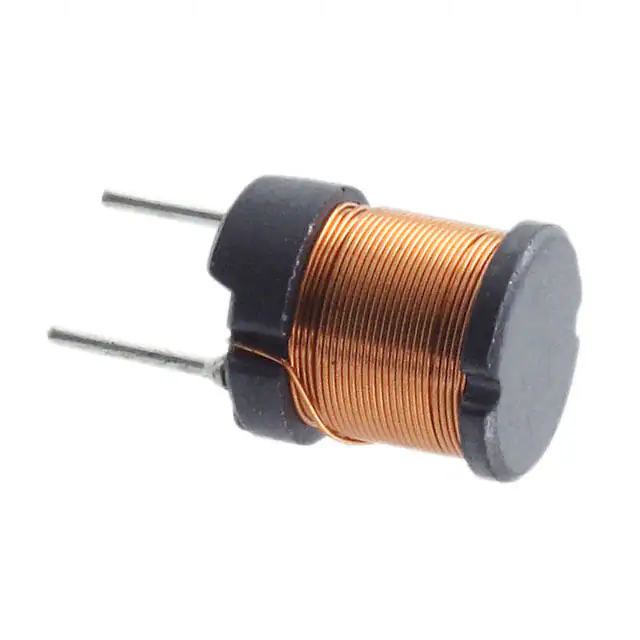

768772221FIXED IND 220UH 900MA 600MOHM TH Würth Elektronik |
409 |
|
规格书 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 900 mA | 1.3A | Unshielded | 600mOhm Max | - | 3.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
768772331FIXED IND 330UH 700MA 700MOHM TH Würth Elektronik |
159 |
|
规格书 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 700 mA | 950mA | Unshielded | 700mOhm Max | - | 3.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
