固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404084010FIXED IND 1UH 6.3A 8 MOHM SMD Würth Elektronik |
1,824 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.3 A | 14.1A | Shielded | 8mOhm | - | 127MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
744040640068FIXED IND 680NH 4.14A 10MOHM SMD Würth Elektronik |
1,496 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±30% | 7.2 A | 12A | Shielded | 10mOhm | - | 169MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
74404084015FIXED IND 1.5UH 5.65A 10MOHM SMD Würth Elektronik |
923 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.65 A | 11.4A | Shielded | 10mOhm | - | 67MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
744040520047FIXED IND 470NH 4.9A 13.9MOHM SM Würth Elektronik |
153 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 4.9 A | 8.5A | Shielded | 13.9mOhm | - | 252MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

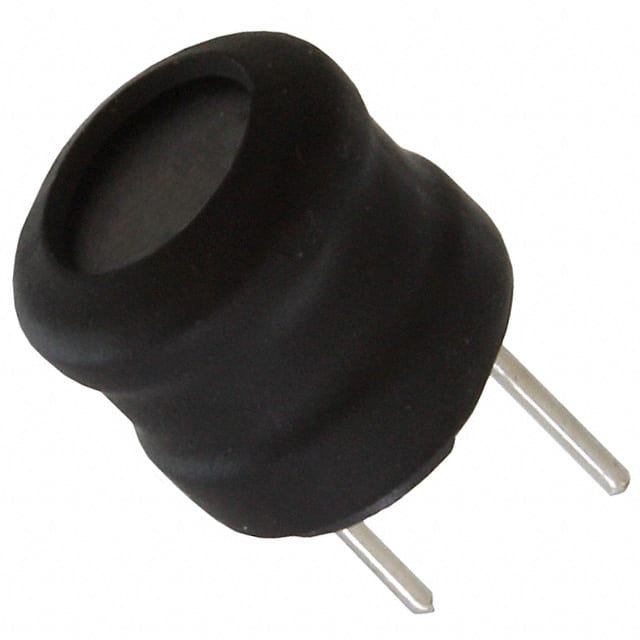

744732152FIXED IND 1.5MH 290MA 4.7 OHM TH Würth Elektronik |
730 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 290 mA | 500mA | Unshielded | 4.7Ohm Max | - | 1.75MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
78404054015WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,497 |
|
规格书 |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 5.22 A | 6A | Shielded | 18mOhm | - | 137MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404064033WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,495 |
|
规格书 |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 4.1 A | 6.5A | Shielded | 28mOhm Max | - | 42MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404054150WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,490 |
|
规格书 |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2.01 A | 2.2A | Shielded | 108mOhm Max | - | 22MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404064015WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,489 |
|
规格书 |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 6.1 A | 9.7A | Shielded | 13mOhm Max | - | 115MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064068WE-LQSA SMT SEMI-SHIELDED POWER Würth Elektronik |
1,458 |
|
规格书 |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 3.3 A | 4.3A | Shielded | 42mOhm Max | - | 27MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
