固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.2mm.jpg)
|
74438334033FIXED IND 3.3UH 1.4A 179.7 MOHM Würth Elektronik |
529 |
|
规格书 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 1.4 A | 4A | Shielded | 179.7mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

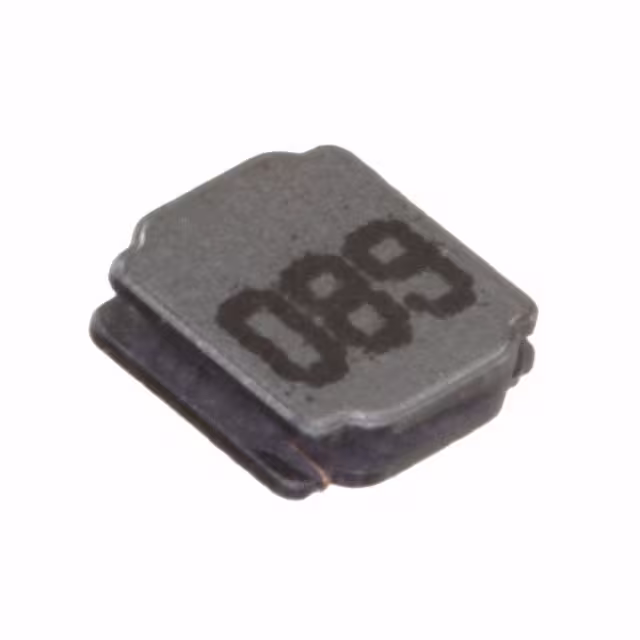

74404041680FIXED IND 68UH 450MA 1.495OHM SM Würth Elektronik |
222 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 450 mA | 480mA | Shielded | 1.495Ohm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
744918190FIXED IND 90NH 3.5A 15 MOHM SMD Würth Elektronik |
1,418 |
|
规格书 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 90 nH | ±5% | 3.5 A | - | Unshielded | 15mOhm Max | 100 @ 50MHz | 1.14GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
744766001FIXED IND 100NH 450MA 440MOHM SM Würth Elektronik |
995 |
|
规格书 |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 450 mA | - | Unshielded | 440mOhm Max | 28 @ 25.2MHz | 780MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|

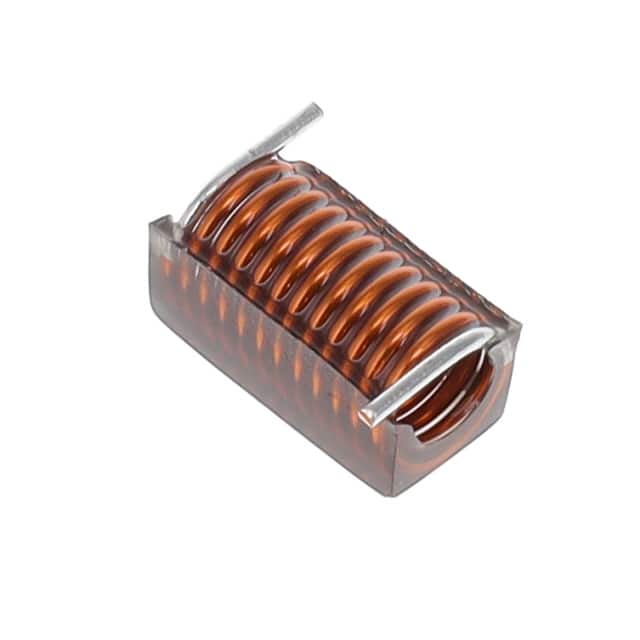

744918217FIXED IND 169NH 3A 25 MOHM SMD Würth Elektronik |
750 |
|
规格书 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 169 nH | ±5% | 3 A | - | Unshielded | 25mOhm Max | 100 @ 50MHz | 875MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
7447706015FIXED IND 1.5UH 11.5A 7MOHM SMD Würth Elektronik |
719 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 11.5 A | 20A | Shielded | 7mOhm Max | - | 50.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
74404086682FIXED IND 6.8MH 140MA 18.7OHM SM Würth Elektronik |
681 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±20% | 140 mA | 260mA | Shielded | 18.7Ohm | - | 509kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
74404052012FIXED IND 1.2UH 3.6A 23.4MOHM SM Würth Elektronik |
7,439 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±30% | 3.6 A | 5.2A | Shielded | 23.4mOhm | - | 130MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
74404063012FIXED IND 1.2UH 6.2A 11 MOHM SMD Würth Elektronik |
3,761 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±30% | 4.7 A | 7.3A | Shielded | 11mOhm | - | 106MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
744040630082FIXED IND 820NH 6A 10 MOHM SMD Würth Elektronik |
3,240 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±30% | 6 A | 9.5A | Shielded | 10mOhm | - | 144MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
