固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784383240047WE-MAIA SMT POWER INDUCTOR 0.47 Würth Elektronik |
5,961 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 3.4 A | 6.25A | Shielded | 40mOhm Max | - | 145MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

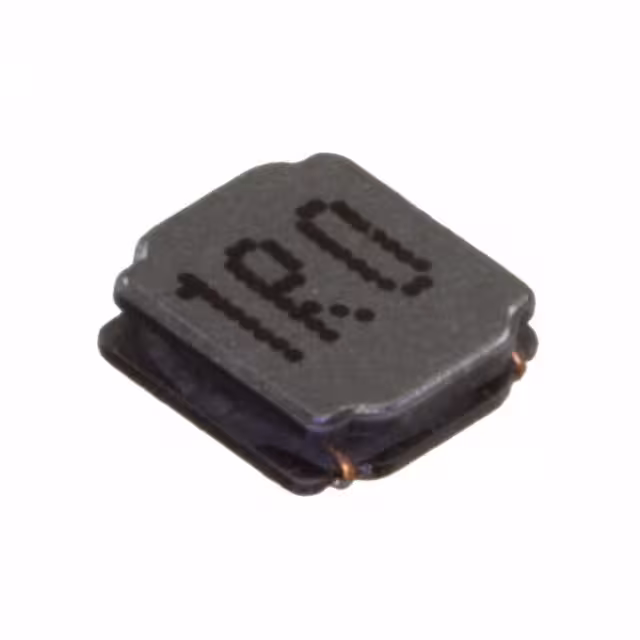

74404041010FIXED IND 1UH 2.52A 41 MOHM SMD Würth Elektronik |
4,410 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 2.52 A | 3.35A | Shielded | 41mOhm | - | 142MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.047" (1.20mm) |
|
|
784383240068WE-MAIA SMT POWER INDUCTOR 0.68 Würth Elektronik |
3,000 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 680 nH | ±30% | 3.2 A | 5.85A | Shielded | 59mOhm Max | - | 102MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
784383240056WE-MAIA SMT POWER INDUCTOR 0.56 Würth Elektronik |
2,904 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 560 nH | ±30% | 3.3 A | 6A | Shielded | 49mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
1.2mm.jpg)
|
74438334012FIXED IND 1.2UH 2.65A 77MOHM SMD Würth Elektronik |
2,882 |
|
规格书 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 2.65 A | 6A | Shielded | 77mOhm Max | - | 66MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
78438324068WE-MAIA SMT POWER INDUCTOR 6.8 U Würth Elektronik |
2,822 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 6.8 µH | ±20% | 900 mA | 1.6A | Shielded | 640mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
78438324056WE-MAIA SMT POWER INDUCTOR 5.6 U Würth Elektronik |
2,757 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 5.6 µH | ±20% | 950 mA | 1.75A | Shielded | 465mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
78438324012WE-MAIA SMT POWER INDUCTOR 1.2 U Würth Elektronik |
2,737 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.2 µH | ±20% | 2.4 A | 4.5A | Shielded | 80mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
1mm.jpg)
|
74438323082FIXED IND 8.2UH 700MA 743MOHM SM Würth Elektronik |
2,715 |
|
规格书 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 700 mA | 1.45A | Shielded | 743mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
78438324015WE-MAIA SMT POWER INDUCTOR 1.5 U Würth Elektronik |
2,487 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.5 µH | ±20% | 2.2 A | 3.7A | Shielded | 99mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
