固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

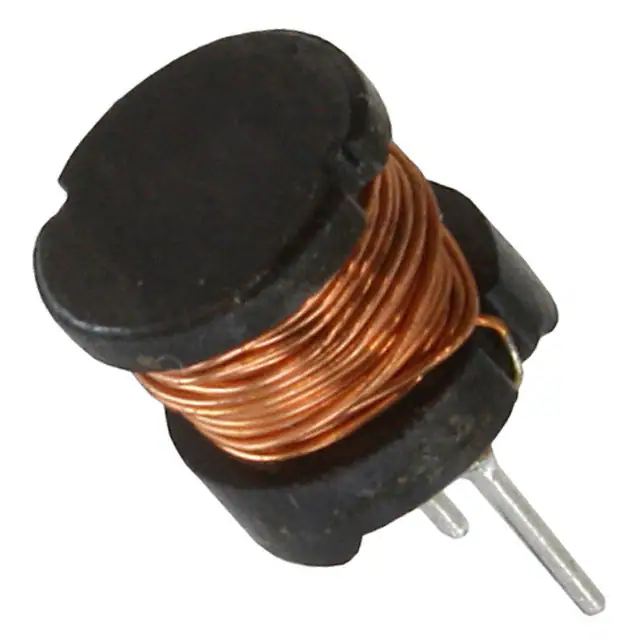

7447790221FIXED IND 220UH 600MA 800MOHM TH Würth Elektronik |
456 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 600 mA | 500mA | Unshielded | 800mOhm Max | - | 4.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
7440520012FIXED IND 1.2UH 3A 30 MOHM SMD Würth Elektronik |
320 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3 A | 3.5A | Shielded | 30mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
744043005FIXED IND 5.6UH 1.38A 85MOHM SMD Würth Elektronik |
293 |
|
规格书 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1.38 A | 1.3A | Shielded | 85mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
744052180FIXED IND 18UH 900MA 210MOHM SMD Würth Elektronik |
290 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 900 mA | 1A | Shielded | 210mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
744071102FIXED IND 1MH 230MA 3.5 OHM SMD Würth Elektronik |
270 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±30% | 230 mA | 340mA | Shielded | 3.5Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
744741471FIXED IND 470UH 440MA 3 OHM TH Würth Elektronik |
200 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 440 mA | 400mA | Unshielded | 3Ohm Max | - | 3.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
744779100FIXED IND 10UH 1.85A 50 MOHM TH Würth Elektronik |
141 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.85 A | 2.1A | Unshielded | 50mOhm Max | - | 27.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447412681FIXED IND 680UH 330MA 4 OHM TH Würth Elektronik |
133 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 330 mA | 350mA | Unshielded | 4Ohm Max | - | 2.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
|
744043008FIXED IND 8.2UH 1.25A 100MOHM SM Würth Elektronik |
123 |
|
规格书 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 1.25 A | 1.05A | Shielded | 100mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
7440520018FIXED IND 1.8UH 2.6A 35 MOHM SMD Würth Elektronik |
111 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 2.6 A | 3A | Shielded | 35mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
