| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

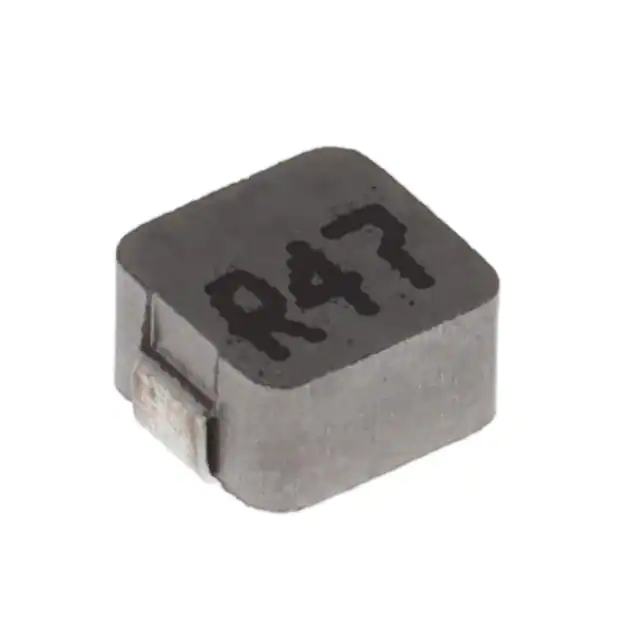

0320CDMCCDS-R47MCFIXED IND 470NH 7.5A 15.6MOHM SM Sumida America Components Inc. |
2,795 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 7.5 A | 5.2A | Shielded | 15.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|
0315CDMCCDS-R56MCFIXED IND 560NH 5.5A 25MOHM SMD Sumida America Components Inc. |
2,000 |
|
规格书 |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 5.5 A | 5.2A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.059" (1.50mm) |
|

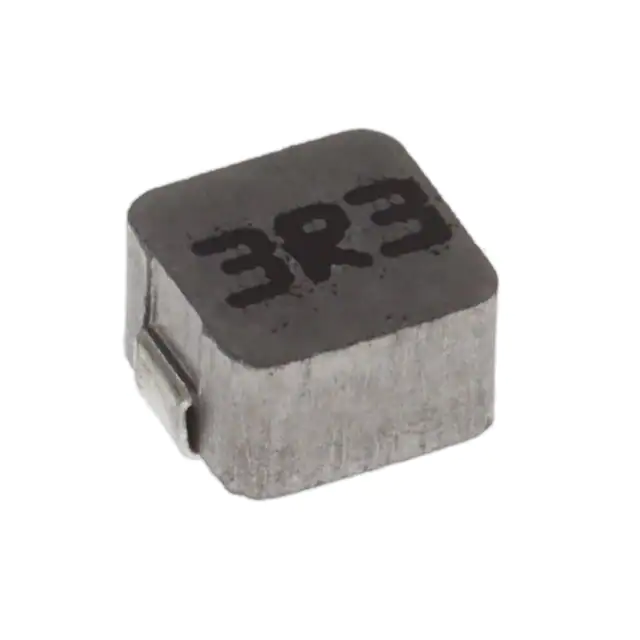

0320CDMCCDS-3R3MCFIXED IND 3.3UH 2.5A 108MOHM SMD Sumida America Components Inc. |
2,995 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 2.5 A | 2.1A | Shielded | 108mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|

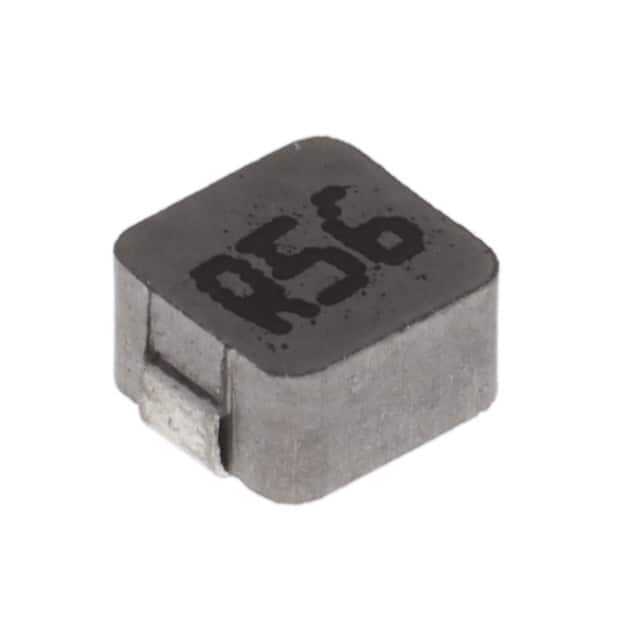

0320CDMCCDS-R56MCFIXED IND 560NH 7A 18 MOHM SMD Sumida America Components Inc. |
2,870 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 7 A | 4.8A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|
CDR7D28MNNP-3R6NCFIXED IND 3.6UH 3.45A 32.5 MOHM Sumida America Components Inc. |
2,821 |
|
规格书 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.6 µH | ±25% | 3.45 A | 3.55A | Shielded | 32.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|

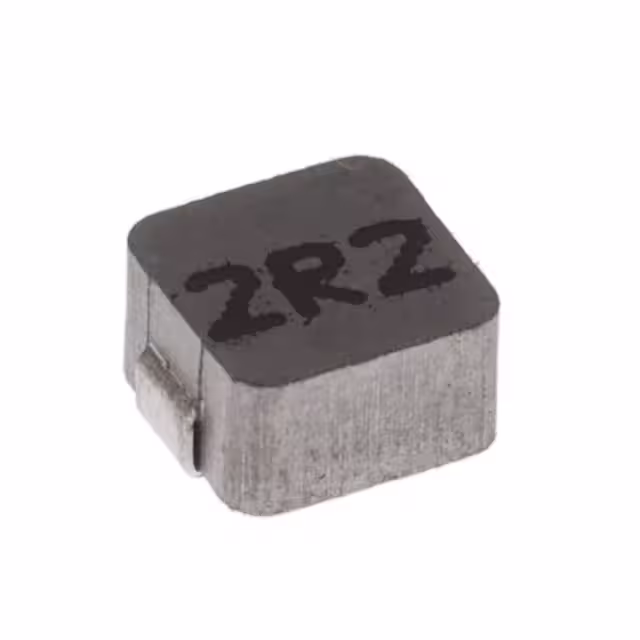

0320CDMCCDS-2R2MCFIXED IND 2.2UH 3.5A 72MOHM SMD Sumida America Components Inc. |
2,602 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.5 A | 2.9A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|

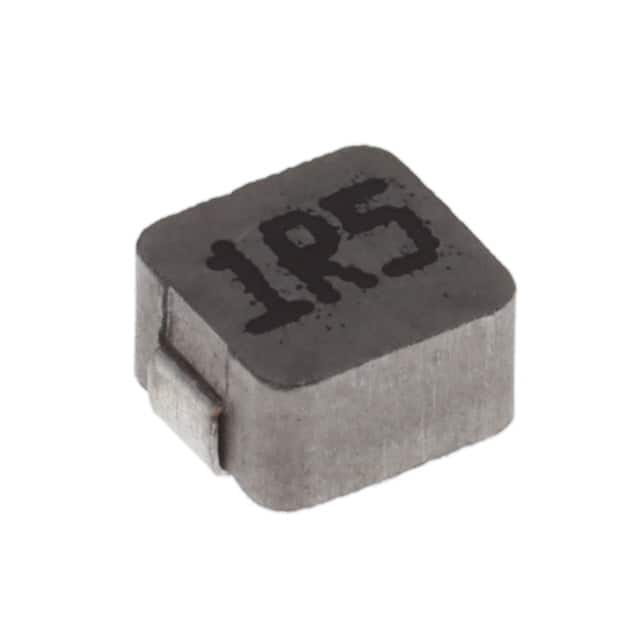

0320CDMCCDS-1R5MCFIXED IND 1.5UH 4A 45.6MOHM SMD Sumida America Components Inc. |
2,050 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 4 A | 3.2A | Shielded | 45.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|

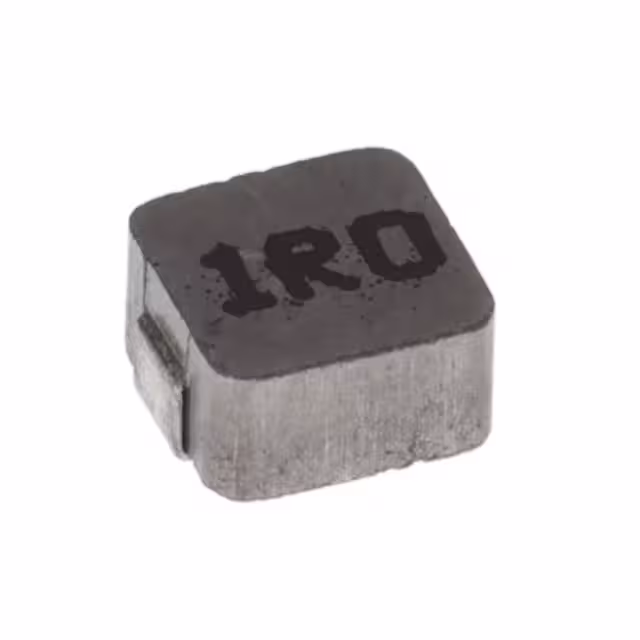

0320CDMCCDS-1R0MCFIXED IND 1UH 5.5A 31.2MOHM SMD Sumida America Components Inc. |
1,822 |
|
规格书 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 5.5 A | 4.4A | Shielded | 31.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|
|
CDR7D28MNNP-1R2NCFIXED IND 1.2UH 4.5A 20.5MOHM SM Sumida America Components Inc. |
990 |
|
规格书 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±25% | 4.5 A | 5.9A | Shielded | 20.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
|
0315CDMCCDS-1R0MCFIXED IND 1UH 4.3A 41 MOHM SMD Sumida America Components Inc. |
2,997 |
|
规格书 |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 4.3 A | 4.1A | Shielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.059" (1.50mm) |
