固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

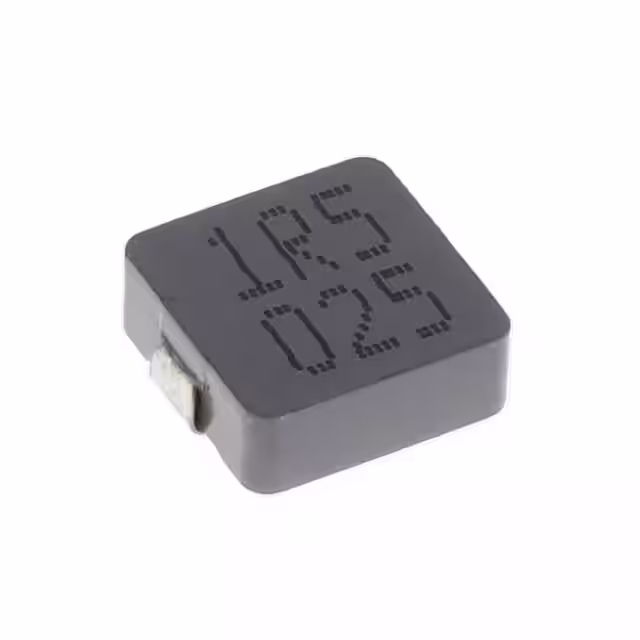

104CDMCDDS-1R5MCFIXED IND 1.5UH 16.5A 6.6MOHM SM Sumida America Components Inc. |
470 |
|
规格书 |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 16.5 A | 30.6A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

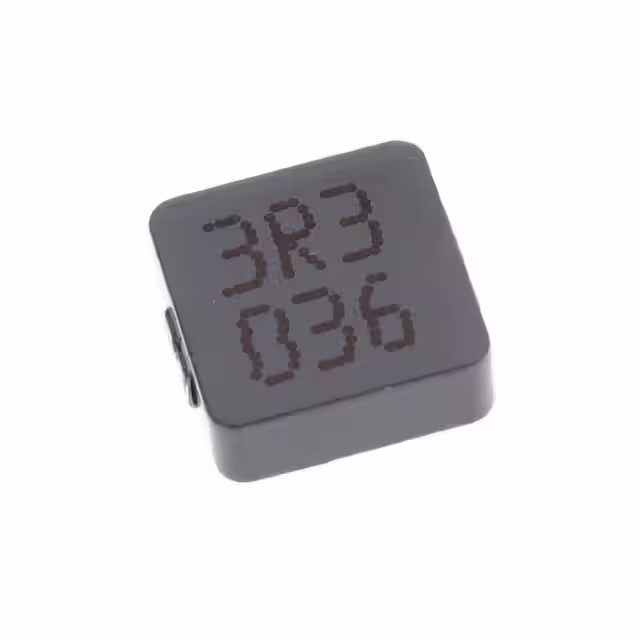

104CDMCDDS-3R3MCFIXED IND 3.3UH 11.8A 13MOHM SMD Sumida America Components Inc. |
453 |
|
规格书 |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 11.8 A | 19A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

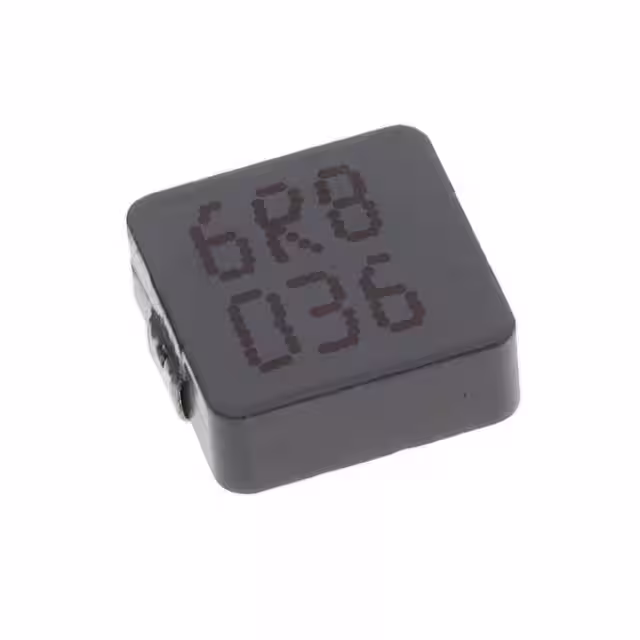

104CDMCDDS-6R8MCFIXED IND 6.8UH 8.8A 24MOHM SMD Sumida America Components Inc. |
438 |
|
规格书 |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 8.8 A | 14.5A | Shielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH105RNP-820NCFIXED IND 82UH 1.45A 227MOHM SMD Sumida America Components Inc. |
495 |
|
规格书 |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±30% | 1.45 A | 1.5A | Shielded | 227mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|

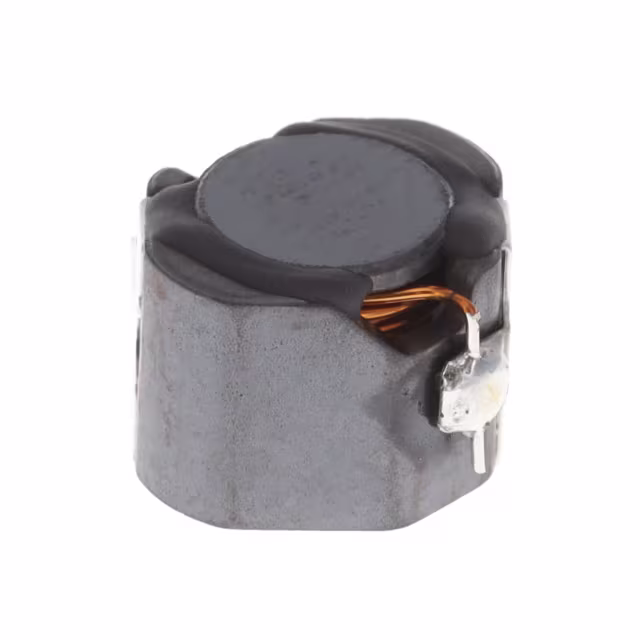

CDRH80D65BT150NP-680MCFIXED IND 68UH 1.57A 131MOHM SMD Sumida America Components Inc. |
483 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.57 A | 1.67A | Shielded | 131mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

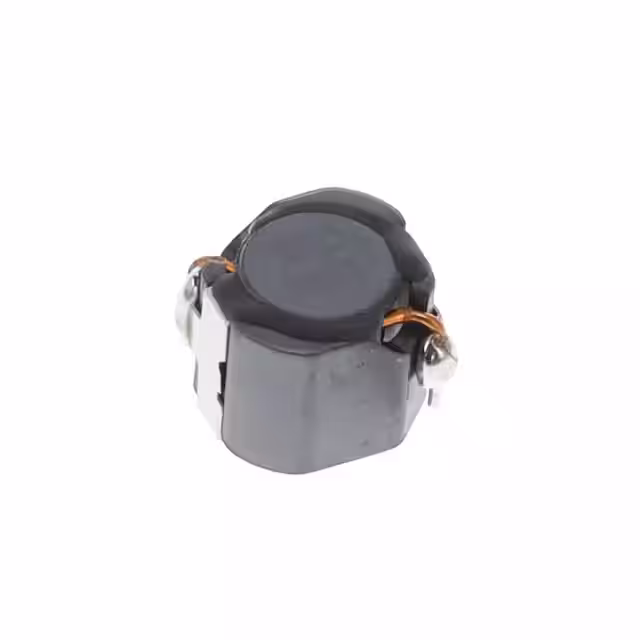

CDRH80D65BT150NP-1R0NCFIXED IND 1UH 8.74A 6.4MOHM SMD Sumida America Components Inc. |
475 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 8.74 A | 14.3A | Shielded | 6.4mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
CDRH80D65BT150NP-3R9NCFIXED IND 3.9UH 6.1A 11.8MOHM SM Sumida America Components Inc. |
464 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±30% | 6.1 A | 7.05A | Shielded | 11.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

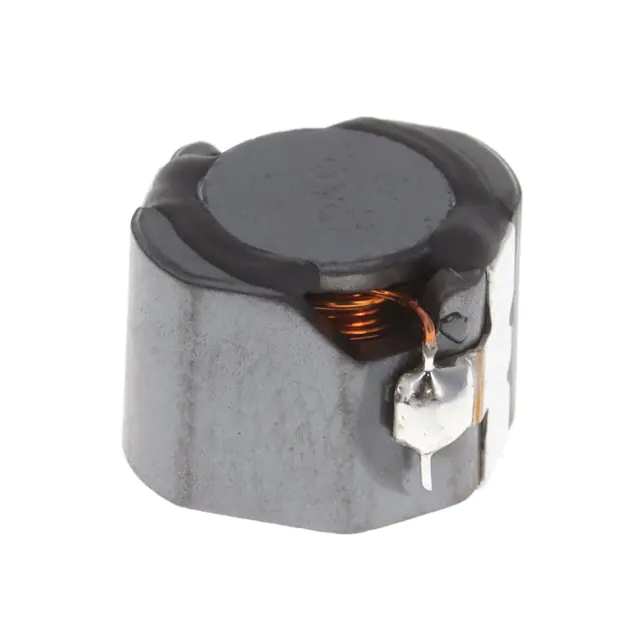

CDRH80D65BT150NP-151MCFIXED IND 150UH 1.09A 267MOHM SM Sumida America Components Inc. |
359 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.09 A | 1.17A | Shielded | 267mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

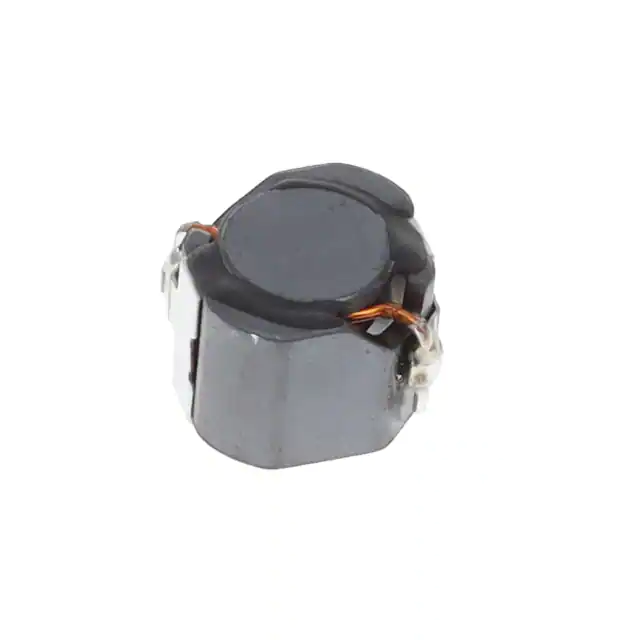

CDRH80D65BT150NP-3R3NCFIXED IND 3.3UH 6.35A 10.8 MOHM Sumida America Components Inc. |
311 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 6.35 A | 7.65A | Shielded | 10.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

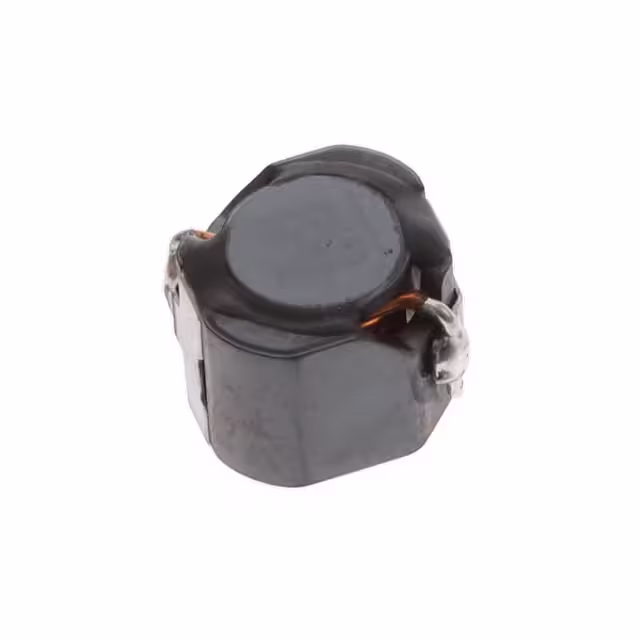

CDRH80D65BT150NP-100MCFIXED IND 10UH 4.54A 19.8MOHM SM Sumida America Components Inc. |
285 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 4.54 A | 4.5A | Shielded | 19.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
