固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH125L125NP-102MCFIXED IND 1MH 500MA 1.9MOHM SMD Sumida America Components Inc. |
235 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 500 mA | 520mA | Shielded | 1.9Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH125L125NP-680MCFIXED IND 68UH 2.05A 131MOHM SMD Sumida America Components Inc. |
224 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 2.05 A | 2.02A | Shielded | 131mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH125L125NP-2R7NCFIXED IND 2.7UH 7.4A 12.8MOHM SM Sumida America Components Inc. |
166 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 7.4 A | 10.2A | Shielded | 12.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

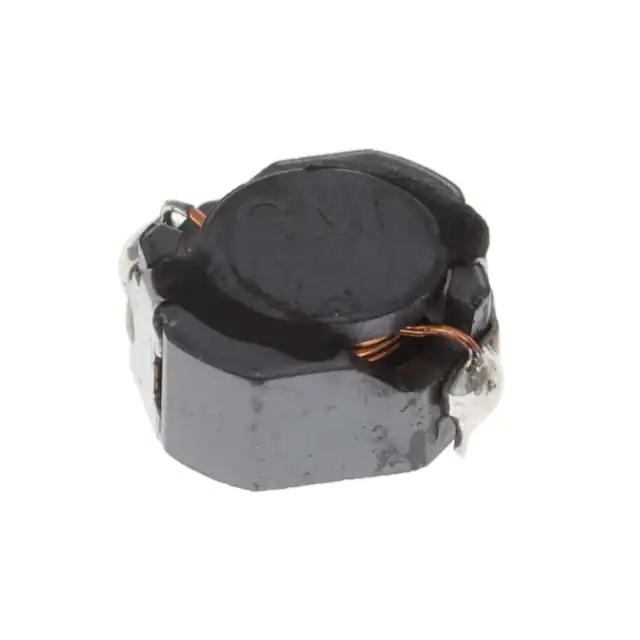

CDRH50D28BT150NP-100MCFIXED IND 10UH 1.75A 95 MOHM SMD Sumida America Components Inc. |
3,071 |
|
规格书 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.75 A | 1.7A | Shielded | 95mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
0415CDMCCDS-R22MCFIXED IND 220NH 12A 7.2MOHM SMD Sumida America Components Inc. |
5,495 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 12 A | 14A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-6R8MCFIXED IND 6.8UH 2.1A 206.4 MOHM Sumida America Components Inc. |
2,888 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 2.1 A | 2.5A | Shielded | 206.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-2R2MCFIXED IND 2.2UH 3.3A 78MOHM SMD Sumida America Components Inc. |
2,455 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.3 A | 5.5A | Shielded | 78mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-3R3MCFIXED IND 3.3UH 3.2A 92.4MOHM SM Sumida America Components Inc. |
1,823 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 3.2 A | 4A | Shielded | 92.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|

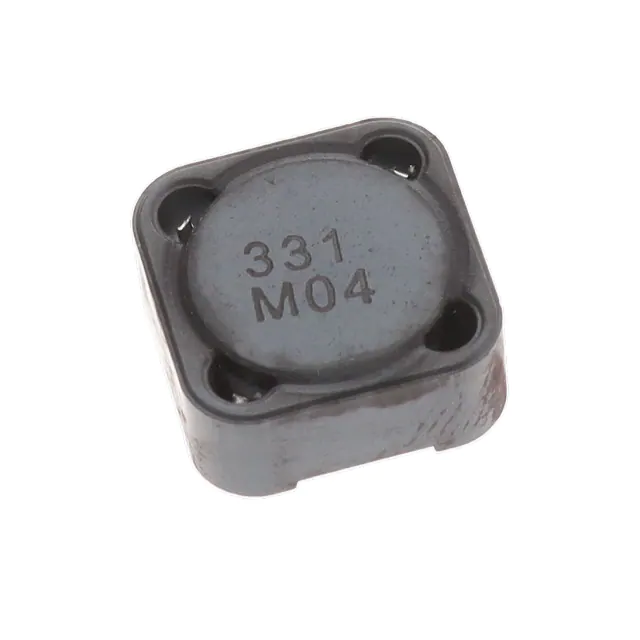

CDRH125L125NP-331MCFIXED IND 330UH 900MA 674MOHM SM Sumida America Components Inc. |
1,211 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 900 mA | 900mA | Shielded | 674mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH3D16NP-150NCFIXED IND 15UH 450MA 295MOHM SMD Sumida America Components Inc. |
1,166 |
|
规格书 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 450 mA | - | Shielded | 295mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
