固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH125L125NP-681MCFIXED IND 680UH 650MA 1.22OHM SM Sumida America Components Inc. |
846 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±20% | 650 mA | 620mA | Shielded | 1.22Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

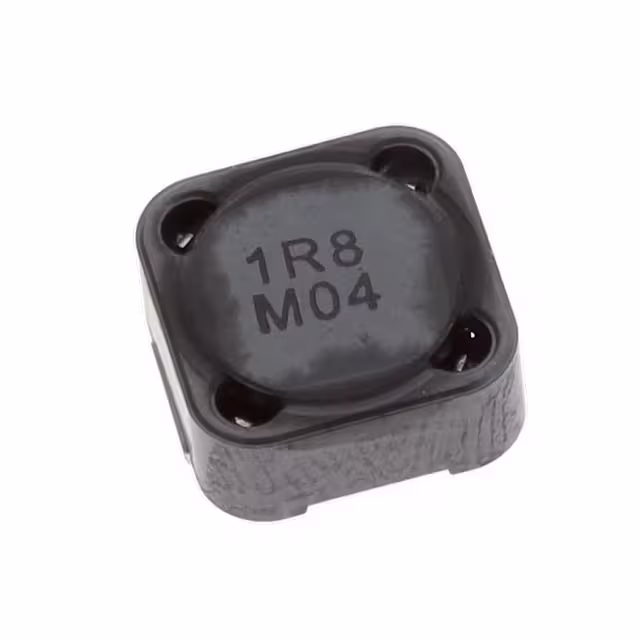

CDRH125L125NP-1R8NCFIXED IND 1.8UH 8A 10.6MOHM SMD Sumida America Components Inc. |
490 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±30% | 8 A | 12.6A | Shielded | 10.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

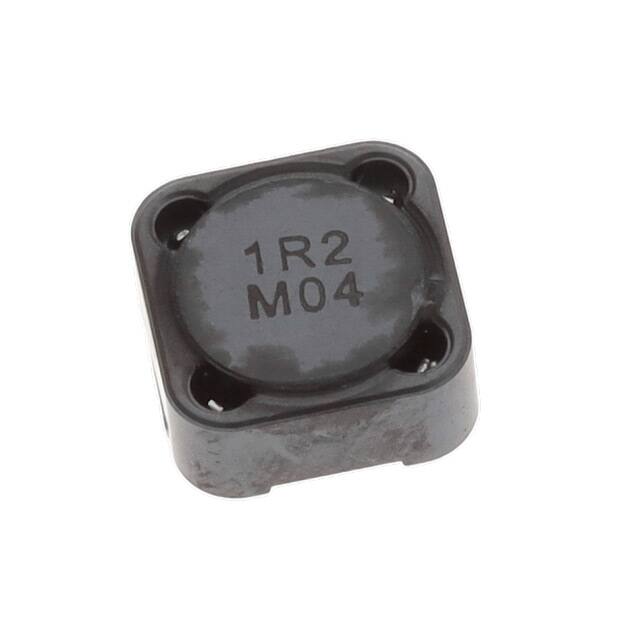

CDRH125L125NP-1R2NCFIXED IND 1.2UH 9A 8.5 MOHM SMD Sumida America Components Inc. |
485 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±30% | 9 A | 14.2A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

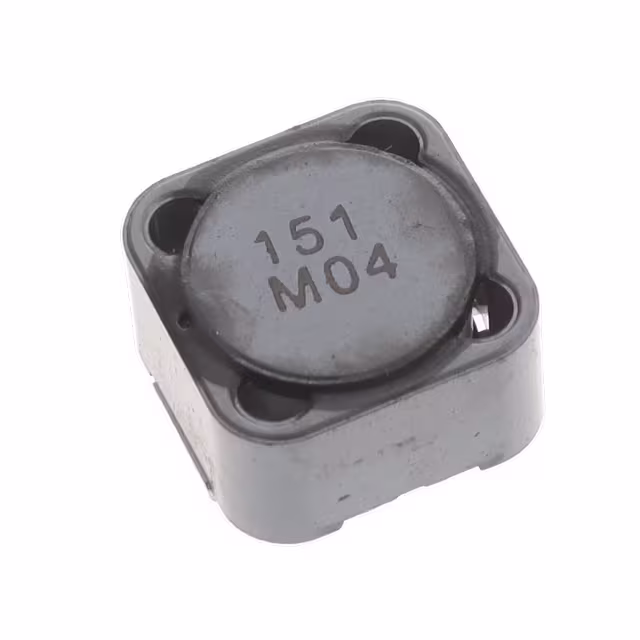

CDRH127L125NP-151MCFIXED IND 150UH 1.8A 236MOHM SMD Sumida America Components Inc. |
474 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 150 µH | ±20% | 1.8 A | 2.1A | Shielded | 236mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

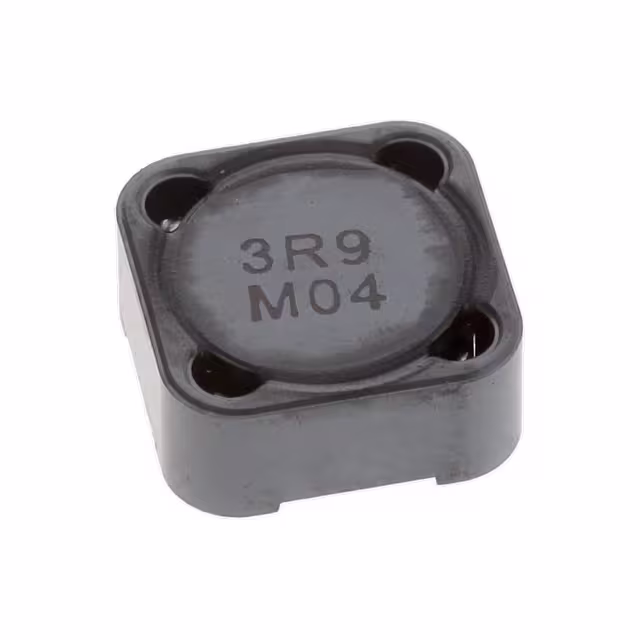

CDRH125L125NP-3R9NCFIXED IND 3.9UH 6.8A 15MOHM SMD Sumida America Components Inc. |
466 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±30% | 6.8 A | 8.2A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

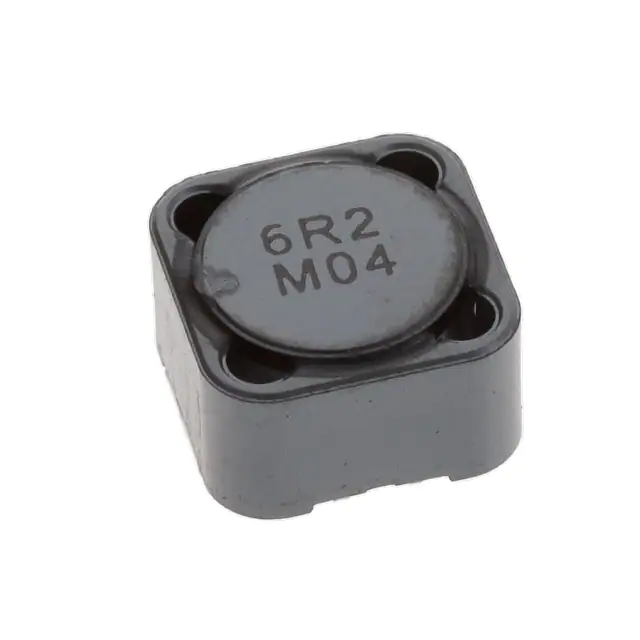

CDRH127L125NP-6R2NCFIXED IND 6.2UH 7.5A 14.6MOHM SM Sumida America Components Inc. |
428 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 6.2 µH | ±30% | 7.5 A | 10.2A | Shielded | 14.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

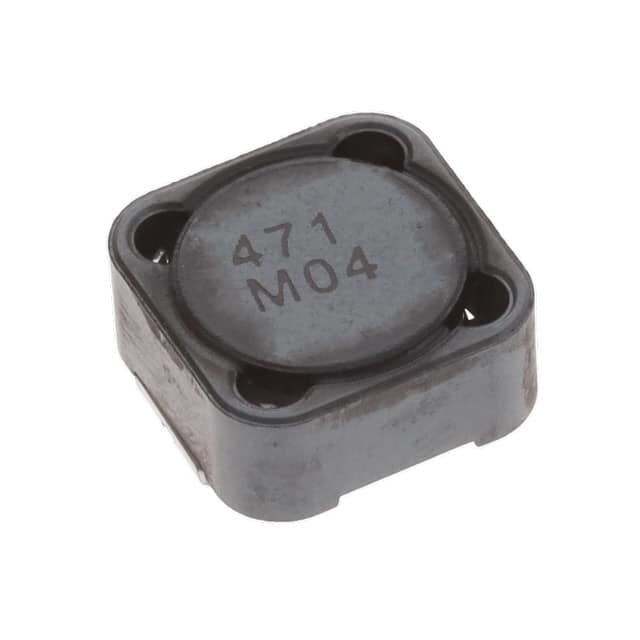

CDRH125L125NP-471MCFIXED IND 470UH 810MA 858MOHM SM Sumida America Components Inc. |
404 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 810 mA | 750mA | Shielded | 858mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

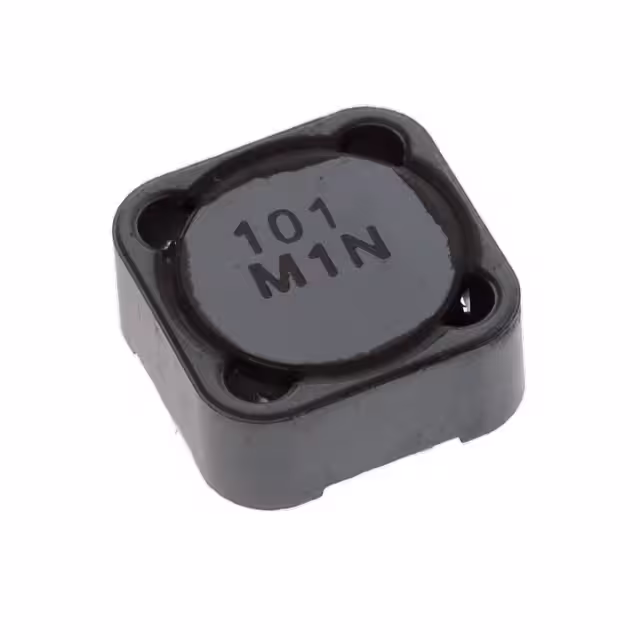

CDRH125L125NP-101MCFIXED IND 100UH 1.82A 166MOHM SM Sumida America Components Inc. |
367 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.82 A | 1.7A | Shielded | 166mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

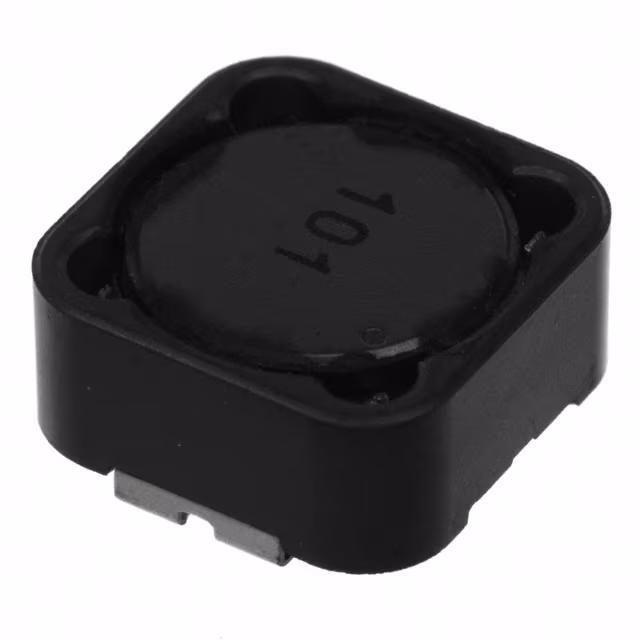

CDRH125/LDNP-101MCFIXED IND 100UH 1.6A 187MOHM SMD Sumida America Components Inc. |
551 |
|
- |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.6 A | - | Shielded | 187mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH124NP-220MCFIXED IND 22UH 2.9A 66 MOHM SMD Sumida America Components Inc. |
324 |
|
规格书 |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.9 A | - | Shielded | 66mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
