固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH80D65BT150NP-150MCFIXED IND 15UH 3.16A 35MOHM SMD Sumida America Components Inc. |
998 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 3.16 A | 3.55A | Shielded | 35mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
0830CDMCCDS-R22MCFIXED IND 220NH 27A 2.3 MOHM SMD Sumida America Components Inc. |
2,000 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 27 A | 36A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-220MCFIXED IND 22UH 3A 145 MOHM SMD Sumida America Components Inc. |
1,028 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 3 A | 3.9A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
CDRH60D45BT150NP-221MCFIXED IND 220UH 570MA 864MOHM SM Sumida America Components Inc. |
1,651 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 570 mA | 620mA | Shielded | 864mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
|
0830CDMCCDS-2R2MCFIXED IND 2.2UH 10A 13 MOHM SMD Sumida America Components Inc. |
1,611 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 10 A | 11.7A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-3R3MCFIXED IND 3.3UH 9.5A 19 MOHM SMD Sumida America Components Inc. |
1,002 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 9.5 A | 9.5A | Shielded | 19mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-1R0MCFIXED IND 1UH 17A 5.4 MOHM SMD Sumida America Components Inc. |
776 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 17 A | 17A | Shielded | 5.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-R47MCFIXED IND 470NH 23A 3.1 MOHM SMD Sumida America Components Inc. |
753 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 23 A | 23A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-R33MCFIXED IND 330NH 25A 2.6 MOHM SMD Sumida America Components Inc. |
753 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 25 A | 28A | Shielded | 2.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|

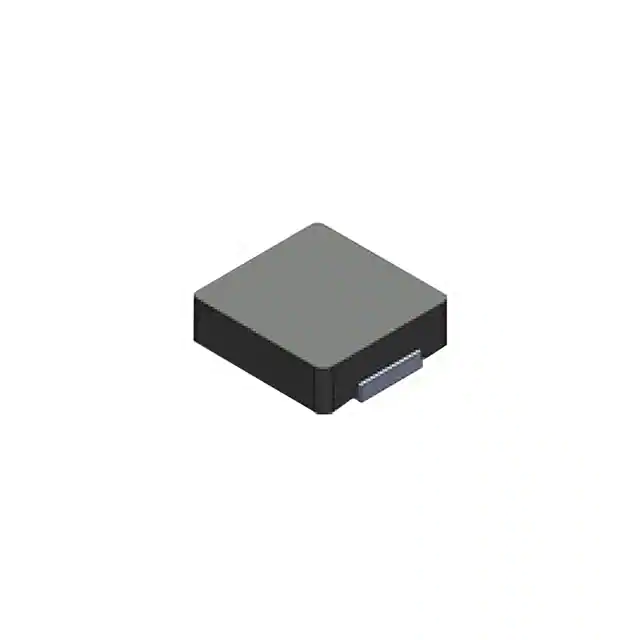

0415CDMCCDS-R56MCFIXED IND 560NH 8.7A 14.4MOHM SM Sumida America Components Inc. |
5,990 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 8.7 A | 8.7A | Shielded | 14.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
