固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIAP-03-102KFIXED IND 1MH 870MA 844 MOHM TH Abracon LLC |
2,684 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 1 mH | ±10% | 870 mA | - | Unshielded | 844mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-103KFIXED IND 10MH 266MA 7.3 OHM TH Abracon LLC |
2,343 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 10 mH | ±10% | 266 mA | - | Unshielded | 7.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-471KFIXED IND 470UH 1.24A 380MOHM TH Abracon LLC |
1,405 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 470 µH | ±10% | 1.24 A | - | Unshielded | 380mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-121KFIXED IND 120UH 2.54A 113MOHM TH Abracon LLC |
791 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 120 µH | ±10% | 2.54 A | - | Unshielded | 113mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
ASPIAIG-F6050-4R7M-TFIXED IND 4.7UH 8.5A 18.4MOHM SM Abracon LLC |
1,820 |
|
规格书 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 8.5 A | 8A | Shielded | 18.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6050 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|

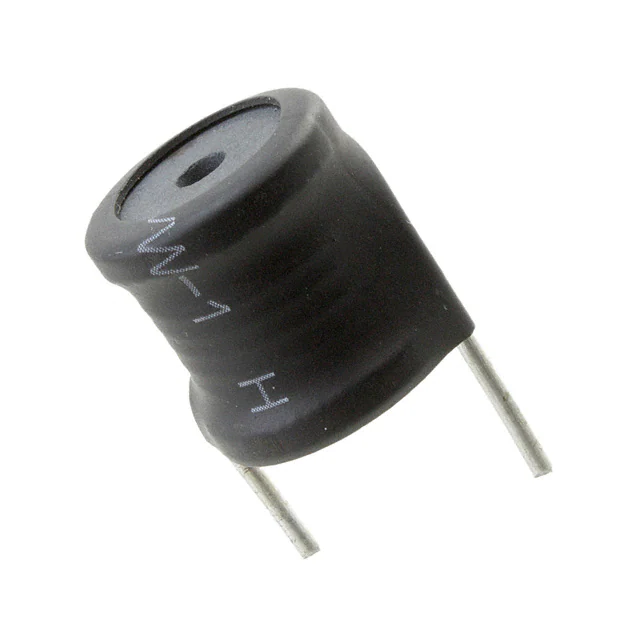

AIRD-02-101KFIXED IND 100UH 4A 80 MOHM TH Abracon LLC |
796 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | 10A | Unshielded | 80mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-561KFIXED IND 560UH 1.6A 388 MOHM TH Abracon LLC |
540 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.6 A | 4.1A | Unshielded | 388mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|

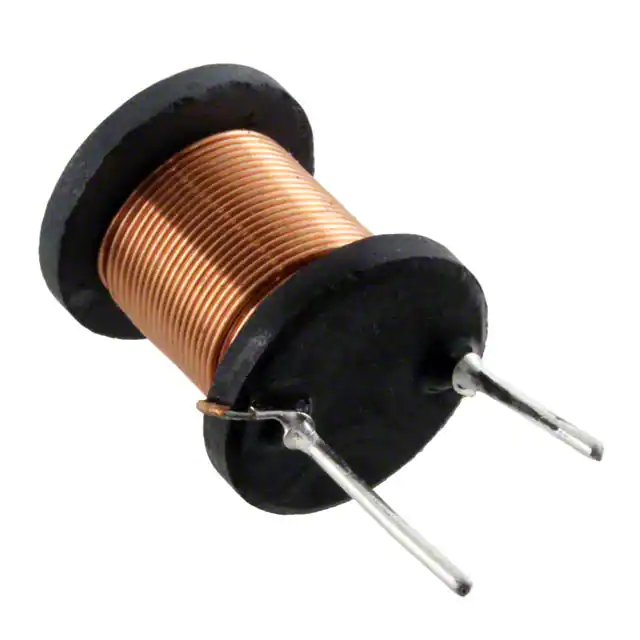

AIUR-15-471KFIXED IND 470UH 1.5A 330 MOHM TH Abracon LLC |
1,050 |
|
规格书 |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.5 A | - | Unshielded | 330mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
.jpg)
|
AIRD-03-101KFIXED IND 100UH 9A 34 MOHM TH Abracon LLC |
183 |
|
规格书 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 9 A | 13A | Unshielded | 34mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
AIRD-03-102KFIXED IND 1MH 2A 426 MOHM TH Abracon LLC |
426 |
|
规格书 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 2 A | 4.1A | Unshielded | 426mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
