固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

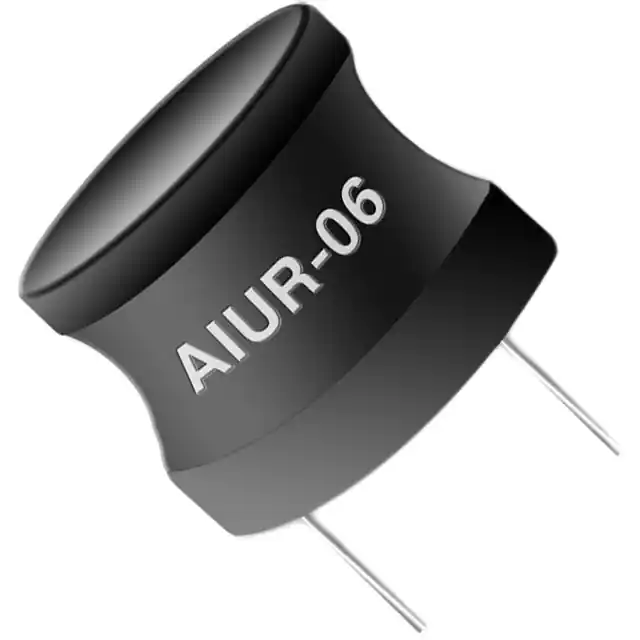

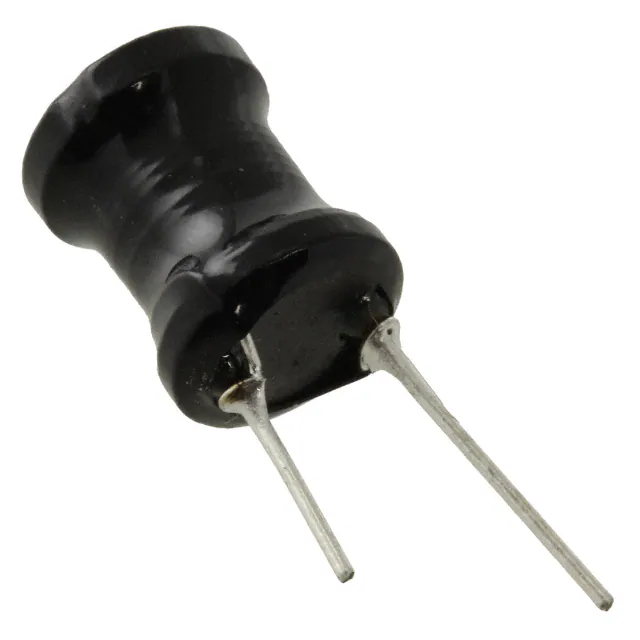

AIUR-06-151KFIXED IND 150UH 1.9A 162 MOHM TH Abracon LLC |
1,426 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.9 A | 2.4A | Unshielded | 162mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
AIUR-06-101KFIXED IND 100UH 2.1A 108 MOHM TH Abracon LLC |
1,008 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.1 A | 2.8A | Unshielded | 108mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
AIUR-06-100KFIXED IND 10UH 5A 31 MOHM TH Abracon LLC |
545 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 5 A | 8.8A | Unshielded | 31mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
ASPI-0403S-222M-TFIXED IND 2.2MH 100MA 8.5OHM SMD Abracon LLC |
11,888 |
|
规格书 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 mH | ±20% | 100 mA | - | Shielded | 8.5Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
ASPI-0403S-220M-TFIXED IND 22UH 700MA 110MOHM SMD Abracon LLC |
5,418 |
|
规格书 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 700 mA | - | Shielded | 110mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
ASPI-0403S-470M-TFIXED IND 47UH 500MA 230MOHM SMD Abracon LLC |
3,367 |
|
规格书 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 500 mA | - | Shielded | 230mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
AIUR-06-471KFIXED IND 470UH 1A 568 MOHM TH Abracon LLC |
1,205 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1 A | 1.3A | Unshielded | 568mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
AIAP-03-470KFIXED IND 47UH 3.98A 35 MOHM TH Abracon LLC |
40,712 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 47 µH | ±10% | 3.98 A | - | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-272KFIXED IND 2.7MH 530MA 2.06OHM TH Abracon LLC |
11,611 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 2.7 mH | ±10% | 530 mA | - | Unshielded | 2.06Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-101KFIXED IND 100UH 2.79A 90 MOHM TH Abracon LLC |
3,965 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 100 µH | ±10% | 2.79 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
