固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

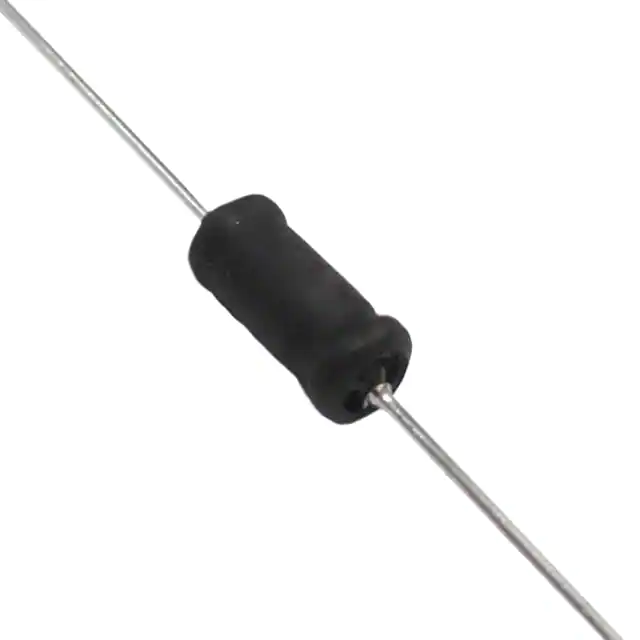

AIAP-02-103KFIXED IND 10MH 140MA 26.4 OHM TH Abracon LLC |
3,292 |
|
规格书 |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 10 mH | ±10% | 140 mA | - | Unshielded | 26.4Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|

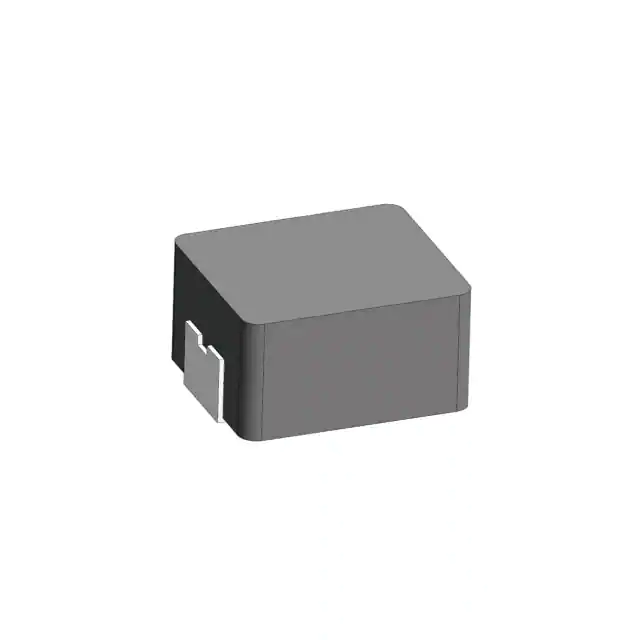

AMPLA4020Q-2R2MTFIXED IND 2.2UH 4A 61 MOHM SMD Abracon LLC |
17,272 |
|
规格书 |
AMPLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 4 A | 6A | Shielded | 61mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

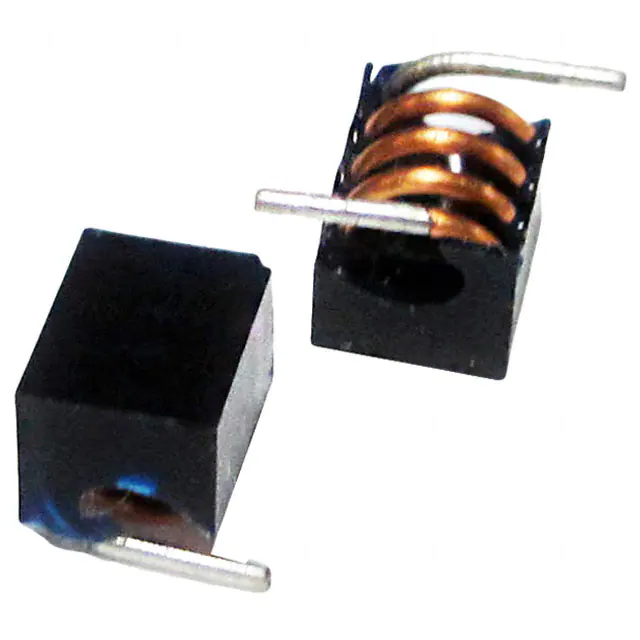

AIAC-4125C-R538J-TFIXED IND 538NH 2A 42 MOHM SMD Abracon LLC |
4,656 |
|
规格书 |
AIAC-4125C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 538 nH | ±5% | 2 A | - | Unshielded | 42mOhm Max | 100 @ 50MHz | 400MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.354" L x 0.173" W (9.00mm x 4.40mm) | 0.197" (5.00mm) |
|

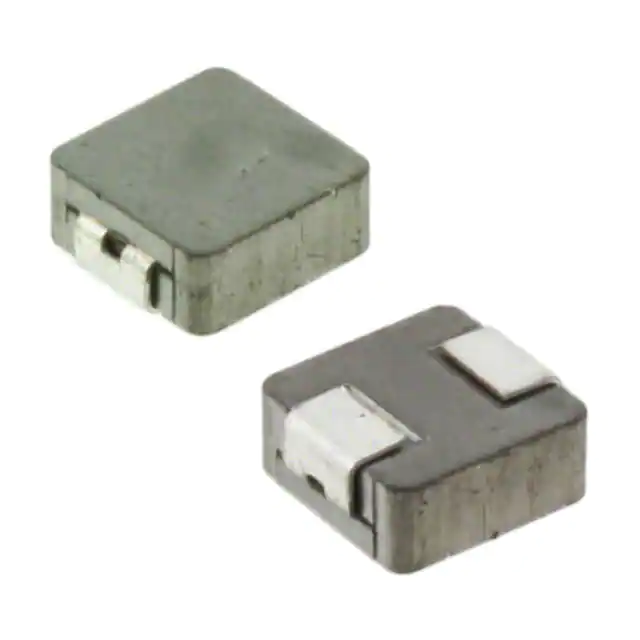

ASPI-0630HI-6R8M-T15FIXED IND 6.8UH 4.5A 60 MOHM SMD Abracon LLC |
7,082 |
|
规格书 |
ASPI-0630HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630HI-3R3M-T15FIXED IND 3.3UH 6.8A 30 MOHM SMD Abracon LLC |
4,399 |
|
规格书 |
ASPI-0630HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6.8 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|

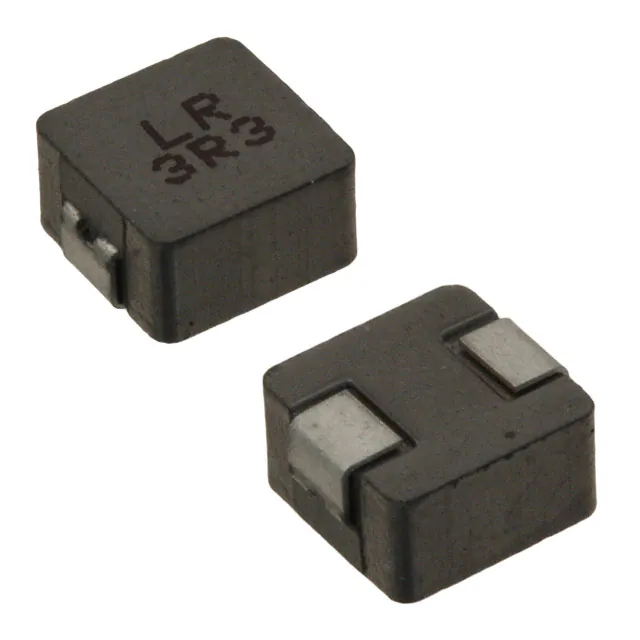

ASPI-0530LR-4R7M-T2FIXED IND 4.7UH 4.5A 60 MOHM SMD Abracon LLC |
9,125 |
|
规格书 |
ASPI-0530LR | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 4.5 A | 4.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
ASPI-0315FS-100M-T2FIXED IND 10UH 1.1A 220 MOHM SMD Abracon LLC |
5,140 |
|
规格书 |
ASPI-0315FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 770 mA | 720mA | Shielded | 325mOhm Max | - | 41MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ASPI-8040S-331M-TFIXED IND 330UH 640MA 889MOHM SM Abracon LLC |
14,122 |
|
规格书 |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 640 mA | 680mA | Shielded | 889mOhm | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
ASPI-0630HI-2R2M-T15FIXED IND 2.2UH 8A 20 MOHM SMD Abracon LLC |
5,952 |
|
规格书 |
ASPI-0630HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|

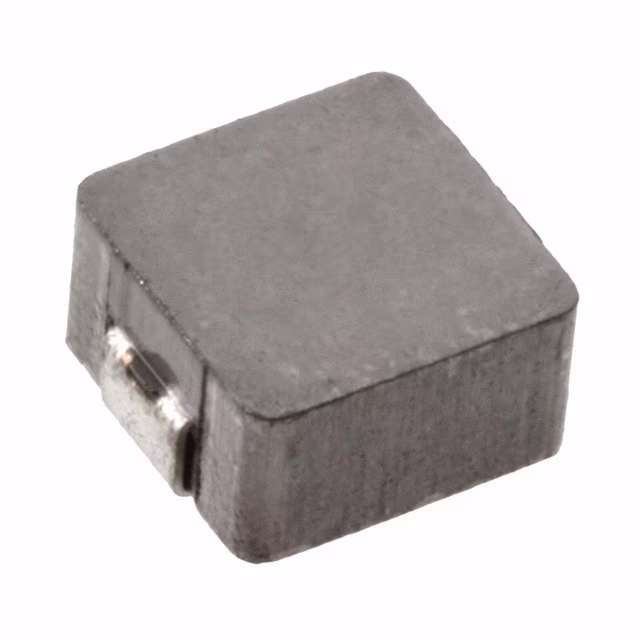

ASPI-0530HI-2R2M-T2FIXED IND 2.2UH 5.5A 35 MOHM SMD Abracon LLC |
3,027 |
|
规格书 |
ASPI-0530HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 5.5 A | 9A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
