固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

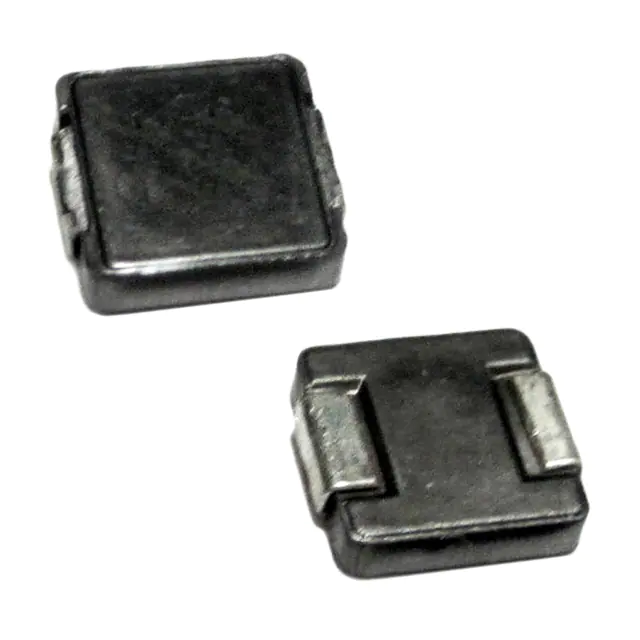

ASPI-7318-R33M-TFIXED IND 330NH 20A 3.9 MOHM SMD Abracon LLC |
14,226 |
|
规格书 |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 20 A | 28A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
ASPI-0630LR-4R7M-T15FIXED IND 4.7UH 5.5A 35 MOHM SMD Abracon LLC |
13,603 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 5.5 A | 6.5A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-6R8M-T15FIXED IND 6.8UH 4.5A 60 MOHM SMD Abracon LLC |
3,010 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 4.5 A | 6A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-2R2M-T15FIXED IND 2.2UH 8A 18.5 MOHM SMD Abracon LLC |
1,617 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 8 A | 10A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-5R6M-T15FIXED IND 5.6UH 6A 35.5 MOHM SMD Abracon LLC |
1,523 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 5.6 µH | ±20% | 6 A | 5A | Shielded | 35.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|

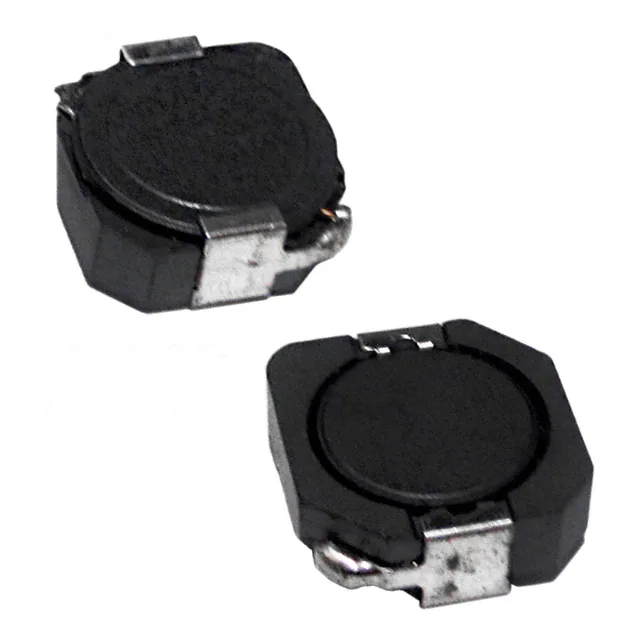

ASPI-104S-150M-TFIXED IND 15UH 3.1A 50 MOHM SMD Abracon LLC |
5,370 |
|
规格书 |
ASPI-104S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.1 A | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.157" (4.00mm) |
|

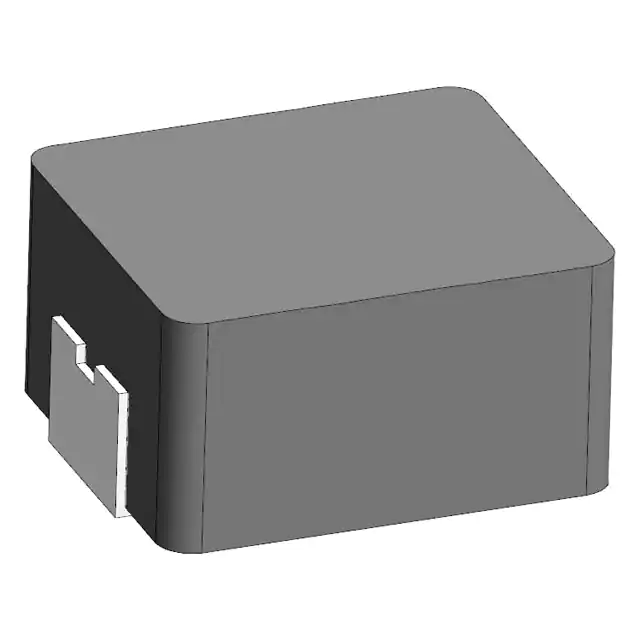

AMDLA4020S-4R7MTFIXED IND 4.7UH 3A 70 MOHM SMD Abracon LLC |
18,782 |
|
规格书 |
AMDLA4020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 3 A | 4.5A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
AIUR-06-221KFIXED IND 220UH 1.5A 252 MOHM TH Abracon LLC |
2,331 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.5 A | 1.9A | Unshielded | 252mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
AIUR-06-331KFIXED IND 330UH 1.3A 394 MOHM TH Abracon LLC |
3,444 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.3 A | 1.62A | Unshielded | 394mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
AIUR-06-330KFIXED IND 33UH 3.6A 51 MOHM TH Abracon LLC |
1,761 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 3.6 A | 5.2A | Unshielded | 51mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
