固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIAP-02-220KFIXED IND 22UH 2.7A 50 MOHM TH Abracon LLC |
17,337 |
|
规格书 |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 22 µH | ±10% | 2.7 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|

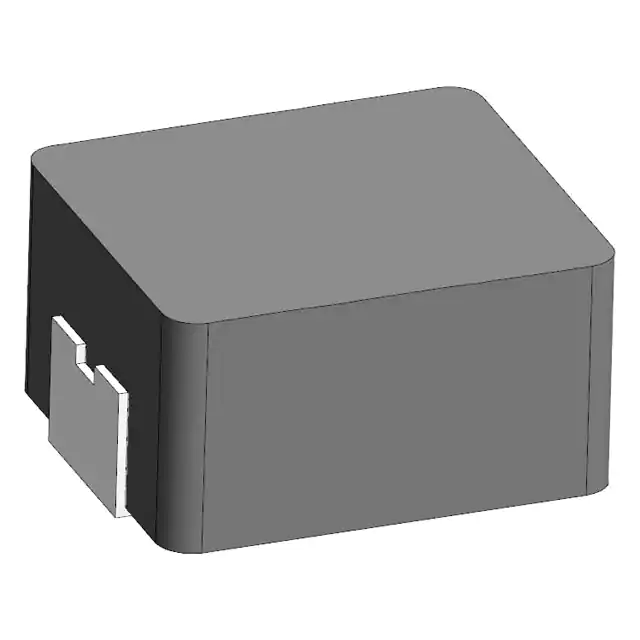

AMDLA3020S-2R2MTFIXED IND 2.2UH 3.3A 69MOHM SMD Abracon LLC |
12,384 |
|
规格书 |
AMDLA3020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.3 A | 4.8A | Shielded | 69mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
AMDLA3020S-1R0MTFIXED IND 1UH 5A 30 MOHM SMD Abracon LLC |
8,865 |
|
规格书 |
AMDLA3020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 5 A | 8A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
AIAP-02-102KFIXED IND 1MH 400MA 2.3 OHM TH Abracon LLC |
20,410 |
|
规格书 |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 1 mH | ±10% | 400 mA | - | Unshielded | 2.3Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
ASPI-0630LR-100M-T15FIXED IND 10UH 4A 68 MOHM SMD Abracon LLC |
55,584 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 4 A | 5.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-150M-T15FIXED IND 15UH 3A 120 MOHM SMD Abracon LLC |
44,216 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 15 µH | ±20% | 3 A | 5A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
ASPI-0530HI-1R0M-T2FIXED IND 1UH 7A 14 MOHM SMD Abracon LLC |
4,944 |
|
规格书 |
ASPI-0530HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 7 A | 11A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-3R3M-T15FIXED IND 3.3UH 6.5A 28 MOHM SMD Abracon LLC |
35,494 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6.5 A | 10A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-1R0M-T15FIXED IND 1UH 12A 9 MOHM SMD Abracon LLC |
25,229 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 12 A | 15A | Shielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|

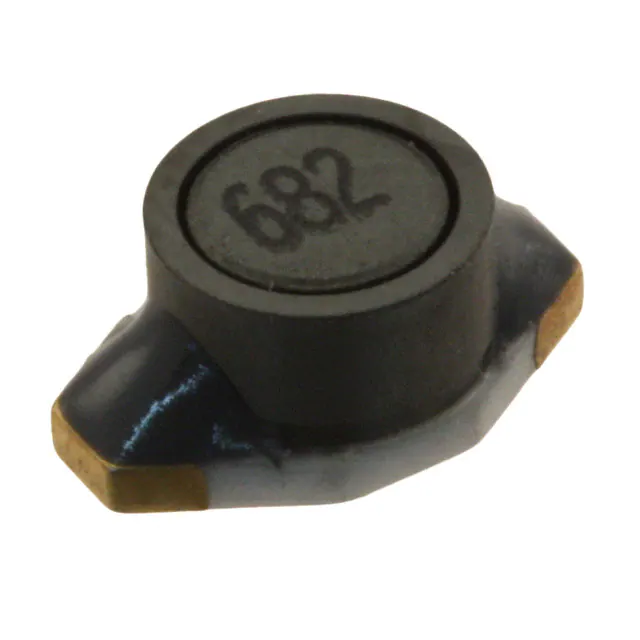

ASPI-0403S-682M-TFIXED IND 6.8MH 40MA 25 OHM SMD Abracon LLC |
7,059 |
|
规格书 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 mH | ±20% | 40 mA | - | Shielded | 25Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
