固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0418FS-100M-T3FIXED IND 10UH 1.3A 150 MOHM SMD Abracon LLC |
9,400 |
|
规格书 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm Max | - | 25MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
ASPI-4030S-5R6M-TFIXED IND 5.6UH 1.95A 65MOHM SMD Abracon LLC |
21,482 |
|
规格书 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 5.6 µH | ±20% | 1.95 A | 2.6A | Shielded | 65mOhm | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
AIAP-01-470K-TFIXED IND 47UH 760MA 350 MOHM TH Abracon LLC |
12,306 |
|
规格书 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 760 mA | - | Unshielded | 350mOhm Max | - | 6MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
|
AIAP-01-120K-TFIXED IND 12UH 1.4A 110 MOHM TH Abracon LLC |
8,617 |
|
规格书 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±10% | 1.4 A | - | Unshielded | 110mOhm Max | - | 17MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|

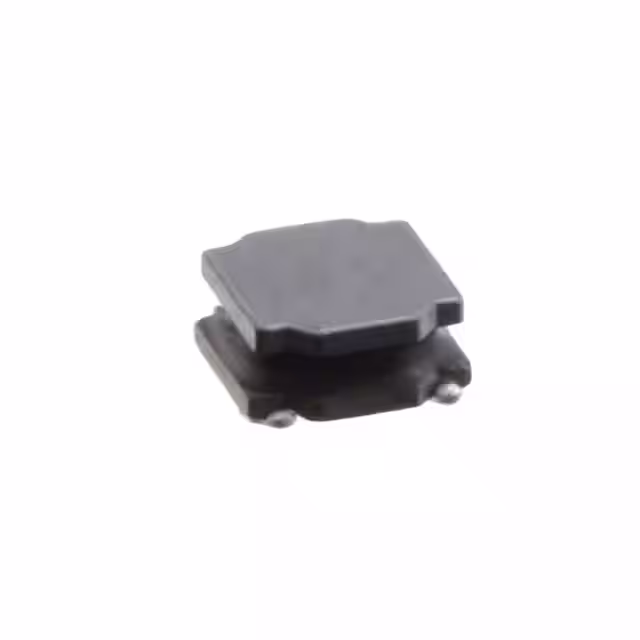

ASPI-4020S-100M-TFIXED IND 10UH 900MA 165MOHM SMD Abracon LLC |
5,342 |
|
规格书 |
ASPI-4020S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 1.6A | Shielded | 165mOhm | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
ASPI-0418FS-4R7M-T3FIXED IND 4.7UH 1.7A 84 MOHM SMD Abracon LLC |
3,898 |
|
规格书 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 2A | Shielded | 84mOhm Max | - | 60MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

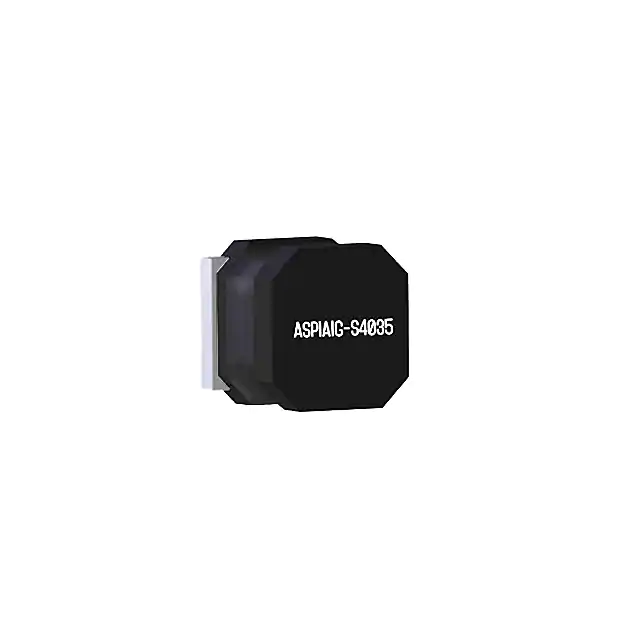

ASPIAIG-S4035-100M-TFIXED IND 10UH 1.85A 140MOHM SMD Abracon LLC |
8,110 |
|
规格书 |
ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.85 A | 2.3A | Shielded | 140mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.146" (3.70mm) |
|
|
ASPI-4030S-470M-TFIXED IND 47UH 720MA 445MOHM SMD Abracon LLC |
6,753 |
|
规格书 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 720 mA | 950mA | Shielded | 445mOhm | - | 8.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
ASPI-4030S-220M-TFIXED IND 22UH 1A 225 MOHM SMD Abracon LLC |
6,488 |
|
规格书 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 1 A | 1.3A | Shielded | 225mOhm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
ASPI-4030S-6R8M-TFIXED IND 6.8UH 1.6A 90 MOHM SMD Abracon LLC |
4,701 |
|
规格书 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 1.6 A | 2.75A | Shielded | 90mOhm | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
