固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

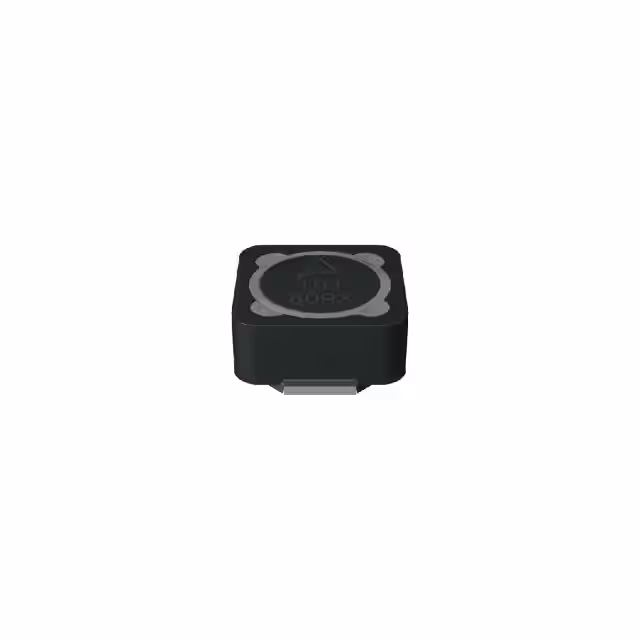

B82477P2153M000FIXED IND 15UH 3.7A 30 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.7 A | 3.3A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
B82477P4684M000FIXED IND 680UH 690MA 1.05OHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 690 mA | 780mA | Shielded | 1.05Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82477P2224M000FIXED IND 220UH 1.15A 300MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.15 A | 800mA | Shielded | 300mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
B82477P2683M000FIXED IND 68UH 1.85A 110MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.85 A | 1.5A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|

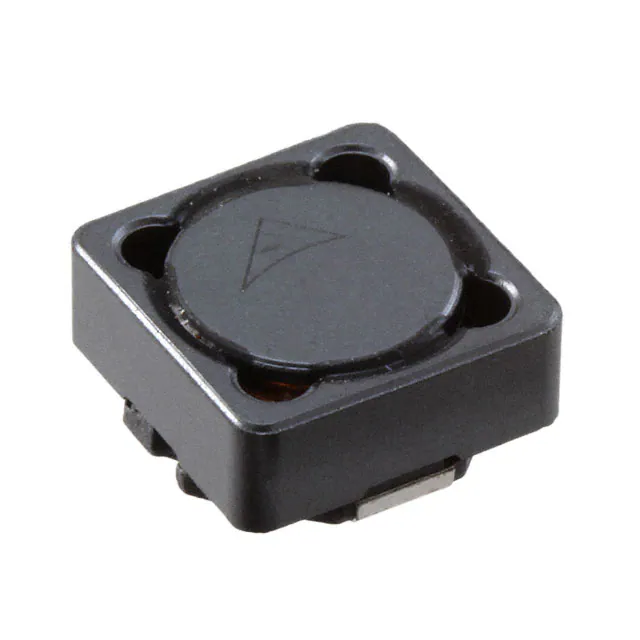

B82464P4684M000FIXED IND 680UH 420MA 1.3OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 460mA | Shielded | 1.3Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

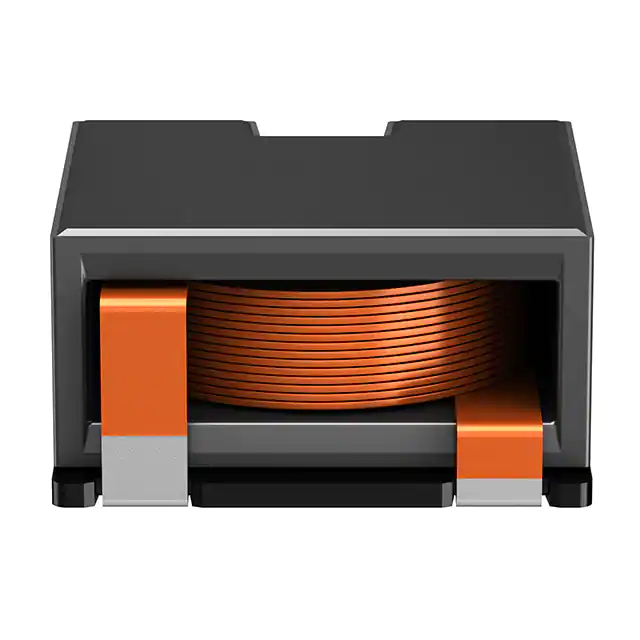

B82559B5332A019FIXED IND 3.3UH 25.1A 2.25 MOHM EPCOS - TDK Electronics |
0 |
|
规格书 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 25.1 A | 35.1A | Shielded | 2.25mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.417" (10.60mm) |
|

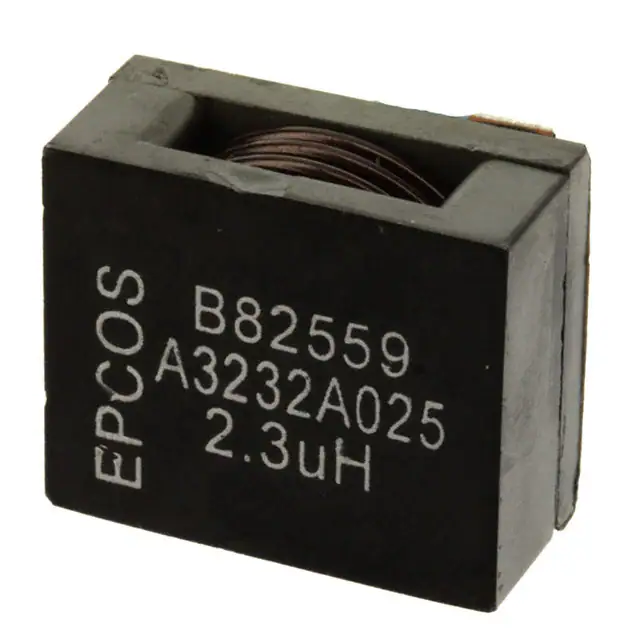

B82559A3232A025FIXED IND 2.3UH 0.6 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.3 µH | ±7% | - | 41A | Shielded | 0.6mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.520" (13.20mm) |
|

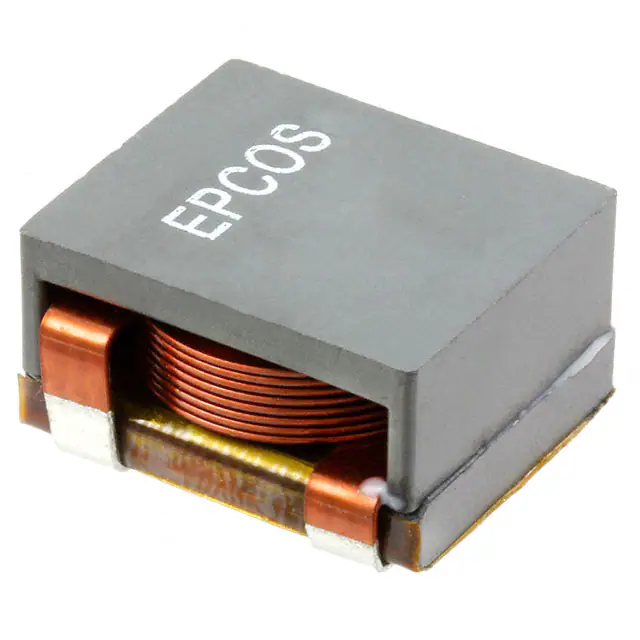

B82559A4472A 20FIXED IND 4.7UH 2.4 MOHM SMD EPCOS - TDK Electronics |
23 |
|
规格书 |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | - | 22A | Shielded | 2.4mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.386" (9.80mm) |
|
B82559A6792A025FIXED IND 7.9UH 2 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 7.9 µH | ±7% | - | 26A | Shielded | 2mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.506" (12.85mm) |
|
B82442T1682K000FIXED IND 6.8UH 1.68A 106MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 1.68 A | 3.7A | Unshielded | 106mOhm Max | 15 @ 7.96MHz | 23MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
