固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82141A1682K000FIXED IND 6.8UH 480MA 430MOHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 480 mA | - | Unshielded | 430mOhm Max | 50 @ 7.96MHz | 40MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
B82432T1684K000FIXED IND 680UH 80MA 23 OHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 80 mA | - | Unshielded | 23Ohm Max | 20 @ 796kHz | 2.6MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
B82442T1333K000FIXED IND 33UH 840MA 360MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 840 mA | 1.7A | Unshielded | 360mOhm Max | 15 @ 2.52MHz | 11MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82559A5332A020FIXED IND 3.3UH 1.5 MOHM SMD EPCOS - TDK Electronics |
11 |
|
规格书 |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | - | 34A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.571" (14.50mm) |
|

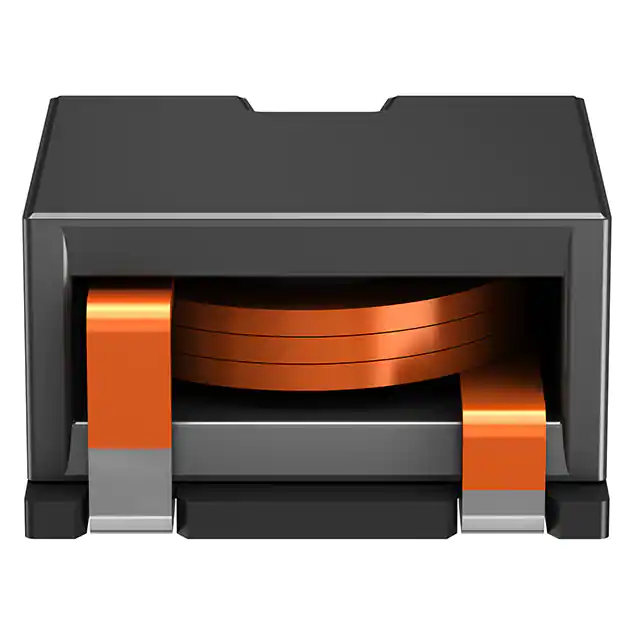

B82559B3222A027FIXED IND 2.2UH 46.5A 0.68 MOHM EPCOS - TDK Electronics |
2 |
|
规格书 |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 46.5 A | 68A | Shielded | 0.68mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.545" (13.85mm) |
|
|
B82559B7103A027FIXED IND 10UH 33A 1.92 MOHM SMD EPCOS - TDK Electronics |
10 |
|
规格书 |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 33 A | 34.8A | Shielded | 1.92mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.679" (17.25mm) |
|
|
B82559B7153A027FIXED IND 15UH 33A 1.92 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 33 A | 22.9A | Shielded | 1.92mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.679" (17.25mm) |
|
B82472G4332M000FIXED IND 3.3UH 2.6A 35 MOHM SMD EPCOS - TDK Electronics |
15 |
|
规格书 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.6 A | 1.9A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
B82479A1683M000FIXED IND 68UH 2.3A 130 MOHM SMD EPCOS - TDK Electronics |
1 |
|
规格书 |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 3.5A | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

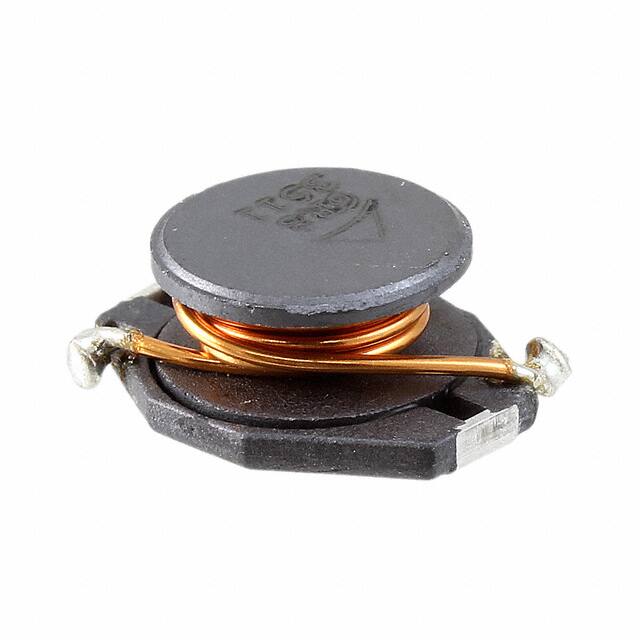

B82476B1682M100FIXED IND 6.8UH 4.8A 21 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.8 A | 4.6A | Unshielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
